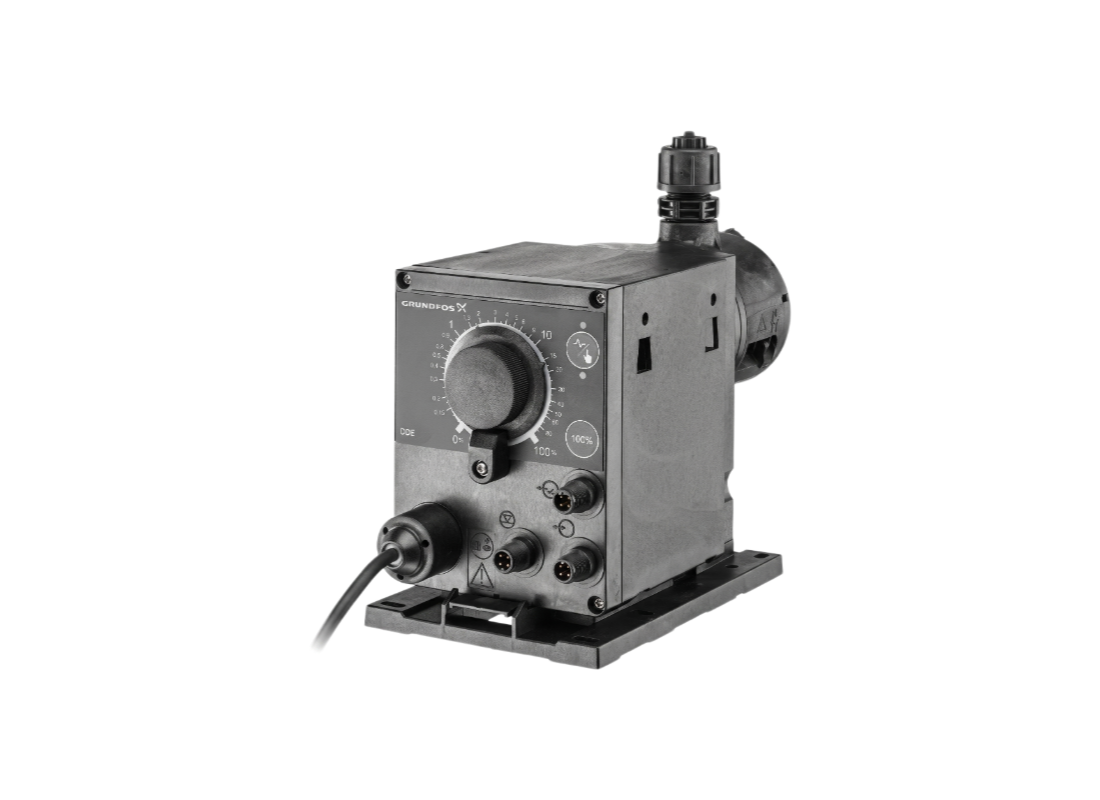

Grundfos DDE 15-4 PVC Scale Knob Control Digital Dosing Pump for Chemical Dosing
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
General chemical dosing tasks requiring a simplified control interface are served by this speed-controlled diaphragm system. This Smart Digital S configuration is intended for applications where reliable manual dosing and high hydraulic efficiency are the primary requirements, providing a cost-effective solution for standard liquid transfer.
Driven by a 19 W motor, the unit operates on a 240v supply and delivers a maximum dosing capacity of 15.0 L/h at a 4 bar maximum pressure. It utilises a 1000:1 turn-down ratio, allowing the operator to adjust the output via a 0.1 - 100% scale knob for precise control over the dosing cycle.
The hydraulic design features stepper motor technology that ensures smooth and continuous dosing. This model includes an auto deaeration function and handles liquids with viscosities up to 50 mPas, ensuring consistent performance with diverse industrial media.
Mechanical integrity is provided by a PVC dosing head and a durable PTFE diaphragm paired with ceramic ball valves. The unit features an IP65 enclosure and handles liquid temperatures up to 45°C. It is supplied with an Australian power plug and standard hose connections for 4/6, 6/9, 6/12, and 9/12 mm tubing.
FEATURES
- Manual control via 0.1 - 100% scale knob for simple on-site dosing adjustment.
- Integrated auto deaeration function prevents gas locks when dosing degassing chemicals.
- 1000:1 turn-down ratio from 15.0 L/h down to 0.015 L/h for precise control.
- Stepper motor technology provides smooth and continuous dosing.
- PVC pump head, PTFE diaphragm and ceramic ball valves for standard media compatibility.
- Handles liquids with viscosities up to 50 mPas.
- Full stroke operation maintains volumetric accuracy under varying backpressure.
- IP65 rated enclosure with Australian power plug and multiple hose connection options.
SPECIFICATIONS
| Max Flow | 0.25 L/Min |
| Max Head | 40 m |
| Power | 0.019 kW / 240v |
| Suitable For | General Purpose Dosing |
| Body Material | PVC |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of power supply does this pump require to run?
Standard power configuration for the Grundfos DDE 15-4 incorporates a 0.019 kW motor on 240 V line feeds.
How deep can this pump be installed underwater in a wet well?
Routine operational thermal ceilings enable the DDE 15-4 to process liquids up to 45 °C.
What maximum vertical water column can this pump maintain?
Vertical elevation capability on the DDE-15-4 reaches a maximum dynamic head of approximately 40.0 m under rated conditions.
What discharge flow rate does this pump maintain during peak operation?
Fluid evacuation capacity for the DDE 15 4 peaks at approximately 0.25 L/Min, providing dependable high-volume drainage.
What everyday water supply duties are best performed by this pump?
Everyday water management duties for the DDE/15/4 focus on Chemical resilience on the B-PVCTC-X-31U2U2IG is governed by high-purity PVC wetted parts, facilitating safe containment without degradation, providing reliable pumping performance.
