SKU: 97721204

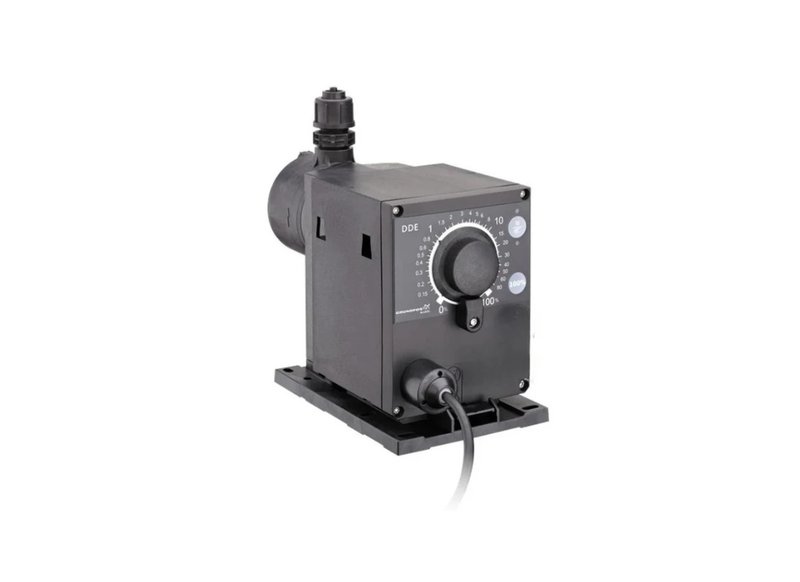

Grundfos DDE 6-10 B Diaphragm Digital Dosing Pump with Manual Speed Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos DDE 6-10 B SMART Digital Dosing Pump is a compact, high-precision diaphragm dosing pump designed for reliable chemical dosing in water treatment, industrial processing and general metering applications.
Featuring an internal stepper motor drive and intelligent control electronics, the DDE series delivers smooth, continuous dosing across its full capacity range. The pump operates at full stroke length with variable stroke frequency, ensuring accurate dosing, excellent priming performance and consistent suction – even with degassing liquids.
This "B" variant provides simple manual control via a logarithmic adjustment dial from 0.1–100%, making it ideal for straightforward dosing systems that require dependable, accurate chemical injection without complex external control inputs.
FEATURES- Maximum flow: 6 L/h
- Maximum pressure: 10 bar
- Turn-down ratio: 1:1000
- Manual speed control (0.1–100%)
- Internal stepper motor drive
- Full stroke length dosing for high accuracy
- Double ball valves for precise metering
- Integrated deaeration valve for easy start-up
- Compact wall-mount design
- IP65 / TYPE 4X enclosure rating
- Low power consumption (19 W)
- PP dosing head with PTFE diaphragm
- Hose connection inlet and outlet
SPECIFICATIONS
| Max Flow | 6 L/Hour |
| Max Head | 100 m |
| Power | 0.19 kW / 240v |
| Suitable For | Chemical Dosing / Water Treatment |
| Body Material | Polypropylene (PP) |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | Hose Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Outlet Size | Hose Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and vertical lift can I get from this pump?
Output across system pipework enables the Grundfos DDE 6-10 B Diaphragm to deliver up to standard capacity in flow and a maximum head of 100 m, depending on your pipe layout.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the DDE 6-10 B Diaphragm delivers 0.19 kW on a 240v line drawing 0.1 Amps.
What materials are used to construct the pump casing and impeller?
Built with a resilient Polypropylene body, the DDE-6-10-B-Diaphragm maintains material durability against fluid abrasion and wear.
What property water management tasks match this pump?
Routine operational tasks matching the DDE 6 10 B Diaphragm encompass precision chemical metering, pH neutralization dosing, and accurate water treatment injection across connected networks.
How many years of warranty coverage come with this Grundfos pump?
Grundfos backs the DDE/6/10/B/Diaphragm with an official 2 Years warranty, offering reliable coverage and factory technical support.
