SKU: 98147413

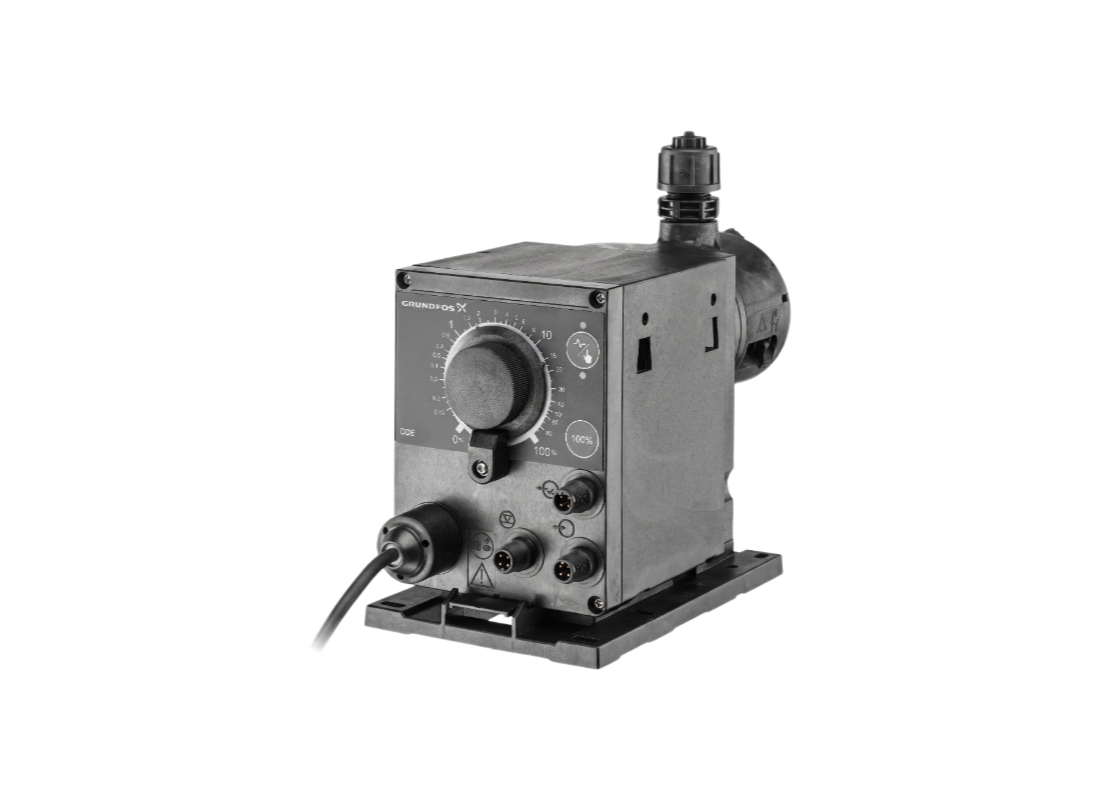

Grundfos DDE 6-10 PVC Pulse Control Digital Dosing Pump for Chemical Dosing
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Automated dosing cycles triggered by water meters or external control signals are the primary role for this pulse-capable configuration. This Smart Digital S unit is intended for properties and plants that require a balance of manual flexibility and digital pulse control for synchronised chemical injection.
Powered by a 19 W motor, the pump achieves a 10.0 bar maximum operating pressure with a peak flow rate of 6.0 L/h. It features a 1000:1 turn-down range and incorporates pulse input and remote On/Off operation modes, allowing for integration with external monitoring equipment.
The hydraulic assembly utilises a stepper motor to produce smooth and continuous dosing. The inclusion of chemical pre-empty and empty level inputs prevents the system from running dry, while the potential-free output relays provide immediate alarm signalling for low chemical levels or system faults detected in the process cycle.
Structural durability is ensured by a PVC dosing head and PTFE wetted parts designed for standard chemical compatibility. The assembly is rated for liquid temperatures up to 45°C and includes an IP65 rated enclosure for reliable indoor service. This model is supplied with an Australian power plug and standard hose connections, and includes two potential-free output relays for alarm signalling or integration with external control systems.
FEATURES
- Pulse control mode enables synchronised dosing based on external signals or water meter counts.
- Remote On/Off operation for integration with external control systems.
- Chemical pre-empty and empty level inputs for dry-run protection.
- 1000:1 turn-down ratio from 6.0 L/h down to 0.006 L/h for precise volumetric control.
- Stepper motor drive provides smooth and continuous dosing.
- Manual adjustment via 0.1-100% scale knob for on-site configuration.
- Two potential-free output relays for external alarm integration and system status reporting.
- IP65 rated enclosure with Australian power plug and standard hose connections.
SPECIFICATIONS
| Max Flow | 0.1 L/Min |
| Max Head | 100 m |
| Power | 0.019 kW / 240v |
| Suitable For | Automated Chemical Injection |
| Body Material | PVC |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What water temperature range and installation depth are supported?
Routine operational thermal ceilings enable the Grundfos DDE 6-10 to process liquids up to 45 °C.
How high can this pump lift water vertically?
Vertical elevation capability on the DDE 6-10 reaches a maximum dynamic head of approximately 100.0 m under rated conditions.
What maximum flow rate does this pump achieve during heavy influx?
Fluid evacuation capacity for the DDE-6-10 peaks at approximately 0.1 L/Min, providing dependable high-volume drainage.
Is the pump body built to withstand harsh and corrosive liquids?
Manufactured with quality materials, the DDE 6 10 incorporates PVC for dependable longevity and resistance to fluid erosion.
How much power does the motor consume during standard operation?
Operating on 240 V supply, the DDE/6/10 is driven by a 0.019 kW electric motor.
