SKU: 99246457

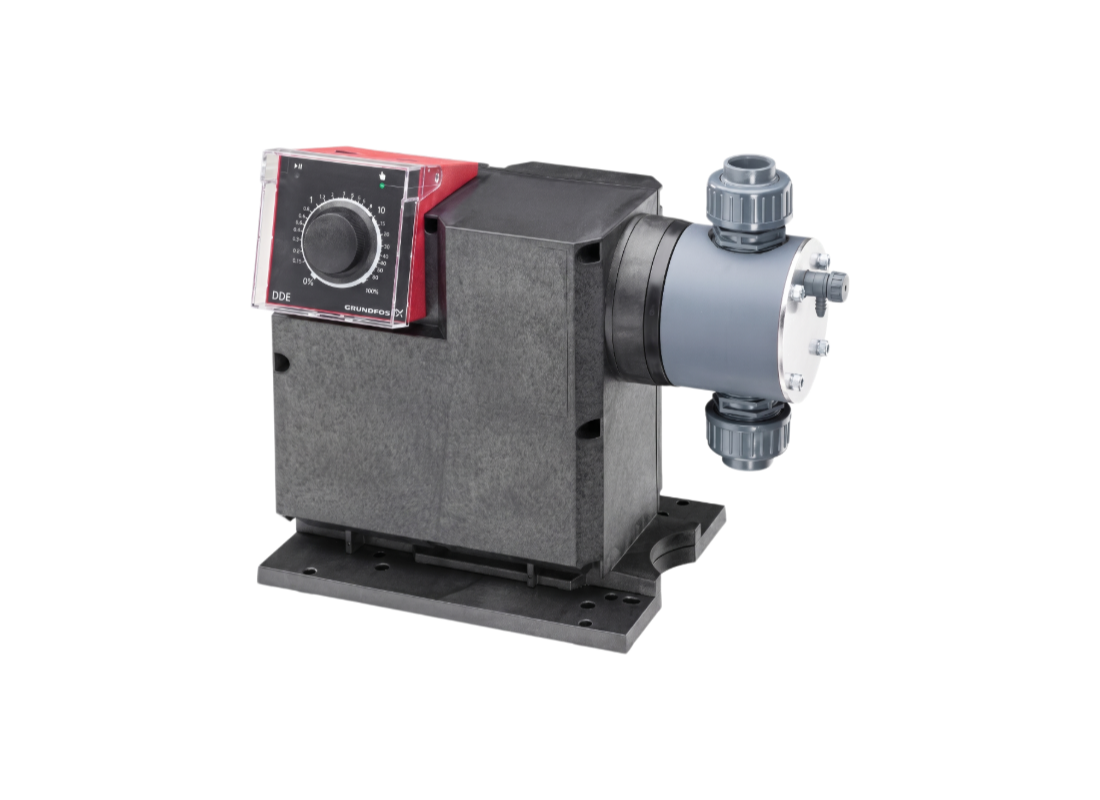

Grundfos DDE 60-10 PVC Scale Knob Control Digital Dosing Pump for Water Treatment
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
General chemical transfer tasks in water treatment requiring a simplified manual interface are served by this speed-controlled diaphragm system. This Smart Digital XL configuration is intended for applications where reliable dosing and high hydraulic throughput are the primary requirements.
Driven by a 62 W motor operating on 240v, the unit produces a maximum flow rate of 60.0 L/h against 10 bar maximum backpressure. It utilises an 800:1 turn-down ratio, allowing the operator to adjust the output via a 0.15 - 100% scale knob for precise control over the high-volume dosing cycle.
The hydraulic design features stepper motor technology that ensures smooth and continuous dosing. This basic control variant focuses on consistent performance and ease of operation, making it a dependable solution for set-and-forget industrial dosing duties.
Mechanical durability is provided by a PVC dosing head and durable PTFE gaskets paired with ceramic ball valves for reliable chemical resistance. Housed in an IP65 enclosure, the unit handles liquid temperatures up to 40°C and is supplied with U3 connection packs for sustained industrial service.
FEATURES
- Manual control via 0.15 - 100% scale knob for simple on-site dosing adjustment.
- Full stroke operation maintains volumetric accuracy under varying backpressure.
- 800:1 turn-down ratio from 60.0 L/h down to 0.075 L/h for precise control.
- Stepper motor technology provides smooth and continuous dosing.
- PVC pump head, PTFE gaskets and ceramic ball valves for standard chemical resistance.
- IP65 rated enclosure for protection against dust and water ingress.
- U3 connection packs for easy installation with standard pipe systems.
- 100-240v voltage compatibility for installation across various site power supplies.
SPECIFICATIONS
| Max Flow | 1 L/Min |
| Max Head | 100 m |
| Power | 0.062 kW / 240v |
| Suitable For | General Purpose Dosing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 19, 20, 25, 27 mm |
| Outlet Size | 19, 20, 25, 27 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this pump push fluid through discharge risers?
Dynamic lift generated by the Grundfos DDE 60-10 reaches a maximum elevation head of approximately 100.0 m across discharge lines.
What is the maximum flow capacity of this pump per minute?
Displacing fluid into connected headers, the DDE 60-10 sustains up to 1.0 L/Min of volumetric throughput.
What metallurgy is selected for the pump body to resist abrasive wear?
Durable PVC construction gives the DDE-60-10 exceptional structural strength and long-term protection against corrosive fluids.
What voltage supply and motor power does this pump need?
Powered by an efficient 0.062 kW motor, the DDE 60 10 operates on 240 V electrical feeds.
What liquid temperatures can this pump tolerate during standard operation?
Operating comfortably across temperatures up to 40 °C, the DDE/60/10 supports diverse fluid circuits.
