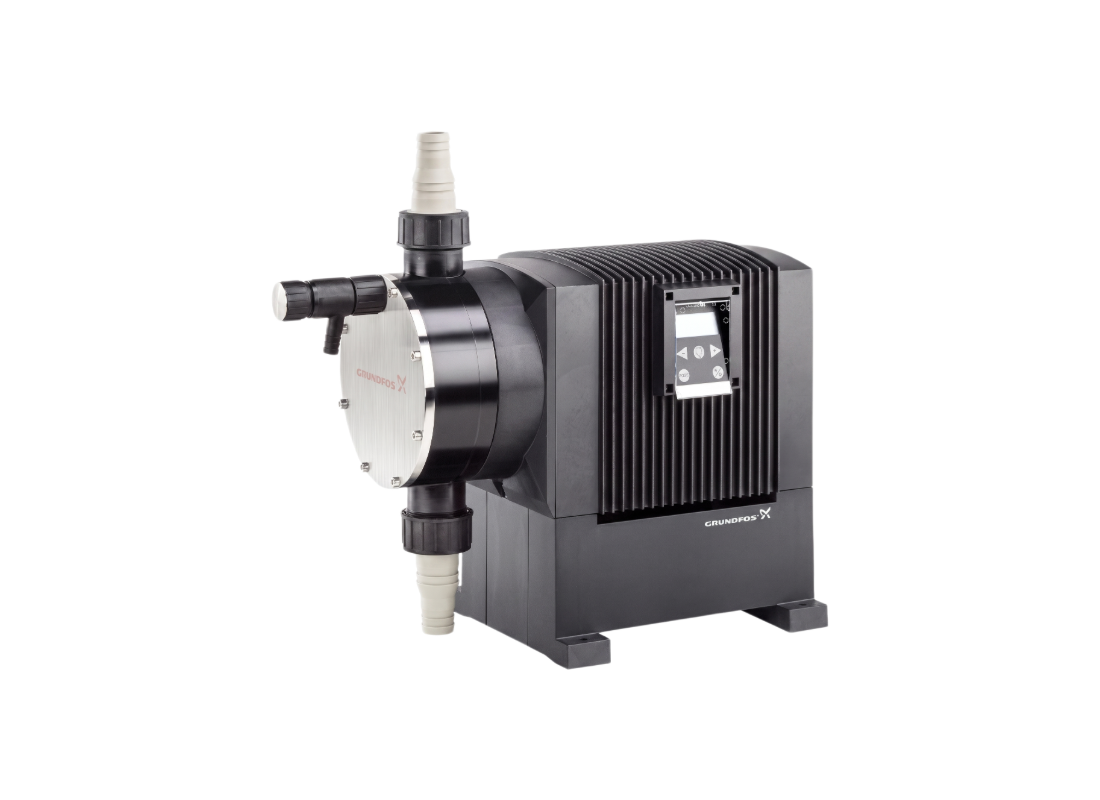

Grundfos DME 940-4AR Composite Leak Detection Digital Dosing Pump for Water Treatment with Variable Stroke Speed
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Handling highly aggressive media at high volumes in water treatment and large scale industrial plants requires the increased hydraulic capacity of this PVDF configuration. This DME AR unit is intended for users who need to move up to 940 litres per hour with the maximum possible material compatibility to ensure consistent dosing accuracy in heavy industrial service.
The system is driven by a 240 W motor operating on 240v, delivering a maximum dosing capacity of 940 L/h at a 4 bar maximum operating pressure. It achieves an 800:1 turn-down ratio, enabling the system to precisely scale down to a minimum flow of 1.18 L/h without losing the accuracy of the volumetric output during bulk transfer duties.
The electronically controlled motor with variable stroke speed provides smooth and continuous dosing with reduced pulsation across the operating range. The inclusion of a diaphragm leak detector and chemical pre-empty and empty level inputs prevents process interruptions, while the potential-free output relays provide immediate signalling for system alarms.
Mechanical integrity is provided by a chemically resistant PVDF pump head and durable FKM gaskets paired with glass ball valves suitable for aggressive media. The unit includes integrated connectivity for process integration, is housed in a robust IP65 enclosure, and handles liquid temperatures up to 45°C (PVDF).
FEATURES
- AR control variant with manual, pulse and analog 0/4-20mA operation and alarm relay.
- Diaphragm leak detector and pre-empty/empty level inputs for system protection.
- 800:1 turn-down ratio from 940 L/h down to 1.18 L/h for precise control.
- Electronically controlled motor with variable stroke speed for smooth and continuous dosing.
- PVDF pump head and FKM gaskets for resistance against aggressive chemicals.
- Digital control panel with operating display for configuration and monitoring.
- IP65 rated enclosure protects internal electronics in industrial installations.
- Rp 1 1/4" threaded ports for high-capacity system integration.
SPECIFICATIONS
| Max Flow | 15.66 L/Min |
| Max Head | 40 m |
| Power | 0.24 kW / 240v |
| Rated Current | 2.4-1.0 Amps |
| Suitable For | Industrial Chemical Transfer |
| Body Material | PVDF |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 32 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak delivery flow rate in liters per minute does this high capacity dosing assembly attain?
Evacuating liquid additives across 32 mm fittings, the DME 940-4AR produces a maximum delivery flow volume of approximately 15.66 L/Min (940 L/h).
How does the wetted polypropylene material construction withstand abrasive chemical attack?
Internal chemical passage on the Grundfos DME 940-4AR is optimized with PVDF wetted materials supporting harsh industrial reagents.
How much electrical current in amps and what motor kilowatt power operate this high capacity drive?
Electric drive specifications certified for the DME-940-4AR establish a power rating of 0.24 kW (240 W) on 240 V drawing a rated current of 2.4-1.0 Amps.
What maximum operating pressure in bar and liquid temperature limit apply during chemical transfer?
Equipped with robust pressure containment, the Grundfos DME 940 4AR operates at pressures up to 4 bar across temperatures up to 45 °C.
What peak dynamic head push is certified for this high throughput dosing system?
Elevating fluid across industrial distribution manifolds, the DME 940-4AR PVVG-F-31A2A2I provides a maximum dynamic head rating of approximately 40.0 m.
