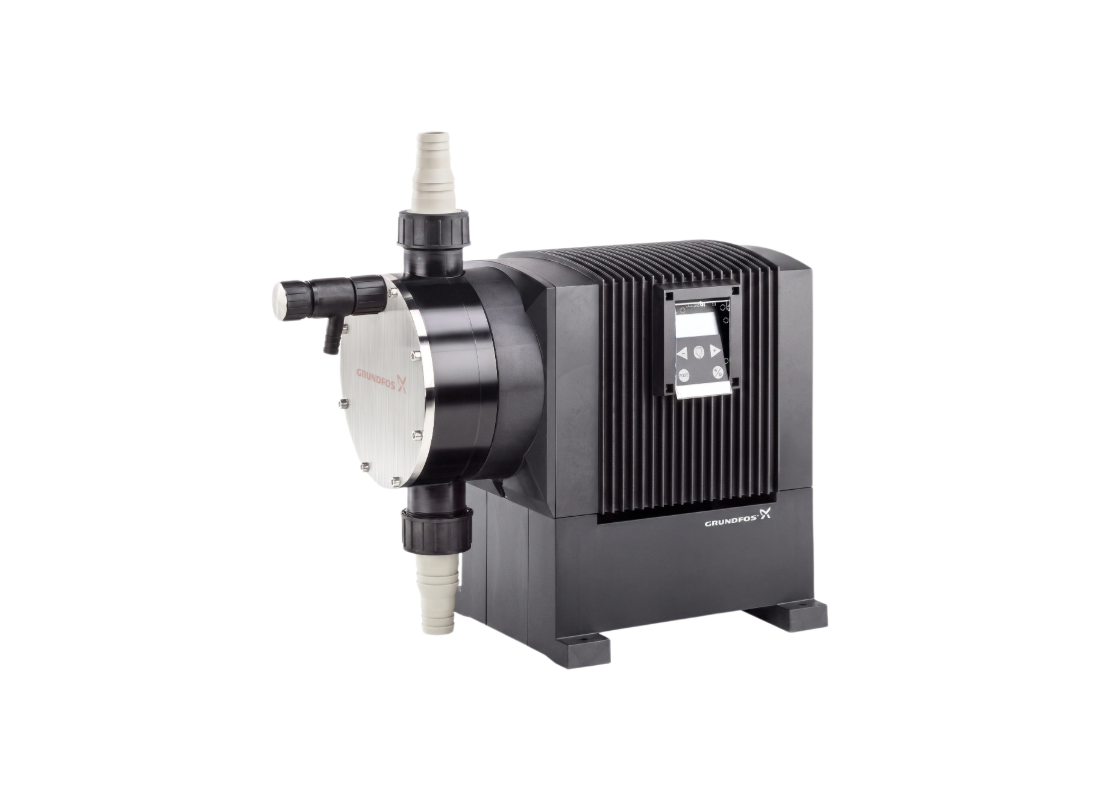

Grundfos DME 940-4AR Polypropylene Digital Dosing Pump for Wastewater Chemical Dosing with Variable Stroke Speed
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Automated industrial chemical dosing requiring high dosing capacity defines the role of this peak-capacity DME configuration in the industrial series. This system is engineered for industrial users who need to move up to 940 litres per hour of process chemicals with digital speed control and integrated system feedback to support reliable operation.
Powered by a 240 W single-phase motor, the unit produces a maximum dosing capacity of 940 L/h at a 4 bar maximum operating pressure. It utilises an 800:1 turn-down ratio, which provides consistent volumetric accuracy from its peak flow rate down to a precise minimum of 1.18 L/h to match site specific chemical needs at large scale.
The electronically controlled motor with variable stroke speed produces smooth and continuous dosing with reduced pulsation. This model incorporates integrated diaphragm leak detection and AR control functionality for manual, pulse, and analog modes, ensuring chemical delivery corresponds to the available system demands.
Structural integrity is ensured by a rugged Polypropylene dosing head and durable FKM gaskets paired with glass ball valves. Connectivity is enhanced with an integrated alarm relay and inputs for low-level chemical signals. Housed in an IP65 enclosure, the unit handles liquid temperatures up to 50°C and includes high-capacity Rp 1 1/4" threaded ports.
FEATURES
- AR control variant with manual, pulse and analog 0/4-20mA operation and alarm relay.
- Integrated diaphragm leak detector and low-level inputs for process protection.
- 800:1 turn-down ratio from 940 L/h down to 1.18 L/h for precise flow control.
- Electronically controlled motor with variable stroke speed for smooth and continuous dosing.
- Polypropylene pump head, FKM gaskets and glass ball valves for chemical resistance.
- Digital control panel with operating display for configuration and monitoring.
- IP65 rated enclosure for protection in challenging site environments.
- Rp 1 1/4" threaded ports for high-capacity system integration.
SPECIFICATIONS
| Max Flow | 15.66 L/Min |
| Max Head | 40 m |
| Power | 0.24 kW / 240v |
| Rated Current | 2.4-1.0 Amps |
| Suitable For | Bulk Chemical Transfer |
| Body Material | Polypropylene |
| Liquid Temperature | Maximum 50°C |
| Inlet Size | 32 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this pump push fluid through discharge risers?
Pumping performance for the Grundfos DME 940-4AR provides up to 40.0 m of vertical dynamic lift, depending on system friction and line sizing.
What is the maximum flow capacity of this pump per minute?
Moving liquid through the system, the DME 940-4AR maintains an operational throughput of up to 15.66 L/Min during peak demand.
Is the pump body built to withstand harsh and corrosive liquids?
Built with a resilient Polypropylene body, the DME-940-4AR maintains material durability against fluid abrasion and wear.
What voltage supply and motor power does this pump need?
Connecting across 240 V lines, the DME 940 4AR draws approximately 1.0 Amps with an efficient 0.24 kW motor.
How deep can this pump be submerged underwater?
Fluid media ranging up to 50 °C can be circulated through the DME/940/4AR without thermal breakdown.
