SKU: 99587819

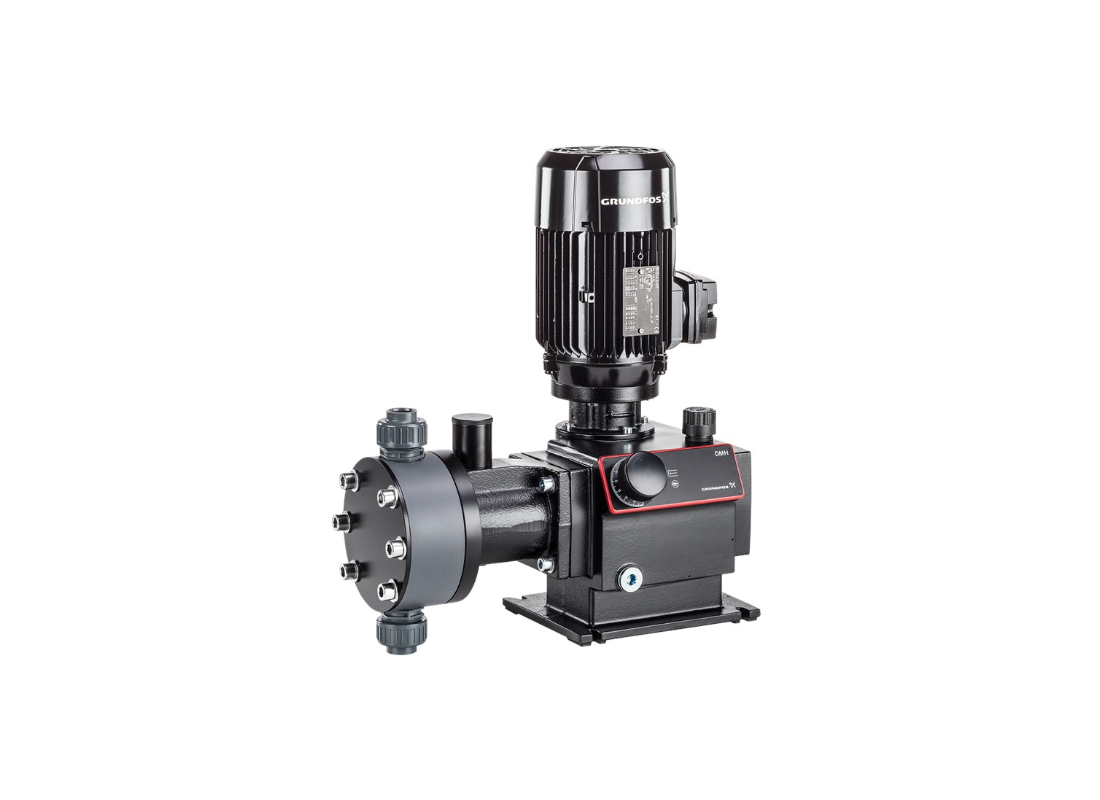

Grundfos DMH 213-10 Aluminium FKM 3-Phase High Pressure Dosing Pump for Process Water with Hydraulic Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Higher flow high pressure dosing is addressed by the DMH 213-10 hydraulic piston diaphragm pump from Grundfos. Pressure relief valve and diaphragm protection ensure elevated pressure operation.
At 50 Hz, the DMH 213-10 delivers 213 L/h maximum dosing capacity at 10 bar pressure. A 0.60 kW motor with 3 x 415v supply powers the unit. Hydraulic piston diaphragm design provides smooth flow characteristics. Temperature range is 0 to 40°C.
PVC dosing head construction on the DMH 213-10 incorporates ceramic valve balls and FKM gaskets. Standard non-return valves are fitted on both connections. Manual stroke adjustment from 5-100% provides 20:1 turndown ratio.
IP55 enclosure with aluminium housing protects the DMH 213-10. G5/4 connections accommodate 19/27 and 20/25 mm connections.
FEATURES
- Manual stroke length control with 20:1 turndown ratio from 5-100% adjustment
- 0.60 kW motor for higher flow capacity at elevated pressures
- Built-in pressure relief valve for system overpressure protection
- Diaphragm protection system prevents damage from overpressure
- Hydraulic piston diaphragm design for smooth flow characteristics
- FKM gaskets for industrial chemical compatibility
- IP55 enclosure class for dust and water jet protection
SPECIFICATIONS
| Max Flow | 3.55 L/Min |
| Max Head | 102 m |
| Power | 0.6 kW / 415v |
| Suitable For | Chemical Processing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Hose Connection (19/27 mm) |
| Outlet Size | Hose Connection (19/27 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Displacing fluid into connected headers, the Grundfos DMH 213-10 sustains up to 3.55 L/Min of volumetric throughput.
What primary fluid transfer and circulation roles are designated for this pump?
Primary tasks for the DMH 213-10 include Internal chemical passage on the is optimized with aluminium and PVC with FKM wetted materials supporting harsh heavy-duty reagents, delivering efficient water management across residential and rural systems.
What are the power requirements and running amperage for this pump?
Powered by an efficient 0.6 kW motor, the DMH-213-10 operates on 415 V electrical feeds.
What liquid temperatures can this pump tolerate during standard operation?
Operating comfortably across temperatures up to 40°C, the DMH 213 10 supports diverse fluid circuits.
What is the maximum vertical lift capacity of this pump?
Under rated operating head, the DMH/213/10 can lift water to a maximum dynamic head of approximately 102 m through vertical risers.
