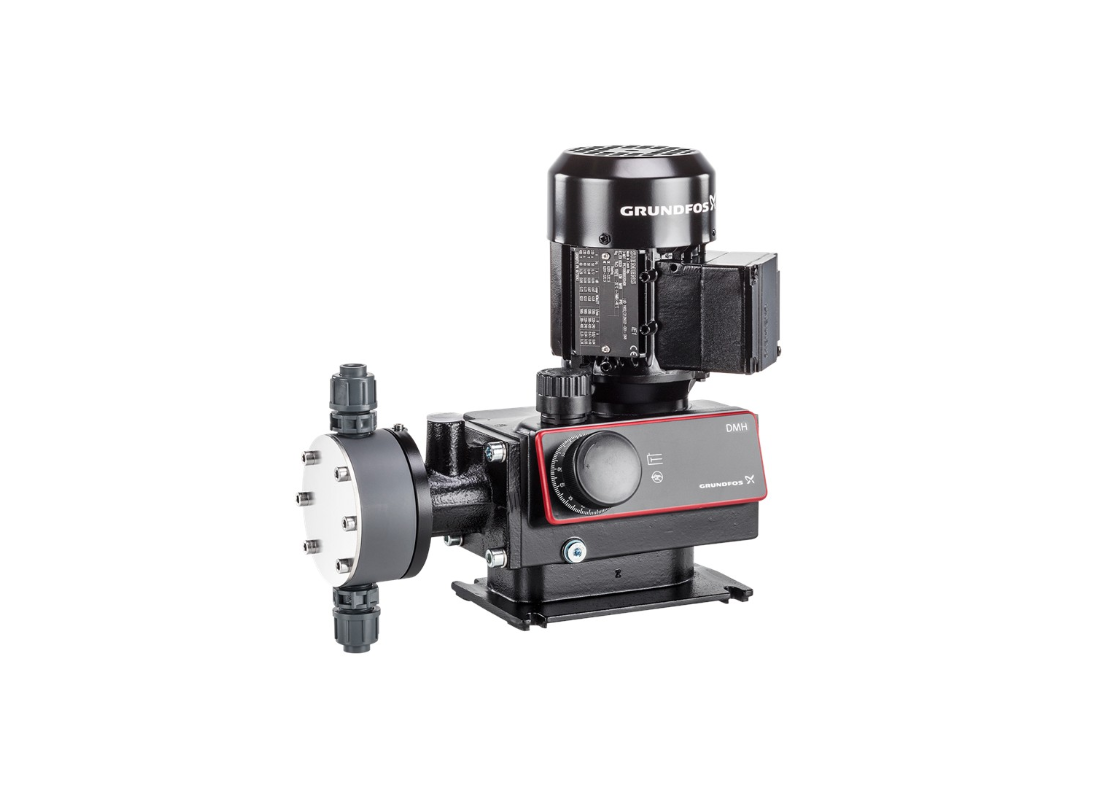

Higher capacity high pressure dosing is served by the DMH 36-16 hydraulic piston diaphragm pump. Grundfos designed this unit with pressure relief valve and diaphragm protection for high pressure operation.
The DMH 36-16 delivers 36 L/h maximum dosing capacity at 16 bar pressure with 50 Hz operation. A 0.20 kW motor on 3 x 415v supply powers the unit. Hydraulic piston diaphragm design yields smooth flow characteristics. Temperature range spans -10 to 20°C.
PVDF construction with ceramic balls and PTFE gaskets features in the DMH 36-16 dosing head. Standard non-return valves are installed on both connections. Stroke adjustment from 5-100% provides 20:1 turndown ratio.
IP65 enclosure with aluminium housing protects the DMH 36-16. G5/8 connections accept 4/6, 6/9, 6/12, and 9/12 mm tubing.
FEATURES
- Manual stroke length control with 20:1 turndown ratio from 5-100% adjustment
- 0.20 kW motor for increased flow capacity at elevated pressures
- Built-in pressure relief valve for system overpressure protection
- Diaphragm protection system prevents damage from overpressure
- Hydraulic piston diaphragm design for smooth flow characteristics
- PVDF dosing head construction for corrosion resistance
- IP65 enclosure class for environmental protection
