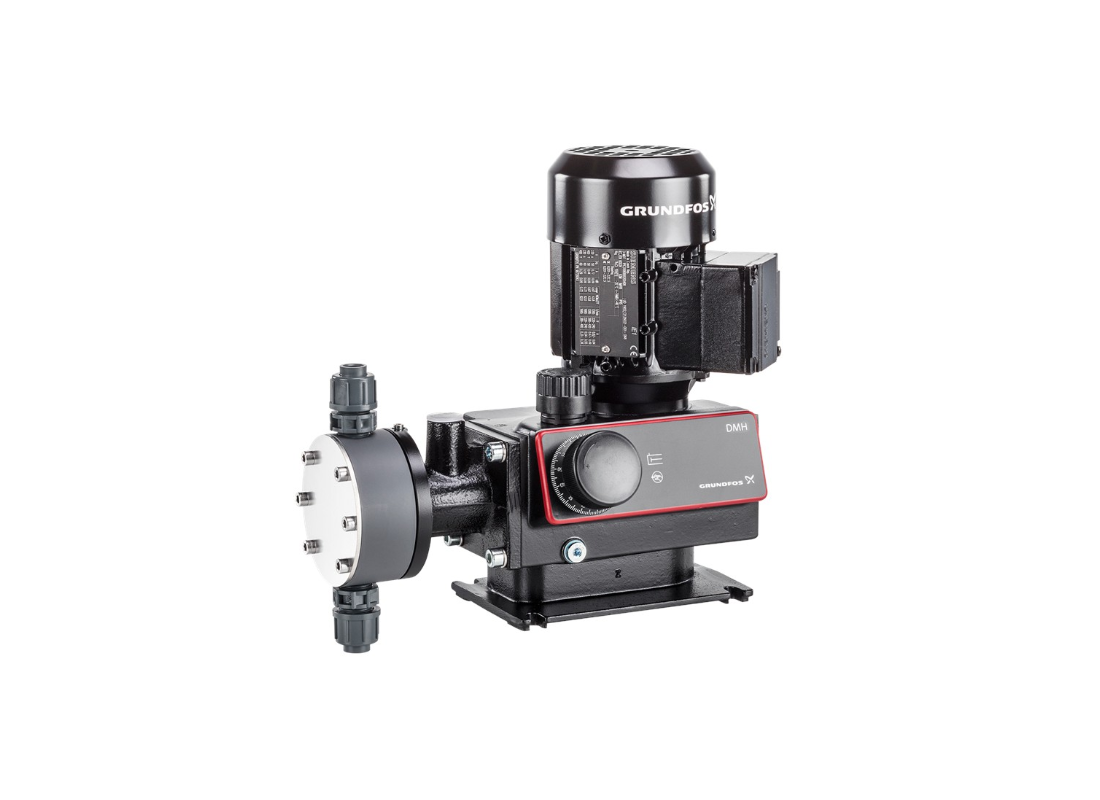

Grundfos DMH 37-10 Aluminium PTFE 3-Phase High Pressure Dosing Pump for Power Generation with Hydraulic Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High pressure water treatment applications are addressed by the DMH 37-10 hydraulic piston diaphragm pump. Grundfos equipped this unit with pressure relief valve and diaphragm protection for high pressure operation.
At 50 Hz, the DMH 37-10 delivers 37 L/h maximum dosing capacity at 10 bar pressure. A 0.09 kW motor with 3 x 415v supply powers the unit. Hydraulic piston diaphragm design provides smooth flow characteristics. Extended temperature range is -10 to 60°C.
PVDF dosing head construction on the DMH 37-10 incorporates ceramic valve balls and PTFE gaskets. Standard non-return valves are fitted on both connections. Manual stroke adjustment from 5-100% provides 20:1 turndown ratio.
IP65 enclosure with aluminium housing protects the DMH 37-10. G5/8 connections accommodate 4/6, 6/9, 6/12, and 9/12 mm tubing.
FEATURES
- Manual stroke length control with 20:1 turndown ratio from 5-100% adjustment
- Extended temperature range from -10 to 60°C
- Built-in pressure relief valve for system overpressure protection
- Diaphragm protection system prevents damage from overpressure
- Hydraulic piston diaphragm design for smooth flow characteristics
- PVDF dosing head construction for corrosion resistance
- IP65 enclosure class for environmental protection
SPECIFICATIONS
| Max Flow | 0.62 L/Min |
| Max Head | 102 m |
| Power | 0.09 kW / 415v |
| Suitable For | High Pressure Water Treatment |
| Body Material | PVDF |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | Tube Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Outlet Size | Tube Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
Fluid elevation through vertical risers reaches up to 102 m with the Grundfos DMH 37-10 under standard duty points.
How much fluid throughput does this pump move under full load?
Discharge throughput on the DMH 37-10 reaches a maximum flow rate of approximately 0.62 L/Min under standard operating conditions.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the DMH-37-10 are crafted from high-grade PVDF to maintain physical integrity and resist abrasive wear.
What electrical voltage and motor kilowatt output drive this unit?
Electrical specifications for the DMH 37 10 feature a 0.09 kW motor running on 415 V power.
Can this pump operate in warm or hot water without overheating?
Liquid operating limits establish that the DMH/37/10 accommodates temperatures up to 60°C during standard duties.
