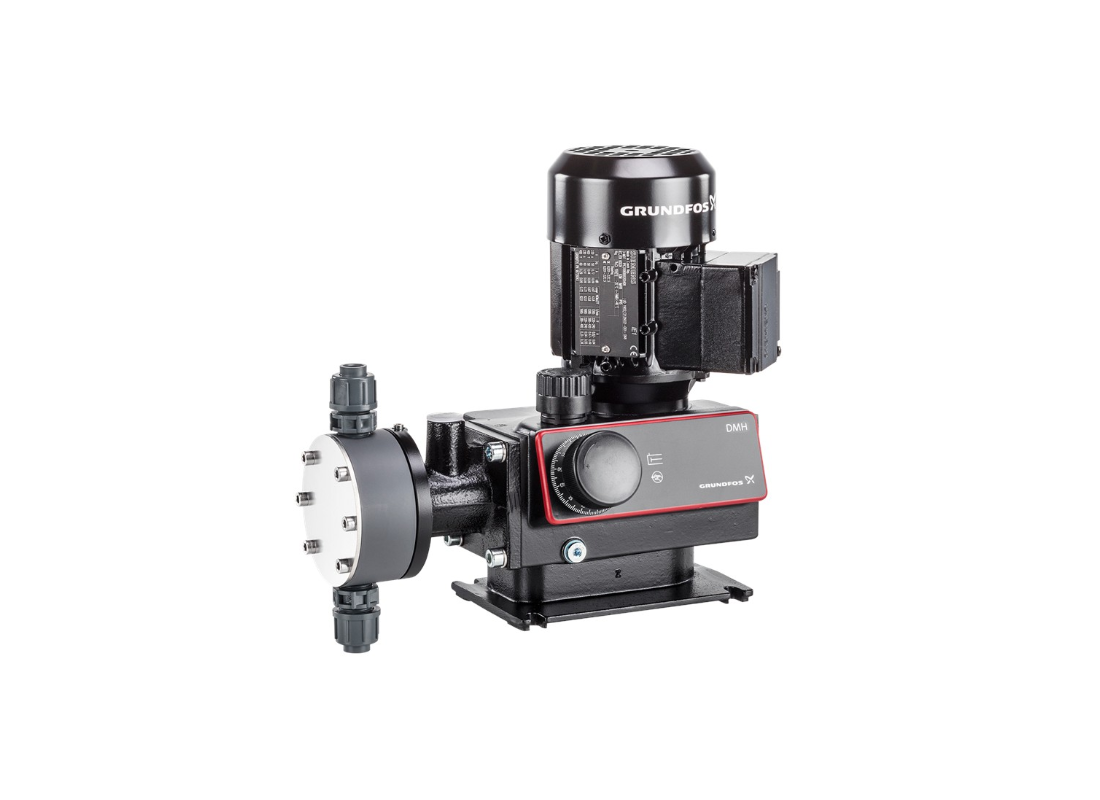

Grundfos DMH 45-16 Aluminium PTFE 3-Phase High Pressure Dosing Pump for Industrial Water Treatment with Hydraulic Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Higher capacity high pressure dosing is served by the DMH 45-16 hydraulic piston diaphragm pump from Grundfos. Pressure relief valve and diaphragm protection ensure operation at elevated pressures.
The DMH 45-16 provides 45 L/h maximum dosing capacity at 16 bar pressure with 50 Hz operation. A 0.20 kW motor on 3 x 415v supply powers the unit. Hydraulic piston diaphragm design yields smooth flow characteristics. Temperature range spans -10 to 20°C.
PVDF construction with ceramic balls and PTFE gaskets features in the DMH 45-16 dosing head. Standard non-return valves are installed on both connections. Stroke adjustment from 5-100% provides 20:1 turndown ratio.
IP65 enclosure with aluminium housing protects the DMH 45-16. G5/8 connections accept 4/6, 6/9, 6/12, and 9/12 mm tubing.
FEATURES
- Manual stroke length control with 20:1 turndown ratio from 5-100% adjustment
- 0.20 kW motor for increased flow capacity at elevated pressures
- Built-in pressure relief valve for system overpressure protection
- Diaphragm protection system prevents damage from overpressure
- Hydraulic piston diaphragm design for smooth flow characteristics
- PVDF dosing head construction for corrosion resistance
- IP65 enclosure class for environmental protection
SPECIFICATIONS
| Max Flow | 0.75 L/Min |
| Max Head | 163.2 m |
| Power | 0.2 kW / 415v |
| Suitable For | High Pressure Dosing |
| Body Material | PVDF |
| Liquid Temperature | Maximum 20°C |
| Inlet Size | Tube Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Outlet Size | Tube Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid can this pump evacuate during peak demand?
Discharge throughput on the Grundfos DMH 45-16 reaches a maximum flow rate of approximately 0.75 L/Min under standard operating conditions.
What materials make this pump durable against corrosion and wear?
Wetted components on the DMH 45-16 are crafted from high-grade PVDF to maintain physical integrity and resist abrasive wear.
How much electricity and current does this pump draw under load?
Electrical specifications for the DMH-45-16 feature a 0.2 kW motor running on 415 V power.
What are the maximum installation depth and liquid temperature boundaries?
Liquid operating limits establish that the DMH 45 16 accommodates temperatures up to 20°C during standard duties.
What total dynamic head can this pump overcome in vertical pipework?
Dynamic lift generated by the DMH/45/16 reaches a maximum elevation head of approximately 163.2 m across discharge lines.
