SKU: 99206081

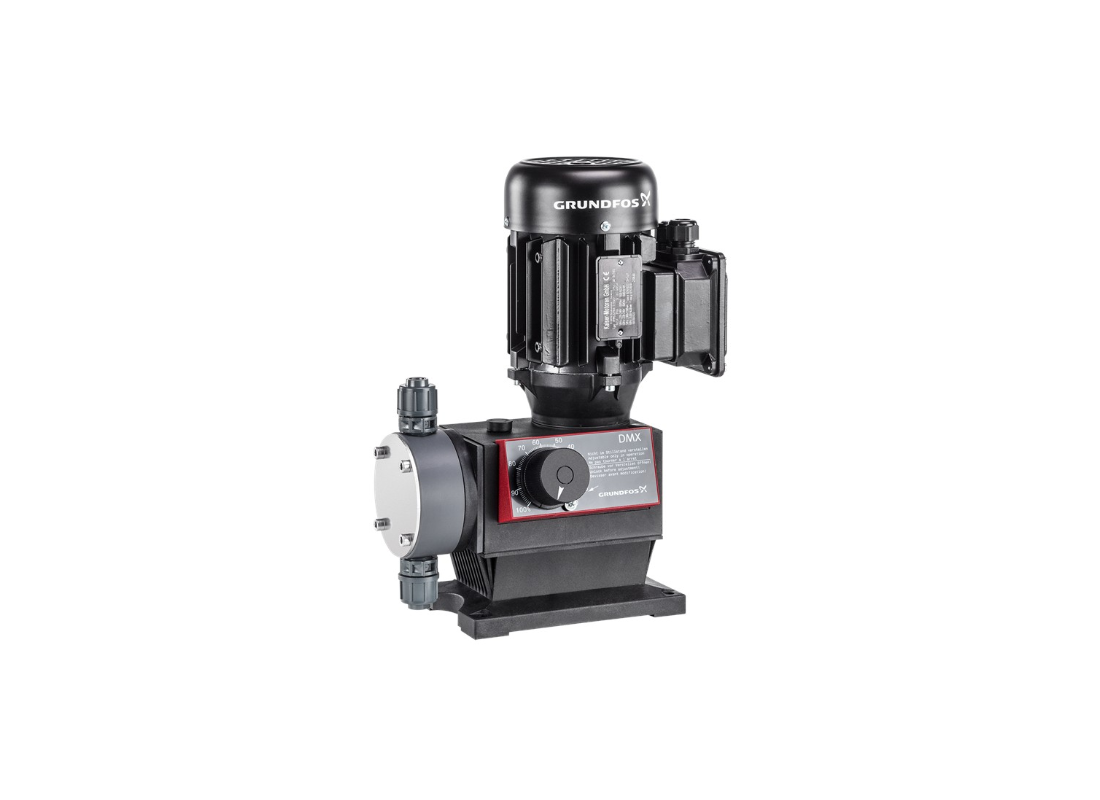

Grundfos DMX 115-3 Thermoplastic EPDM 1-Phase Dosing Pump for Ultrafiltration with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Water treatment applications requiring higher flow rates are served by the DMX 115-3 mechanical diaphragm dosing pump from Grundfos. Manual stroke length adjustment from 10-100% gives a 10:1 turndown ratio for dosing rate control.
At 50 Hz operation, the DMX 115-3 delivers 115 L/h maximum dosing capacity at 3 bar maximum pressure. A 0.09 kW motor with 1 x 240v supply powers this unit. Dosing flow variation is maintained at less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure. Suction lift during operation is 1 metre.
Thermoplastic dosing head construction on the DMX 115-3 incorporates ceramic valve balls and EPDM gaskets. Standard non-return valves are fitted on both connections. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
Aluminium gear housing with IP65 enclosure protects the DMX 115-3. G5/4 connections accommodate 19/27 and 20/25 mm connections.
FEATURES
- Stroke length adjustment from 10-100% of maximum
- EPDM gaskets for water treatment compatibility
- Standard non-return valves on suction and discharge
- PTFE-coated diaphragm for chemical resistance
- IP65 enclosure rating for environmental protection
- G5/4 connections for 19/27 and 20/25 mm tubing
- Ceramic valve balls for extended durability
SPECIFICATIONS
| Max Flow | 1.92 L/Min |
| Max Head | 30.6 m |
| Power | 0.09 kW / 240v |
| Suitable For | Water Treatment |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Hose Connection (19/27 mm) |
| Outlet Size | Hose Connection (19/27 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
Fluid elevation through vertical risers reaches up to 30.6 m with the Grundfos DMX 115-3 under standard duty points.
How much fluid throughput does this pump move under full load?
Discharge throughput on the DMX 115-3 reaches a maximum flow rate of approximately 1.92 L/Min under standard operating conditions.
What property water management tasks match this pump?
System installations deploy the DMX-115-3 for corrosive heavy-duty fluids, maintaining steady circulation and reliable line pressure.
What electrical voltage and motor kilowatt output drive this unit?
Electrical specifications for the DMX 115 3 feature a 0.09 kW motor running on 240 V power.
What water temperature range and installation depth are supported?
Liquid operating limits establish that the DMX/115/3 accommodates temperatures up to 40 °C during standard duties.
