SKU: 99206048

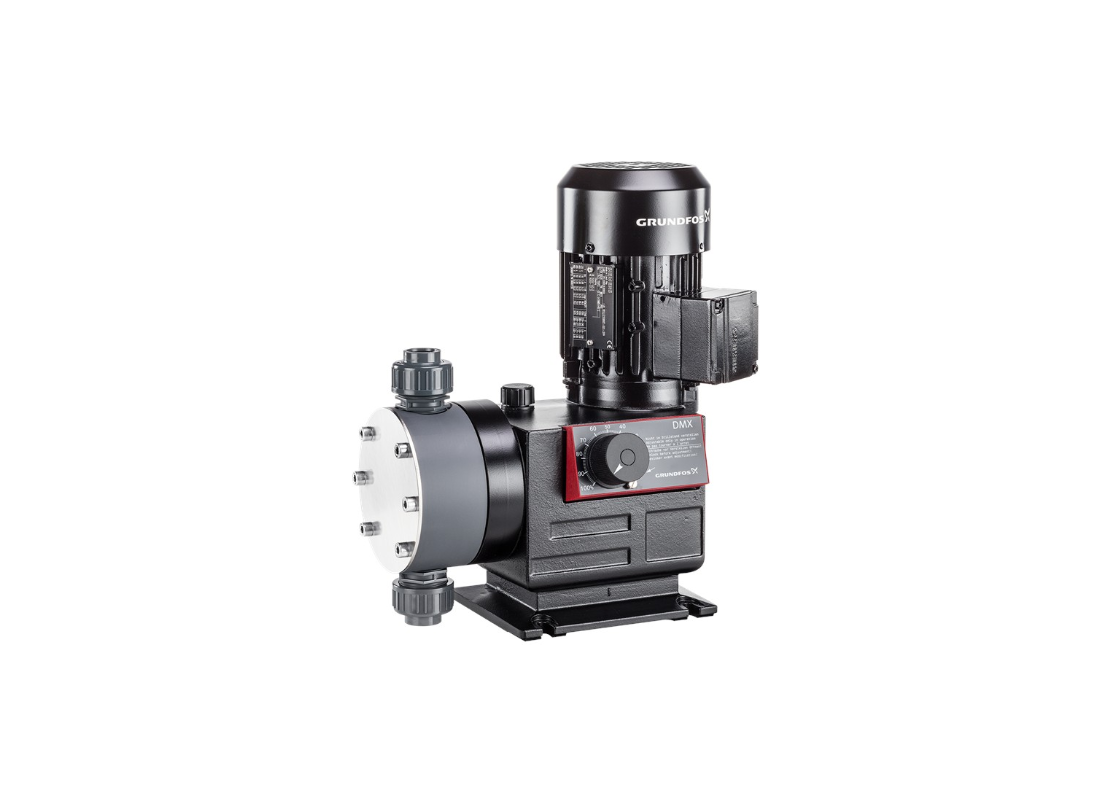

Grundfos DMX 132-10 Aluminium EPDM 1-Phase Dosing Pump for Flocculation with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Chemical industry applications requiring higher dosing capacity are served by the DMX 132-10 mechanical diaphragm dosing pump from Grundfos. Manual stroke length adjustment from 10-100% gives a 10:1 turndown ratio for dosing rate control.
At 50 Hz operation, the DMX 132-10 delivers 132 L/h maximum dosing capacity at 10 bar pressure. A 0.40 kW motor with 1 x 240v supply powers this unit. Dosing flow variation is maintained at less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure. Suction lift during operation is 3 metres.
Thermoplastic dosing head construction on the DMX 132-10 incorporates ceramic valve balls and EPDM gaskets. Standard non-return valves are fitted on both connections. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
Aluminium gear housing with IP65 enclosure protects the DMX 132-10. G5/4 connections accommodate 19/27 and 20/25 mm connections.
FEATURES
- Stroke length adjustment from 10-100% of maximum
- 0.40 kW motor for increased dosing capacity
- EPDM gaskets for chemical compatibility
- Standard non-return valves on suction and discharge
- PTFE-coated diaphragm for chemical resistance
- IP65 enclosure for industrial environments
- G5/4 connections for 19/27 and 20/25 mm tubing
SPECIFICATIONS
| Max Flow | 2.2 L/Min |
| Max Head | 102 m |
| Power | 0.4 kW / 240v |
| Suitable For | Chemical Dosing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Hose Connection (19/27 mm) |
| Outlet Size | Hose Connection (19/27 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What water temperature range and installation depth are supported?
Liquid operating limits establish that the Grundfos DMX 132-10 accommodates temperatures up to 40 °C during standard duties.
How high can this pump lift water vertically?
Dynamic lift generated by the DMX 132-10 reaches a maximum elevation head of approximately 102.0 m across discharge lines.
What maximum flow rate does this pump achieve during heavy influx?
Displacing fluid into connected headers, the DMX-132-10 sustains up to 2.2 L/Min of volumetric throughput.
Is the pump body built to withstand harsh and corrosive liquids?
Durable PVC construction gives the DMX 132 10 exceptional structural strength and long-term protection against corrosive fluids.
How much power does the motor consume during standard operation?
Powered by an efficient 0.4 kW motor, the DMX/132/10 operates on 240 V electrical feeds.
