SKU: 99206011

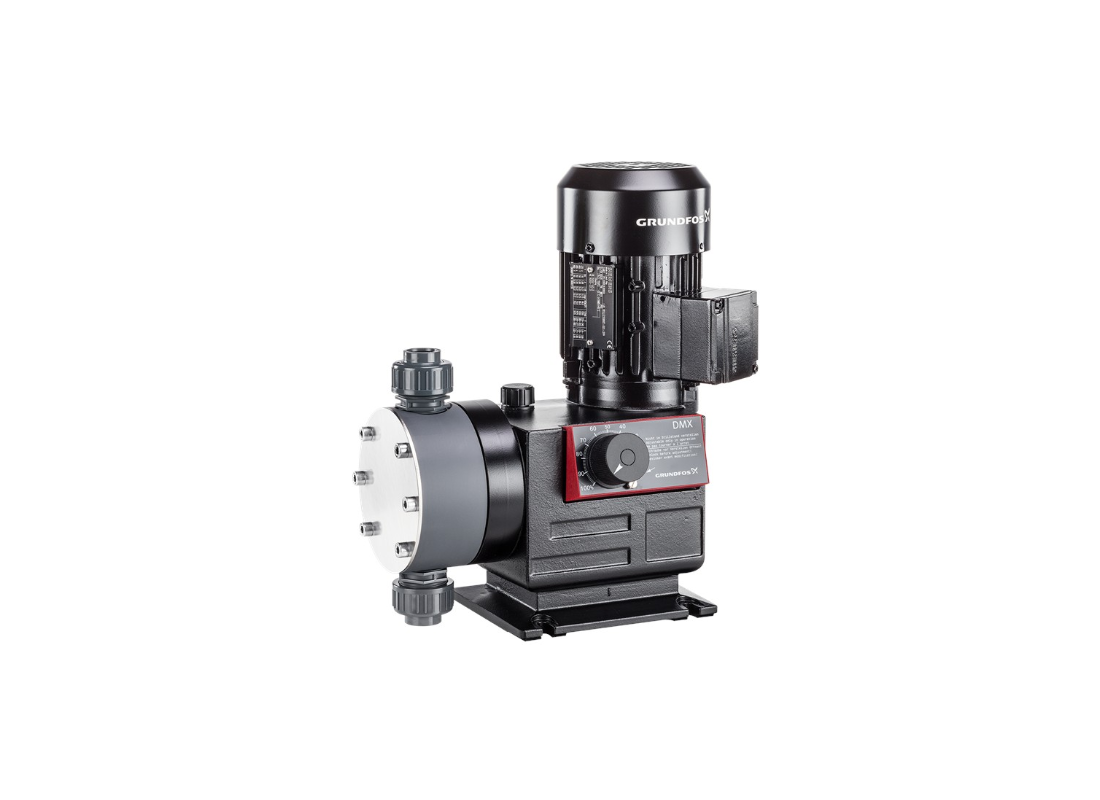

Grundfos DMX 132-10 Aluminium FKM 3-Phase Dosing Pump for Drinking Water Treatment with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Suitable for wastewater treatment applications requiring higher dosing capacity, the DMX 132-10 mechanical diaphragm dosing pump provides chemical metering with manual stroke length adjustment from 10-100% giving a 10:1 turndown ratio.
The DMX 132-10 provides 132 L/h maximum dosing capacity at 10 bar pressure, operating at 50 Hz with a 0.40 kW motor on 3 x 415v supply. Dosing flow variation is maintained at less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure. Suction lift during operation is 3 metres.
Thermoplastic dosing head on the DMX 132-10 with ceramic valve balls and FKM gaskets incorporates standard non-return valves. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
Aluminium gear housing with IP65 enclosure protects the DMX 132-10. G5/4 connections support 19/27 and 20/25 mm connections.
FEATURES
- Stroke length adjustment from 10-100% of maximum
- 0.40 kW motor for increased dosing capacity
- FKM gaskets for wastewater chemical compatibility
- Standard non-return valves on suction and discharge
- PTFE-coated diaphragm for extended service
- IP65 enclosure for treatment environment protection
- G5/4 connections for 19/27 and 20/25 mm tubing
SPECIFICATIONS
| Max Flow | 2.2 L/Min |
| Max Head | 102 m |
| Power | 0.4 kW / 415v |
| Suitable For | Chemical Processing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Hose Connection (19/27 mm) |
| Outlet Size | Hose Connection (19/27 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What corrosion-resistant materials are used in the wetted components?
Durable PVC construction gives the Grundfos DMX 132-10 exceptional structural strength and long-term protection against corrosive fluids.
What electrical connection and motor power run this pump?
Powered by an efficient 0.4 kW motor, the DMX 132-10 operates on 415 V electrical feeds.
What submersion depth limits and fluid temperatures apply to this pump?
Operating comfortably across temperatures up to 40 °C, the DMX-132-10 supports diverse fluid circuits.
How much vertical head pressure can this pump generate?
Under rated operating head, the DMX 132 10 can lift water to a maximum dynamic head of approximately 102.0 m through vertical risers.
How much water flow can this pump deliver per minute?
Peak fluid displacement on the DMX/132/10 delivers up to 2.2 L/Min under rated operating conditions.
