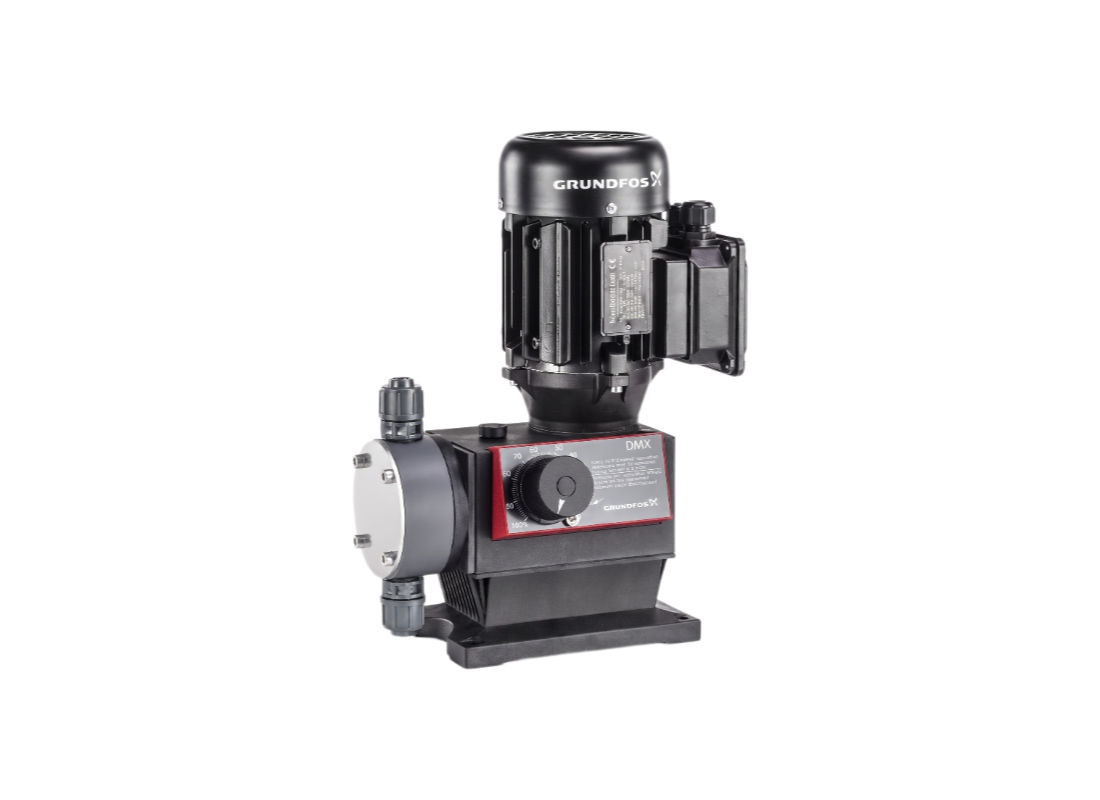

Grundfos DMX 16-12 PVC Single Phase Mechanical Diaphragm Dosing Pump for Chemical Dosing with Scale Knob Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Robust chemical transfer in industrial systems requiring a dependable mechanical diaphragm design is the primary role for this configuration. This DMX system is optimised for industrial service where set-and-forget reliability and a rugged mechanical interface are the primary requirements.
Driven by a 0.09 kW single-phase motor operating on a standard 240v supply, the unit produces a maximum dosing capacity of 16 L/h against a 12 bar maximum operating pressure. It utilises a 10:1 turn-down range via manual stroke length adjustment, providing a robust hydraulic solution for moving clean chemicals across varying site elevations.
The hydraulic design features a robust mechanical diaphragm and double ball valve configuration to ensure accurate fluid handling and long-term durability. This basic control variant focuses on consistent performance and manual adjustment, making it a reliable solution for standard industrial or agricultural chemical injection duties.
Mechanical durability is provided by a rugged PVC pump head and durable EPDM gaskets paired with ceramic ball valves suitable for standard media. Housed in an IP65 rated enclosure with an aluminium gear housing, the unit handles liquid temperatures up to 40°C and is supplied with standard G5/8 connections for versatile site pipework.
FEATURES
- Manual stroke length control via 10-100% scale knob for on-site dosing adjustment.
- Mechanical diaphragm design with NBR/PTFE coating for long-term durability.
- 10:1 turn-down range from 16 L/h down to 1.6 L/h for basic flow control.
- Robust 0.09 kW motor provides torque for consistent high-pressure transfer.
- PVC pump head and EPDM gaskets for standard industrial chemical resistance.
- Double ball valve configuration ensures consistent hydraulic performance.
- IP65 rated aluminium gear enclosure for demanding site environments.
- G5/8 connections with inserts for multiple hose sizes (4/6, 6/9, 6/12, 9/12 mm).
SPECIFICATIONS
| Max Flow | 0.26 L/Min |
| Max Head | 120 m |
| Power | 0.09 kW / 240v |
| Suitable For | Mechanical Chemical Dosing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor power rating and running current power this pump?
Driven by a 0.09 kW motor, the Grundfos DMX 16-12 functions reliably on 240 V electrical circuits.
What submersion depth limits and fluid temperatures apply to this pump?
Fluid media ranging up to 40 °C can be circulated through the DMX 16-12 without thermal breakdown.
What maximum vertical elevation head can this pump achieve?
To overcome vertical elevation resistance, the DMX-16-12 develops a maximum pumping head of approximately 120.0 m.
How much water volume can this pump displace through its outlet?
At full operating capacity, the DMX 16 12 moves up to 0.26 L/Min to keep liquid levels controlled during peak inflow.
Which casing and impeller materials provide long service life in this pump?
Structural defense on the DMX/16/12 is provided by a rugged PVC casing designed to withstand heavy mechanical stress.
