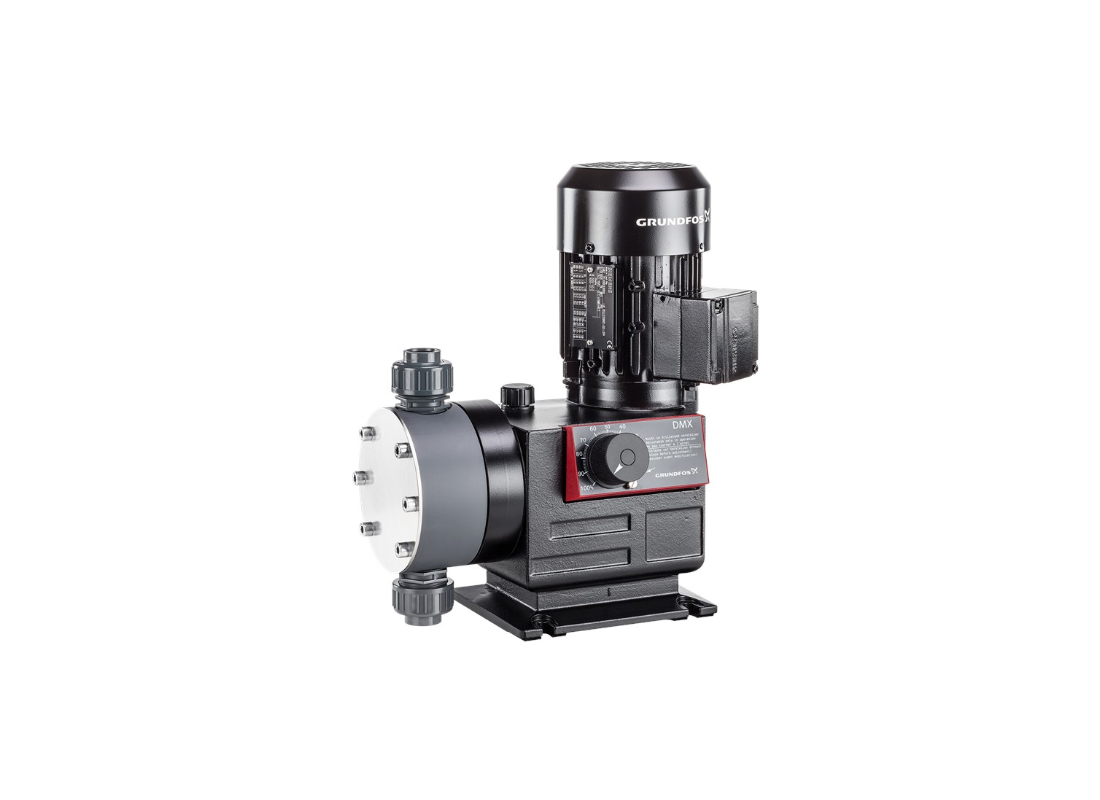

Grundfos DMX 199-8 Aluminium EPDM 3-Phase Dosing Pump for Industrial Water Treatment with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Chemical industry applications requiring higher dosing capacity are served by the DMX 199-8 mechanical diaphragm dosing pump from Grundfos. Manual stroke length adjustment from 10-100% provides a 10:1 turndown ratio for dosing rate control.
The DMX 199-8 delivers 199 L/h maximum dosing capacity at 8 bar pressure, operating at 50 Hz with a 0.40 kW motor on 3 x 415v supply. Dosing flow variation is less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure. Suction lift capability is 3 metres during operation.
Thermoplastic dosing head construction on the DMX 199-8 incorporates ceramic valve balls and EPDM gaskets. Standard non-return valves are fitted on both connections. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
Aluminium gear housing with IP65 enclosure protects the DMX 199-8. G5/4 connections accommodate 19/27 and 20/25 mm connections.
FEATURES
- Adjustable stroke length from 10-100% of maximum
- 0.40 kW motor for increased dosing capacity
- EPDM gaskets for chemical compatibility
- Standard non-return valves on suction and discharge
- PTFE-coated diaphragm for chemical resistance
- IP65 enclosure for industrial environments
- G5/4 connections for 19/27 and 20/25 mm tubing
SPECIFICATIONS
| Max Flow | 3.32 L/Min |
| Max Head | 81.6 m |
| Power | 0.4 kW / 415v |
| Suitable For | Industrial Chemical Dosing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Hose Connection (19/27 mm) |
| Outlet Size | Hose Connection (19/27 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What submersion depth limits and fluid temperatures apply to this pump?
Operating comfortably across temperatures up to 40 °C, the Grundfos DMX 199-8 supports diverse fluid circuits.
What peak dynamic elevation does this pump develop?
Under rated operating head, the DMX 199-8 can lift water to a maximum dynamic head of approximately 81.6 m through vertical risers.
How much water volume can this unit move through the pipework?
Peak fluid displacement on the DMX-199-8 delivers up to 3.32 L/Min under rated operating conditions.
Which casing and impeller materials provide long service life in this pump?
High-grade PVC components in the DMX 199 8 protect internal passages against corrosive fluid contact.
Does this pump run on standard household power or three-phase power?
It connects to 415 V power, with the DMX/199/8 driven by an efficient 0.4 kW motor.
