SKU: 99206069

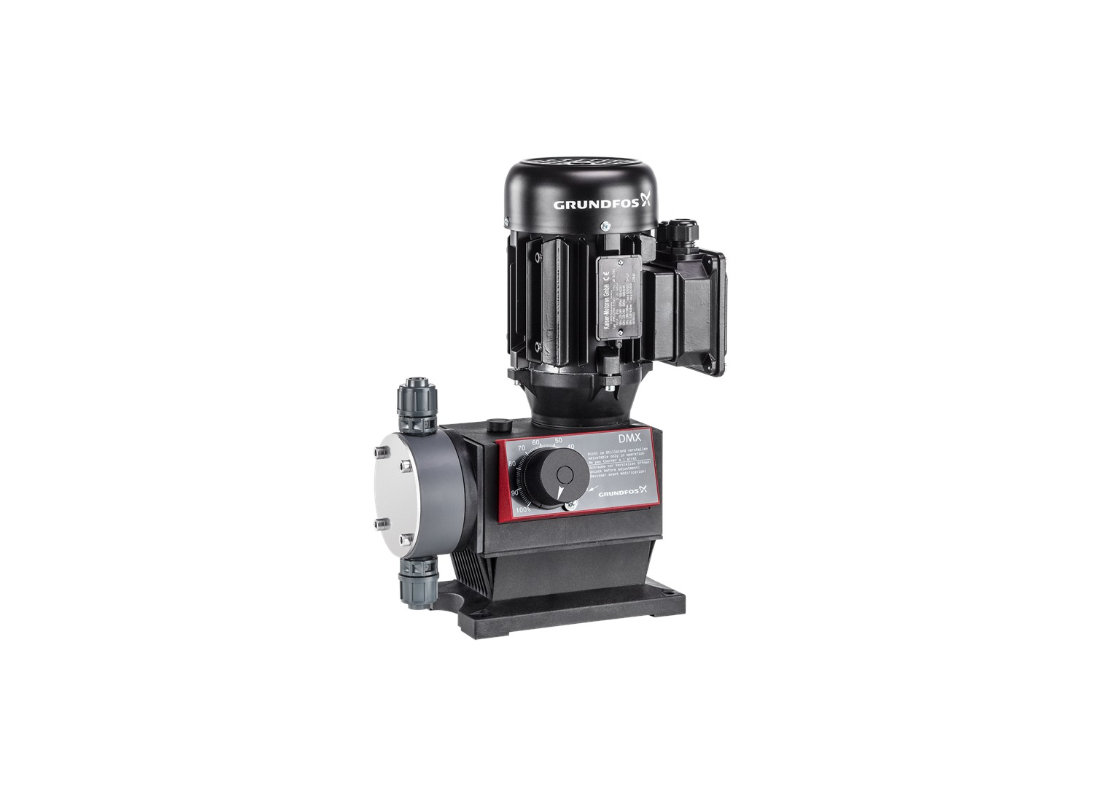

Grundfos DMX 27-12 Thermoplastic FKM 1-Phase Dosing Pump for Process Water with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Process water treatment applications are addressed by the DMX 27-12 mechanical diaphragm dosing pump from Grundfos. Manual stroke length adjustment from 10-100% yields a 10:1 turndown ratio for dosing rate control.
The DMX 27-12 delivers 27 L/h maximum dosing capacity at 12 bar pressure, operating at 50 Hz with a 0.09 kW motor on 1 x 240v supply. Dosing flow variation is less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure. Suction lift capability is 1 metre during operation.
Thermoplastic dosing head construction on the DMX 27-12 incorporates ceramic valve balls and FKM gaskets. Standard non-return valves are fitted on both connections. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
Aluminium gear housing with IP65 enclosure protects the DMX 27-12. G5/8 connections accommodate 4/6, 6/9, 6/12, and 9/12 mm tubing.
FEATURES
- Adjustable stroke length from 10-100% of maximum
- FKM gasket material for chemical resistance
- Standard non-return valves on suction and discharge
- PTFE-coated diaphragm for treatment chemicals
- IP65 enclosure rating for installation flexibility
- G5/8 connections with hose adaptor set
- Ceramic valve balls for durability
SPECIFICATIONS
| Max Flow | 0.45 L/Min |
| Max Head | 122.4 m |
| Power | 0.09 kW / 240v |
| Suitable For | Industrial Processing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Tube Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Outlet Size | Tube Connection (4/6, 6/9, 6/12, 9/12 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can this pump operate in warm or hot water without overheating?
Routine operational thermal ceilings enable the Grundfos DMX 27-12 to process liquids up to 40 °C.
How high can this pump lift water vertically?
Vertical elevation capability on the DMX 27-12 reaches a maximum dynamic head of approximately 122.4 m under rated conditions.
What maximum flow rate does this pump achieve during heavy influx?
Fluid evacuation capacity for the DMX-27-12 peaks at approximately 0.45 L/Min, providing dependable high-volume drainage.
What primary fluid transfer and circulation roles are designated for this pump?
Everyday water management duties for the DMX 27 12 focus on Chemical displacement duty on the is supported by PVC wetted parts and heavy-duty mechanical diaphragms, providing reliable pumping performance.
How much power does the motor consume during standard operation?
Operating on 240 V supply, the DMX/27/12 is driven by a 0.09 kW electric motor.
