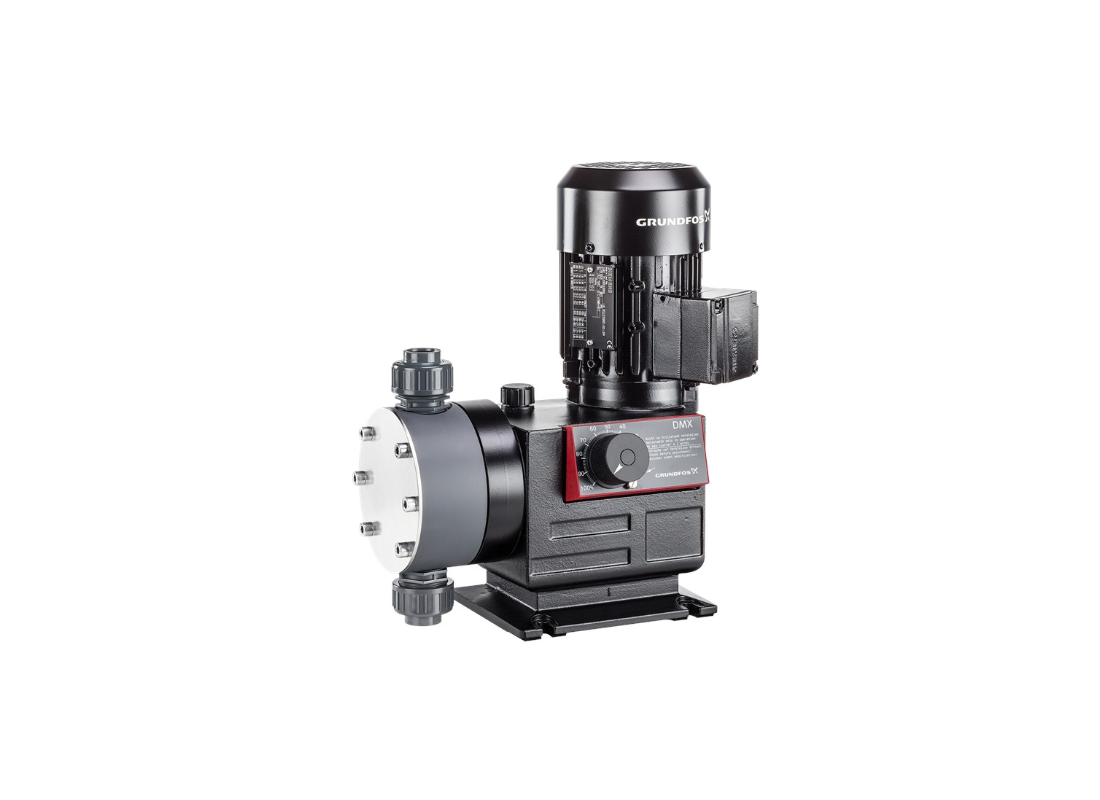

Grundfos DMX 460-6 Aluminium EPDM 3-Phase Dosing Pump for Ultrafiltration with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Chemical industry applications requiring higher dosing capacity are served by the DMX 460-6 mechanical diaphragm dosing pump from Grundfos. Manual stroke length adjustment from 10-100% yields a 10:1 turndown ratio for dosing rate control.
At 50 Hz, the DMX 460-6 delivers 460 L/h maximum flow at 6 bar pressure. A 0.40 kW motor with 3 x 415v supply powers the unit. Dosing flow variation is maintained at less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure. Suction lift capability extends to 2 metres.
EPDM gaskets and ceramic balls are fitted in the DMX 460-6 thermoplastic dosing head. Standard non-return valves come on both connections. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
IP65 enclosure with aluminium housing protects the DMX 460-6. G5/4 connections accommodate 19/27 and 20/25 mm connections.
FEATURES
- Manual stroke length control with 10:1 turndown ratio
- 0.40 kW motor for increased dosing capacity
- EPDM gaskets for chemical compatibility
- Standard non-return valves on suction and discharge
- PTFE-coated diaphragm for chemical resistance
- IP65 enclosure for industrial environments
- G5/4 connections for 19/27 and 20/25 mm tubing
SPECIFICATIONS
| Max Flow | 7.67 L/Min |
| Max Head | 61.2 m |
| Power | 0.4 kW / 415v |
| Suitable For | Chemical Processing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Hose Connection (19/27 mm) |
| Outlet Size | Hose Connection (19/27 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
To overcome vertical elevation resistance, the Grundfos DMX 460-6 develops a maximum pumping head of approximately 61.2 m.
How much fluid throughput does this pump move under full load?
At full operating capacity, the DMX 460-6 moves up to 7.67 L/Min to keep liquid levels controlled during peak inflow.
How is the pump casing constructed to resist mechanical and fluid wear?
Structural defense on the DMX-460-6 is provided by a rugged PVC casing designed to withstand heavy mechanical stress.
What electrical voltage and motor kilowatt output drive this unit?
Standard power configuration for the DMX 460 6 incorporates a 0.4 kW motor on 415 V line feeds.
How deep can this pump be installed underwater in a wet well?
Routine operational thermal ceilings enable the DMX/460/6 to process liquids up to 40°C.
