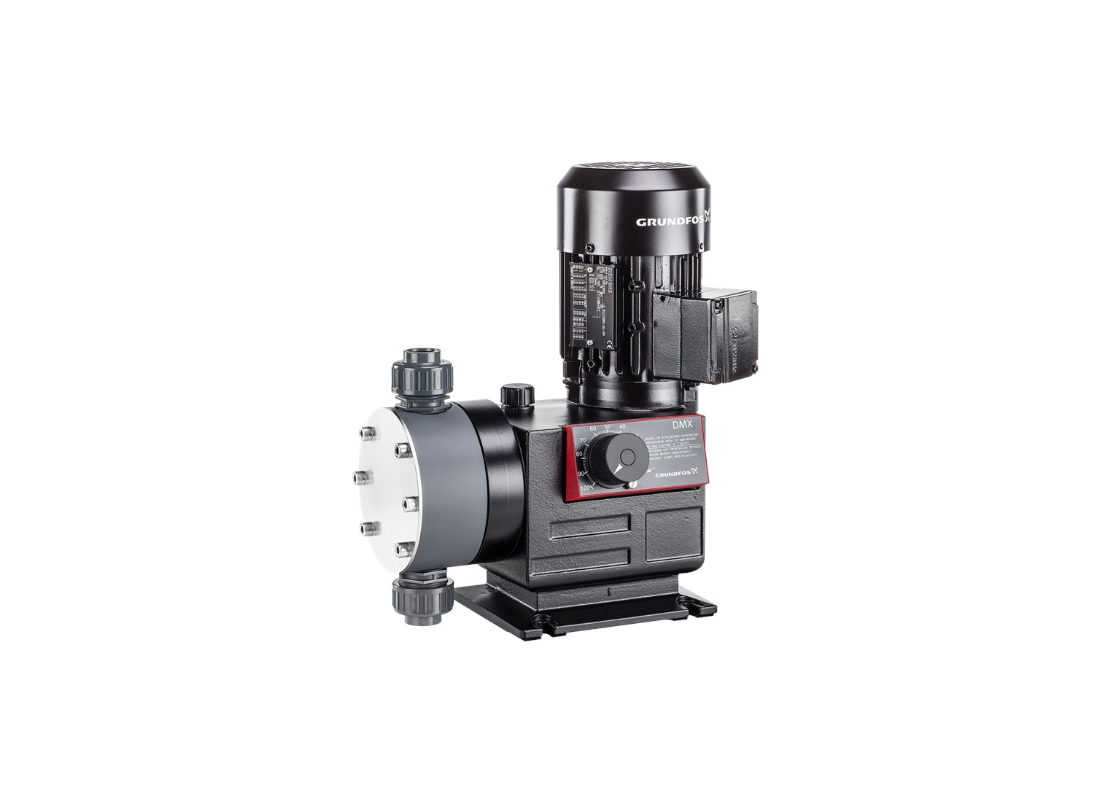

Grundfos DMX 525-3 Aluminium FKM Glass Valve Dosing Pump for Coagulation with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High capacity chemical industry dosing is served by the DMX 525-3 mechanical diaphragm pump from Grundfos. Manual stroke length adjustment from 10-100% yields a 10:1 turndown ratio for dosing rate control.
The DMX 525-3 delivers 525 L/h maximum dosing capacity at 3 bar pressure, operating at 50 Hz with a 0.40 kW motor on 3 x 415v supply. Dosing flow variation is maintained at less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure. Suction lift during operation is 1 metre.
Glass valve balls and FKM gaskets feature in the DMX 525-3 thermoplastic dosing head. Standard non-return valves are fitted on both connections. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
IP65-rated aluminium housing encloses the DMX 525-3. 40 mm connections accommodate high flow requirements.
FEATURES
- Adjustable stroke length from 10-100% of maximum
- 0.40 kW motor for high dosing capacity
- Glass valve balls for chemical compatibility
- FKM gaskets for aggressive chemical resistance
- PTFE-coated diaphragm for chemical resistance
- IP65 enclosure for industrial environments
- 40 mm connections for high flow requirements
SPECIFICATIONS
| Max Flow | 8.75 L/Min |
| Max Head | 30.6 m |
| Power | 0.4 kW / 415v |
| Suitable For | Chemical Dosing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Pipe Connection (32/40 mm) |
| Outlet Size | Pipe Connection (32/40 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of power supply does this pump require to run?
Standard power configuration for the Grundfos DMX 525-3 incorporates a 0.4 kW motor on 415 V line feeds.
What water temperature range and installation depth are supported?
Routine operational thermal ceilings enable the DMX 525-3 to process liquids up to 40°C.
What maximum vertical water column can this pump maintain?
Vertical elevation capability on the DMX-525-3 reaches a maximum dynamic head of approximately 30.6 m under rated conditions.
What discharge flow rate does this pump maintain during peak operation?
Fluid evacuation capacity for the DMX 525 3 peaks at approximately 8.75 L/Min through a 40 mm connection connection, providing dependable high-volume drainage.
Where is this pump commonly installed and utilized?
Everyday water management duties for the DMX/525/3 focus on Transporting aggressive process reagents, the DMX_525_3 leverages aluminium and PVC with FKM wetted assemblies capable of resisting corrosive fluids, providing reliable pumping performance.
