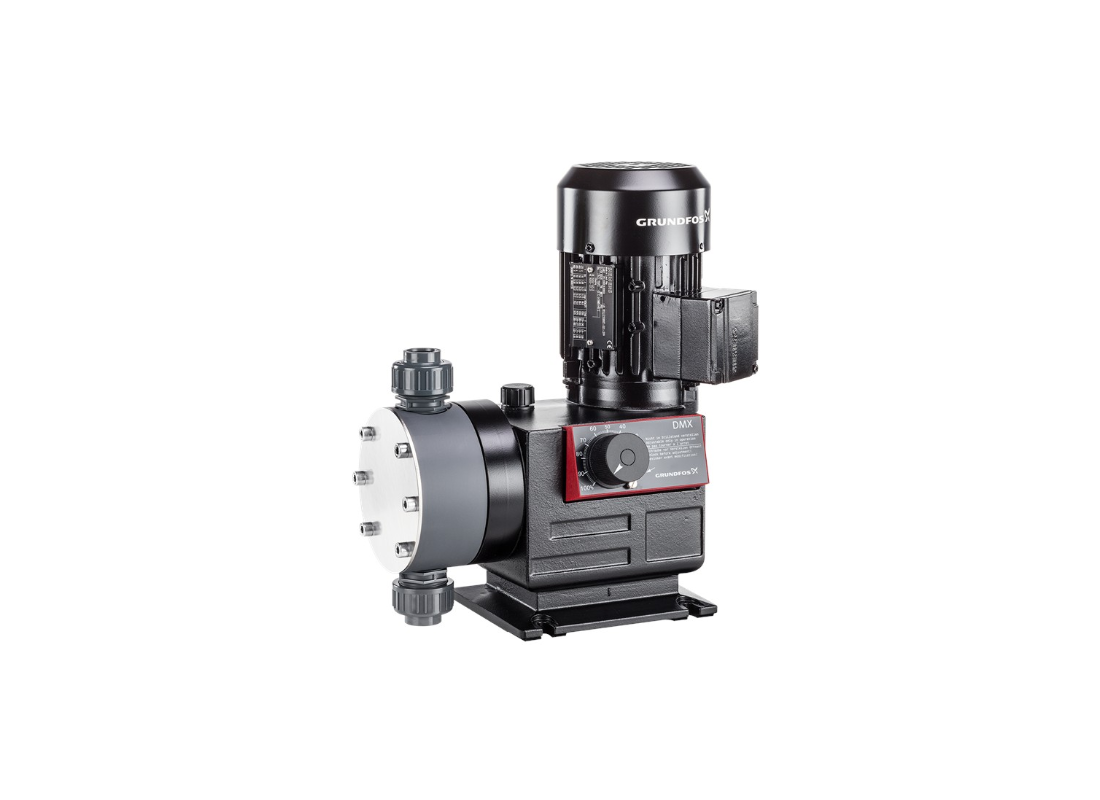

Grundfos DMX 765-3 Aluminium EPDM Steel Valve Dosing Pump for Flocculation with Mechanical Diaphragm
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Maximum flow water treatment applications are addressed by the DMX 765-3 mechanical diaphragm dosing pump from Grundfos. Manual stroke length adjustment from 10-100% provides a 10:1 turndown ratio for dosing rate control.
At 50 Hz, the DMX 765-3 delivers 765 L/h maximum dosing capacity at 3 bar pressure. A 0.40 kW motor on 3 x 415v supply powers the unit. Dosing flow variation is maintained at less than ±1.5% with linearity within ±4% at minimum 1 bar differential pressure.
Stainless steel valve balls and EPDM gaskets are fitted in the DMX 765-3 thermoplastic dosing head. Standard non-return valves come on both connections. The PTFE-coated diaphragm handles liquid temperatures from 0 to 40°C.
IP65 enclosure with aluminium housing protects the DMX 765-3. 40 mm connections accommodate maximum flow requirements.
FEATURES
- Manual stroke length control with 10:1 turndown ratio
- 0.40 kW motor for maximum dosing capacity
- Stainless steel valve balls for corrosion resistance
- EPDM gaskets for water treatment compatibility
- PTFE-coated diaphragm for chemical resistance
- IP65 enclosure for environmental protection
- 40 mm connections for maximum flow requirements
SPECIFICATIONS
| Max Flow | 12.75 L/Min |
| Max Head | 30.6 m |
| Power | 0.4 kW / 415v |
| Suitable For | Water Treatment |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | Pipe Connection (32/40 mm) |
| Outlet Size | Pipe Connection (32/40 mm) |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How deep can this pump be installed underwater in a wet well?
Routine operational thermal ceilings enable the Grundfos DMX 765-3 to process liquids up to 40°C.
How high can this pump lift water vertically?
Vertical elevation capability on the DMX 765-3 reaches a maximum dynamic head of approximately 30.6 m under rated conditions.
What maximum flow rate does this pump achieve during heavy influx?
Fluid evacuation capacity for the DMX-765-3 peaks at approximately 12.75 L/Min through a 40 mm connection connection, providing dependable high-volume drainage.
What corrosion-resistant materials are used in the wetted components?
Manufactured with quality materials, the DMX 765 3 incorporates PVC for dependable longevity and resistance to fluid erosion.
How much power does the motor consume during standard operation?
Operating on 415 V supply, the DMX/765/3 is driven by a 0.4 kW electric motor.
