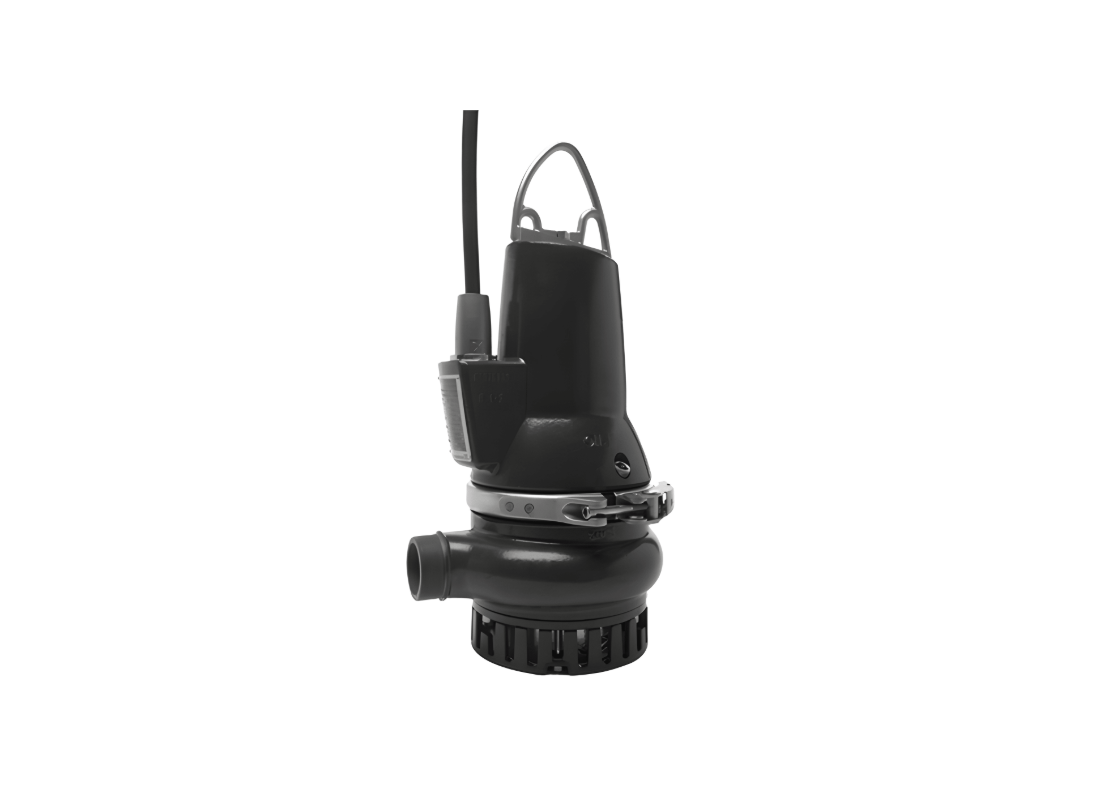

Grundfos DP10.50.15.Ex.2.50B Cast Iron Explosion-Proof Wastewater Pump for Process Water with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Constructed around a heavy-duty cast iron framework for maximum sub-surface durability, the DP10.50.15.Ex.2.50B Grundfos DP pump is a portable pump for both domestic and industrial applications. It is engineered to help stabilize deep well extraction, supporting continuous operations across varied commercial networks by managing heavy fluid routing.
Hydraulic mechanics are specifically tuned to achieve a maximum vertical head of 20.1 meters and a flow capacity of approximately 816 L/Min. The kinetic system relies on a semi-open impeller that offers a 10 mm free passage, intended to allow non-fibrous debris to process effectively without compromising fluid velocity through the discharge.
To protect the 1.5 kW three-phase motor during rigorous drainage cycles, an intermediate oil chamber provides continuous thermal dissipation. This internal non-toxic fluid reservoir actively lubricates the unique double shaft seal cartridge mechanism, safely extending the intervals between routine field servicing.
With a verified net weight of 44.7 kg, this explosion-proof certified machine integrates safely into regulated hazardous pumping stations. It supports guide rail installations using an automatic coupling base requiring P/N 97644486, permitting service extraction without personnel entry. A specialized cable plug utilizes deep polyurethane potting.
Features
- Engineered for a maximum safe hydraulic operating pressure of 6 bar
- Verified operational capability in continuous liquid temperatures up to 40 °C
- Standard electrical current consumption accurately rated at 3.8 Amps
- Capable of successfully managing up to 30 cyclic motor starts per hour
- Designed with a symmetrical 50 mm nominal diameter discharge port
- Fitted internally with long-life deep-groove greased ball bearings
- Classified strictly with IP68 enclosure protection and Class F insulation
SPECIFICATIONS
| Max Flow | 816 L/Min |
| Max Head | 20.1 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.8 Amps |
| Suitable For | Process Water |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum flow capacity of this pump per minute?
Moving liquid through the system, the Grundfos DP10.50.15.Ex.2.50B maintains an operational throughput of up to 816 L/Min during peak demand.
How high can this pump lift water vertically?
Dynamic lift generated by the DP10.50.15.Ex.2.50B reaches a maximum elevation head of approximately 20.1 m across discharge lines.
What voltage supply and motor power does this pump need?
Connecting across 415 V three-phase lines, the DP10-50-15-Ex-2-50B draws approximately 3.8 Amps with an efficient 1.5 kW motor.
What primary fluid transfer and circulation roles are designated for this pump?
Primary tasks for the DP10 50 15 Ex 2 50B include solids up to 10 mm in diameter, delivering efficient water management across residential and rural systems.
What connection layout and port dimensions are featured on this unit?
Discharge pipework interfaces directly with the DP10/50/15/Ex/2/50B through a standard auto-coupling for quick field installation.
