SKU: 96106543

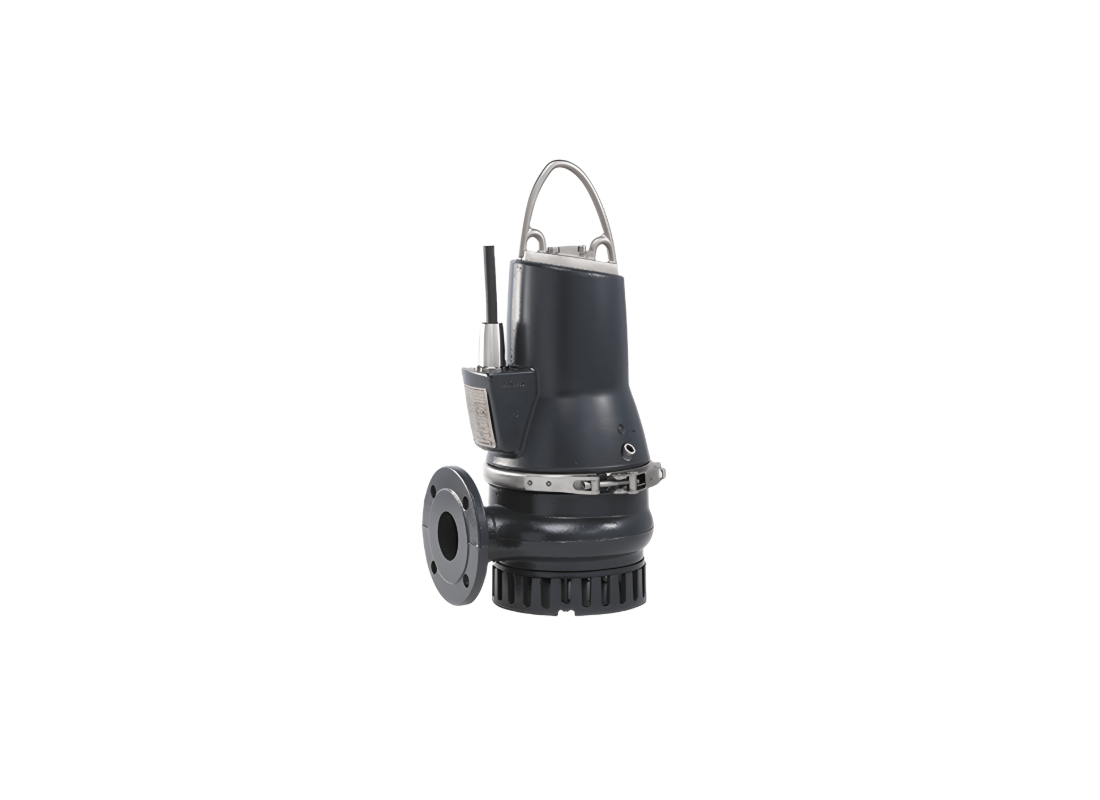

Grundfos DP10.65.26.Ex.2.50B Cast Iron Explosion-Proof Wastewater Pump for Drainage with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Developed to assist with long-term predictive fluid handling in demanding sectors, the DP10.65.26.Ex.2.50B Grundfos DP pump is a portable pump for both domestic and industrial applications. By helping facilities maintain continuous drainage protocols, it securely routes industrial process water without stalling under heavy operational constraints.
Generating substantial kinetic force, the system safely manages a maximum flow rate of approximately 768 L/Min alongside a significant vertical head of 25.1 meters. This hydraulic performance is governed by a precision-balanced semi-open impeller offering a 10 mm free clearance, intended to process small non-fibrous debris smoothly.
Encased entirely within a premium EN-GJL-250 cast iron exterior housing, the pump structure assists in resisting abrasive degradation during prolonged submersion. The 2.6 kW three-phase motor benefits from an intermediate oil chamber that provides essential heat dissipation while constantly lubricating the double shaft seal cartridge.
Ensuring compliance across hazardous environments, this 72.9 kg unit rigidly adheres to explosion-proof standards. The structural base supports guide rail installations utilizing an automatic coupling arrangement keyed to P/N 96090992, granting fast maintenance access without entering the wet well. The polyurethane cable plug limits moisture penetration.
Features
- Expanded 65 mm diameter DIN flanged discharge connection
- Standard operational electrical draw rated firmly at 5.8 Amps
- Internal multi-vane impeller cast from EN-GJS-500-7 iron
- Verified to operate safely in liquid temperatures up to 40 °C
- Engineered for a maximum safe operating pressure of 6 bar
- Equipped with Class F motor insulation and IP68 protection
- Designed to successfully execute up to 30 starts per hour
SPECIFICATIONS
| Max Flow | 768 L/Min |
| Max Head | 25.1 m |
| Power | 2.6 kW / 415v |
| Rated Current | 5.8 Amps |
| Suitable For | Drainage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Displacing fluid into connected headers, the Grundfos DP10.65.26.Ex.2.50B sustains up to 768 L/Min of volumetric throughput.
How high can this pump push fluid through discharge risers?
Vertical elevation capability on the DP10.65.26.Ex.2.50B reaches a maximum dynamic head of approximately 25.1 m under rated conditions.
What are the power requirements and running amperage for this pump?
Powered by a dedicated 2.6 kW motor, the DP10-65-26-Ex-2-50B connects to 415 V three-phase mains power with a rated current draw of 5.8 Amps.
Where is this pump commonly installed and utilized?
Everyday water management duties for the DP10 65 26 Ex 2 50B focus on Particulate obstruction is prevented by through an internal semi-open passage clearance measuring 10 mm in diameter, providing reliable pumping performance.
How does this pump connect to standard plumbing and flanged lines?
Connecting via a standard auto-coupling (96090992), the DP10/65/26/Ex/2/50B aligns cleanly with system plumbing headers.
