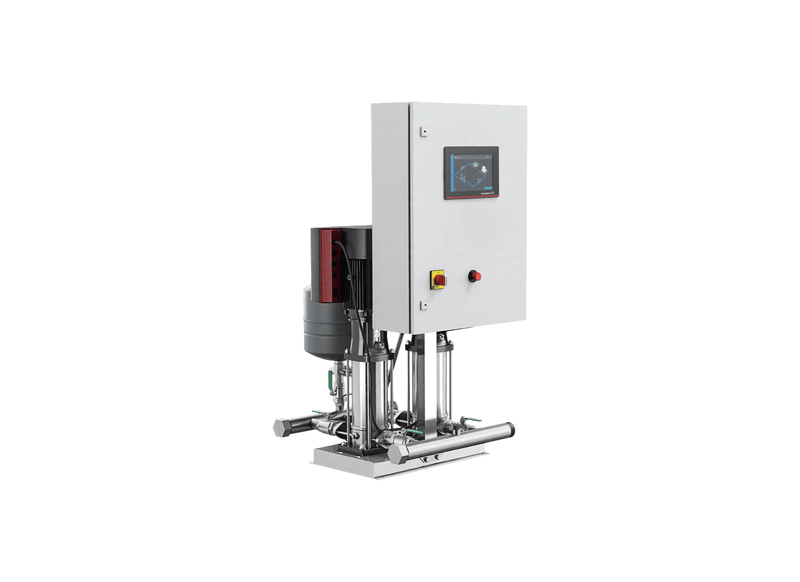

Grundfos Hydro MPC-E 2 x CRIE 10-6 Three Phase 2 x 4kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Business parks adding tenancies faster than their mains can serve get a constant-pressure answer in this Grundfos Hydro MPC-E 2 CRIE 10-6 set. Everything is ordered under the single part number 93637568.
It handles flows up to 520 L/min across the system. The pumps can develop up to 87 metres of head when pressure demand increases. A Grundfos GENIECON PANEL on the common base frame provides the system control; the GENIECON UNIT within it holds the exact hydraulic and electrical data of the pumps, so staging and changeover decisions are based on the pumps' actual curves.
Factory assembled on a common base, the set combines stainless steel pipework, two 50 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus an 8L diaphragm tank. It connects to a 3 x 400 V supply at 50 Hz with a rated current of 15.5 A. Motors are protected to IP54, while maximum system pressure is 16 bar. Liquid-temperature suitability is 5°C to 60°C.
Its home ground covers high-rise developments, industry and commercial buildings. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- The system pairs two CRIE 10-6 pumps in parallel duty, controlled as a single coordinated system.
- The GENIECON UNIT applies the pumps' exact hydraulic and electrical data when making control decisions.
- Inlet pressure monitoring provides dry-running protection if the suction supply is insufficient.
- An integrated 8L diaphragm tank carries small draw-offs and limits pump cycling.
- Variable speed comes from frequency converters matched to permanent magnet motors, keeping the booster set in its efficient range.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Stainless steel manifolds provide two 50 mm manifold connections ready for pipework.
- Rated for 16 bar system pressure; motors carry IP54 protection.
- Each main pump is rated 4 kW (P2), so per-pump draw scales down as speed follows demand.
- GENIECON PANEL control with touch display gives operating staff full staging visibility.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
What's Included
- 2 x Grundfos CRIE 10-6 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- GENIECON PANEL with touch display
- GENIECON multi-pump control unit
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring (dry-run protection)
- 8L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 520 L/Min |
| Max Head | 87 m |
| Power | 2 x 4 kW / 415v |
| Rated Current | 15.5 Amps |
| Suitable For | Commercial Water Supply, Irrigation and Transfer Duty |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which electric motor drives and frequency converters provide propulsion on this booster skid?
Electronic speed regulation across the Grundfos Hydro MPC-E 2 CRIE 10-6 V1 GA-A-A-AG is provided by two variable frequency drive MGE electric motors rated at 4 kW apiece on 3 x 400 V power, modulating motor rpm according to demand.
Which vertical head pressure does this parallel multistage booster assembly generate?
Hydraulic elevation capability on the Hydro MPC-E 2 CRIE 10-6 generates up to 87 m total dynamic head while supporting a maximum operating pressure rating of 16 bar.
What manifold connection hardware and isolation valves are installed across this booster skid?
Common manifolding across the Hydro-MPC-E-2-CRIE-10-6 utilizes R 2 1/2" stainless steel suction and discharge pipework with integrated non-return valves and isolating ball valves.
Which factory warranty coverage protects the complete multi pump booster skid?
Investment protection for the Hydro MPC E 2 CRIE 10 6 features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
How much water flow can this multi stage pump package discharge when all pumps are operational?
For high-demand distribution pipework, the 2 CRIE 10-6 (Hydro MPC-E) delivers a peak water displacement rate of 520 L/min across its parallel multistage pump assembly.
