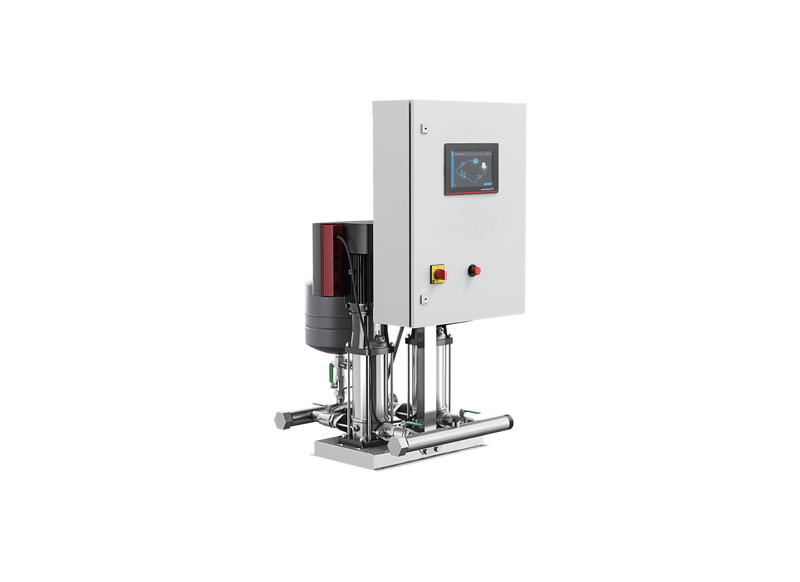

Grundfos Hydro MPC-E 2 x CRIE 15-2 Three Phase 2 x 3kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Across multi-floor commercial buildings, consistent fixture pressure is maintained through the Grundfos Hydro MPC-E 2 x CRIE 15-2 Three Phase 2 x 3kW 304ss Booster System w/8L Tank and CU 352 Controller. Two Grundfos CRIE 15-2 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93637583 provides the complete tested package in a single order line.
Providing continuous duty cycle reliability, total volume output spans up to 947 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 39.9 metres of head. A Grundfos GENIECON PANEL on the common base frame provides system control; the GENIECON unit inside holds the exact hydraulic data of the pumps to stage operation precisely according to real-time curve demand.
The compact hydraulic footprint rests on an ultra-durable structural mounting frame. The set is fully pre-plumbed with two 80 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 400 V supply at 50 / 60 Hz with combined rated current of 12.1 A (2 x 6 A per pump). A 8L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Designed for bulk goods distribution centres, logistics cross-docks, and parcel sorting hubs. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Electrical supply rating: 3 x 400 V at 50 / 60 Hz
- Permissible liquid temperature range from 5°C to 60°C
- Peak volumetric clean water delivery flow up to 947 L/min
- Maximum vertical delivery head up to 39.9 metres
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Integrated multi-pump array featuring two Grundfos CRIE 15-2 multistage pumps
- Factory-fitted 8L diaphragm pressure tank to suppress water hammer
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Pre-plumbed with two 80 mm manifold connections and isolating non-return valves
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Combined rated current draw of 12.1 A (2 x 6 A per pump)
What's Included
- Grundfos Hydro MPC-E 2 CRIE 15-2 V1 GA-A-A-AG Factory-Tested Booster Skid
- Two x Grundfos CRIE 15-2 Multistage Pumps with Integrated Frequency Converters
- Grundfos GENIECON Panel Multi-Pump Control System
- 1 x Factory-Mounted 8L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 80 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 947 L/Min |
| Max Head | 39 m |
| Power | 2 x 3 kW / 415v |
| Rated Current | 2 x 6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much peak volumetric displacement does this variable speed booster assembly produce?
During peak facility consumption cycles, the Grundfos Hydro MPC-E 2 CRIE 15-2 V1 GA-A-A-AG (part number 93637583) delivers up to 947 L/min across its parallel wet ends.
Which electric motor power rating and voltage supply powers each pump in this booster set?
Drive hardware for the Hydro MPC-E 2 CRIE 15-2 consists of two IE5 permanent-magnet MGE electric motors rated at 3 kW each on a 3 x 400 V power supply.
Which maximum vertical elevation does this packaged multi-pump booster unit provide?
Pumping across elevated risers, the Hydro-MPC-E-2-CRIE-15-2 maintains up to 39.9 m total dynamic head while supporting 16 bar maximum pressure.
What suction and discharge connection fittings are provided across the factory manifold skid?
Interconnecting pipework on the Hydro MPC E 2 CRIE 15 2 features factory-fitted DN 80 stainless steel suction and discharge manifolds with non-return check valves and isolation valves.
Which manufacturer warranty terms apply to the complete packaged booster set?
Investment protection for the 2 CRIE 15-2 (Hydro MPC-E) features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
