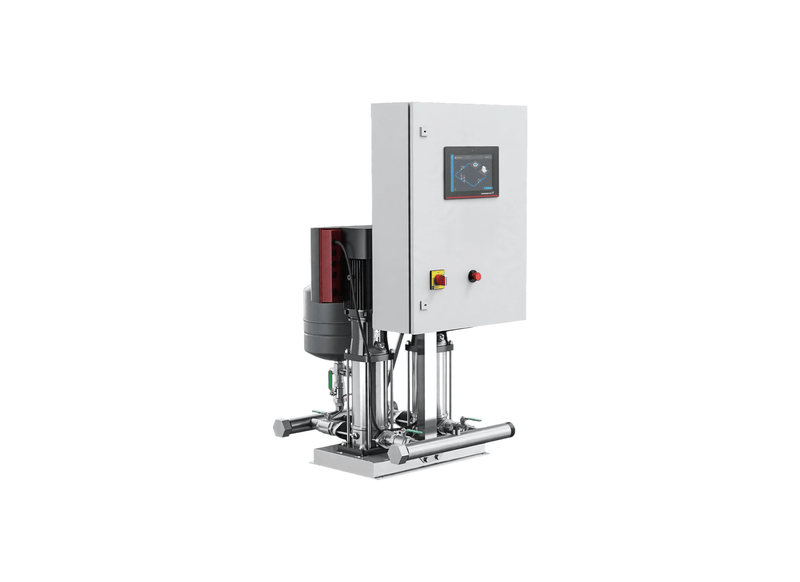

Grundfos Hydro MPC-E 2 x CRIE 20-3 Three Phase 2 x 5.5kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Sites such as school blocks and council facilities fed by long, pressure-hungry reticulation require consistent pressure regardless of demand fluctuation; the Hydro MPC-E 2 CRIE 20-3 achieves this with two CRIE 20-3 pumps operating in parallel. Part number 93637619 provides the complete tested package in a single order line.
This set provides up to 1157 L/min of flow capacity. Variable-speed operation can develop up to 61 metres of head where required. A Grundfos GENIECON PANEL on the common base frame provides the system control; the GENIECON UNIT within it holds the exact hydraulic and electrical data of the pumps, so staging and changeover decisions are based on the pumps' actual curves.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 80 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus an 8L diaphragm tank. It is designed for 3 x 400 V power at 50 Hz with a rated current of 20.7 A, with IP54 motor protection and a 16 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C.
Typical duty sits with industry, high-rise developments and water supply networks. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Rated for 16 bar system pressure; motors carry IP54 protection.
- GENIECON PANEL control with touch display gives operating staff full staging visibility.
- The set ships with an 8L precharged diaphragm tank for low-flow stability.
- The GENIECON UNIT applies the pumps' exact hydraulic and electrical data when making control decisions.
- Two Grundfos CRIE 20-3 vertical multistage pumps run in parallel on one common base frame.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- The stainless steel manifold assembly is supplied with two 80 mm manifold connections.
- Inlet pressure monitoring provides dry-running protection if the suction supply is insufficient.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- At P2 each main pump is 5.5 kW, covering the duty without oversizing the frame.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Frequency converters on the motors pair with permanent magnet motors for efficient part-load operation.
What's Included
- 2 x Grundfos CRIE 20-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- GENIECON PANEL with touch display
- GENIECON multi-pump control unit
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring (dry-run protection)
- 8L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 1157 L/Min |
| Max Head | 61 m |
| Power | 2 x 5.5 kW / 415v |
| Rated Current | 20.7 Amps |
| Suitable For | Commercial Water Supply, Irrigation and Transfer Duty |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is this multi stage booster skid protected under manufacturer warranty terms?
The complete factory package of the Grundfos Hydro MPC-E 2 CRIE 20-3 V1 GA-A-A-AG is supported by a Grundfos two-year manufacturer warranty encompassing the base skid, motors, and wet ends.
How much discharge water flow does this variable speed booster unit supply across the distribution ringmain?
Meeting high volumetric requirements, the Hydro MPC-E 2 CRIE 20-3 achieves a maximum water delivery capacity of 1157 L/min through coordinated parallel pump operation.
Which electric motor drive configuration powers each centrifugal pump within this booster package?
Mechanical drive on the Hydro-MPC-E-2-CRIE-20-3 features two inverter-controlled variable frequency drive MGE electric motors producing 5.5 kW per pump, powered by a 3 x 400 V connection for energy-optimised water delivery.
Which vertical elevation head and system pressure rating applies to this multi pump skid?
Discharge pressure performance allows the Hydro MPC E 2 CRIE 20 3 to achieve up to 61 m maximum dynamic head under a 16 bar rated system pressure.
What plumbing connection dimensions and manifold check valves are installed on this assembly?
Interconnecting pipework on the 2 CRIE 20-3 (Hydro MPC-E) features factory-fitted DN80 stainless steel suction and discharge manifolds fitted with non-return check valves and isolation valves.
