SKU: 93637486

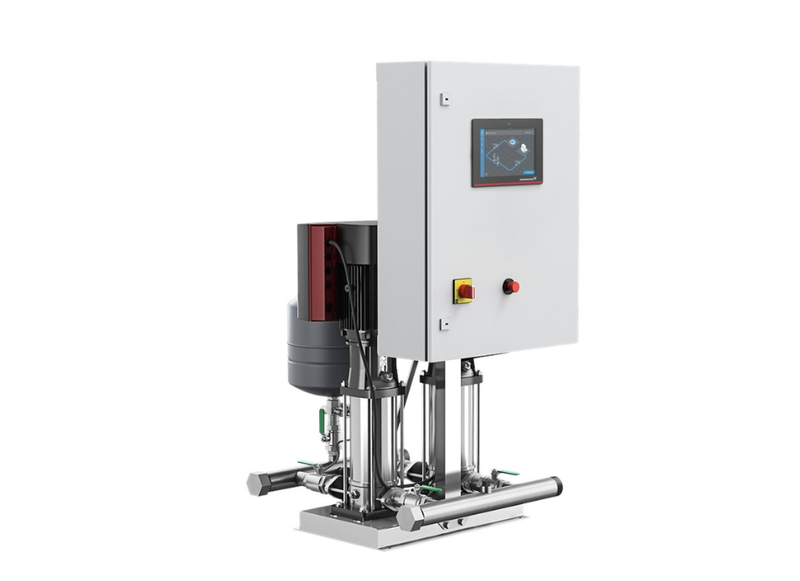

Grundfos Hydro MPC-E 2 x CRIE 3-2 Variable Speed 304ss Pressure Booster System with CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos Hydro MPC-E 2 CRIE 3-2 Variable Speed Booster Pump Set is an advanced commercial pressure boosting system designed to provide reliable constant water pressure across varying levels of demand. Featuring two Grundfos CRIE 3-2 vertical multistage pumps operating in parallel, the system combines intelligent variable speed control with a dedicated GENIECON touchscreen control panel for sophisticated multi-pump management.
Each CRIE pump is powered by a frequency-controlled IE5 permanent magnet motor with integrated frequency converter. The intelligent controller continuously adjusts the speed of each individual pump and automatically stages pumps in and out according to system demand, providing stable pressure while helping minimise unnecessary energy consumption.
The Hydro MPC-E features automatic pump changeover based on operating load, running time and fault conditions, helping balance operating hours between the pumps while providing redundancy for critical water supply applications. Integrated inlet pressure monitoring also provides dry-running protection, while proportional pressure and constant pressure control allow the system to be configured for different installation requirements.
This system features Grundfos' advanced GENIECON controller with a high-end 10-inch touchscreen interface, providing intuitive system monitoring and control. The complete booster system is supplied with the required manifolds, non-return valves, isolation valves, pressure sensors/transmitters and pressure gauge, mounted onto a common stainless steel base.
The Hydro MPC-E 2 CRIE 3-2 delivers up to 180 LPM with a maximum head of 19 metres, making it ideal for commercial buildings, water supply systems, irrigation, industrial applications and other installations requiring intelligent and dependable pressure boosting.
Key Features
- Twin Grundfos CRIE 3-2 variable speed pumps operating in parallel
- Advanced GENIECON multi-pump controller
- Large 10-inch touchscreen control interface
- Automatically maintains constant system pressure as demand changes
- Individual variable speed control of each pump
- IE5 ultra-premium efficiency permanent magnet motors
- Integrated frequency converters on each pump
- Automatic pump staging according to water demand
- Automatic pump changeover based on load, operating time and fault
- Integrated dry-running protection via inlet pressure sensor
- Constant pressure and proportional pressure control
- Power-optimised cascade control for efficient operation
- Stainless steel AISI 316 Ti manifolds
- Stainless steel 304 common base frame
- Factory preconfigured and tested
- Maximum operating pressure of 16 bar
- IP54 enclosure protection
- Suitable for demanding commercial and industrial installations
What's Included
- 2 x Grundfos CRIE 3-2 vertical multistage pumps
- Integrated variable speed permanent magnet motors
- GENIECON multi-pump controller
- 10-inch touchscreen control interface
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring
- 8L diaphragm pressure tank
- Stainless steel common base frame
- Factory preconfigured and tested booster system
SPECIFICATIONS
| Max Flow | 180 LPM |
| Max Head | 19 m |
| Power | 2 x 0.37 kW / 400v |
| Rated Current | 6.7 Amps |
| Suitable For | Commercial Water Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the Grundfos Hydro MPC-E 2 CRIE 3-2 designed for?
The Hydro MPC-E 2 CRIE 3-2 is designed for clean water transfer and pressure boosting in commercial buildings, irrigation systems, industrial applications, high-rise buildings and water supply systems where reliable and consistent pressure is required.
How does the Hydro MPC-E maintain constant water pressure?
The system uses two variable speed CRIE pumps controlled by the GENIECON controller. Pump speed is continuously adjusted to match water demand, with pumps automatically staged in and out as required to maintain the desired system pressure efficiently.
What happens if one of the pumps develops a fault?
The Hydro MPC-E features automatic pump changeover based on load, operating time and fault conditions. If one pump experiences a fault, the control system can utilise the remaining available pump, subject to the flow and pressure requirements of the installation.
Does this booster pump set include a pressure tank?
Yes. This specific 93637486 configuration includes an 8L diaphragm pressure tank, along with stainless steel manifolds, non-return valves, isolation valves, pressure sensors/transmitters and a pressure gauge.
What electrical supply does this booster system require?
The Hydro MPC-E 2 CRIE 3-2 is designed for a 3 x 400V, 50Hz electrical supply. It uses two 0.37kW CRIE pumps with high-efficiency permanent magnet motors and integrated frequency converters.
