SKU: 93637569

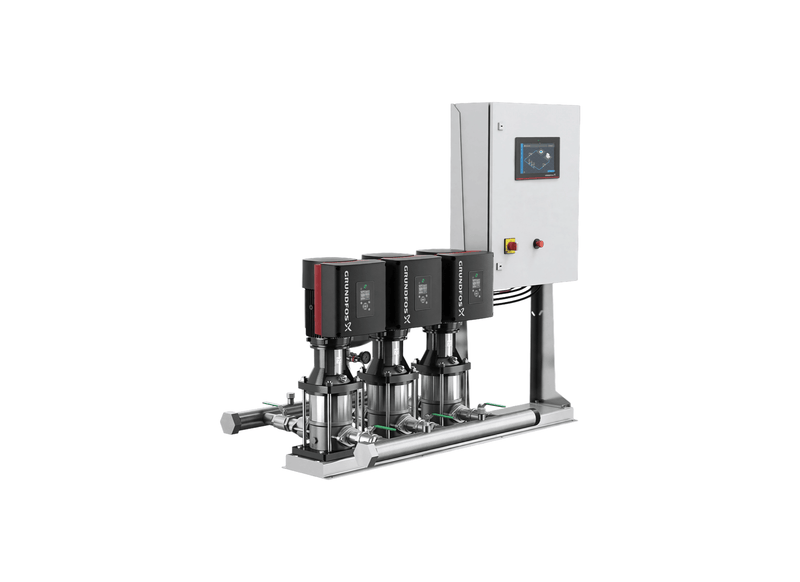

Grundfos Hydro MPC-E 3 x CRIE 10-6 Three Phase 3 x 4kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Business parks adding tenancies faster than their mains can serve rely on booster systems with no tolerance for pressure variation, and the Hydro MPC-E 3 CRIE 10-6 is engineered for exactly that duty. Part number 93637569 provides the complete tested package in a single order line.
It handles flows up to 780 L/min across the system. The pumps can develop up to 87 metres of head when pressure demand increases. A Grundfos GENIECON PANEL on the common base frame provides the system control; the GENIECON UNIT within it holds the exact hydraulic and electrical data of the pumps, so staging and changeover decisions are based on the pumps' actual curves.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 80 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus an 8L diaphragm tank. It is designed for 3 x 400 V power at 50 Hz with a rated current of 22.9 A, with IP54 motor protection and a 16 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C.
Typical duty sits with water supply networks, high-rise developments and commercial buildings. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Each main pump is rated 4 kW (P2), so per-pump draw scales down as speed follows demand.
- Inlet pressure monitoring provides dry-running protection if the suction supply is insufficient.
- An integrated 8L diaphragm tank carries small draw-offs and limits pump cycling.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- The touch-panel GENIECON interface shows system status and allows direct setpoint changes on the door.
- The system pairs three CRIE 10-6 pumps in parallel duty, controlled as a single coordinated system.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- The GENIECON UNIT applies the pumps' exact hydraulic and electrical data when making control decisions.
- Frequency converters on the motors pair with permanent magnet motors for efficient part-load operation.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Stainless steel manifolds provide two 80 mm manifold connections ready for pipework.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
What's Included
- 3 x Grundfos CRIE 10-6 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- GENIECON PANEL with touch display
- GENIECON multi-pump control unit
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring (dry-run protection)
- 8L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 780 L/Min |
| Max Head | 87 m |
| Power | 3 x 4 kW / 415v |
| Rated Current | 22.9 Amps |
| Suitable For | Commercial Water Supply, Irrigation and Transfer Duty |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much vertical head capability does this multi pump booster package provide for distribution?
Under peak line requirements, the Grundfos Hydro MPC-E 3 CRIE 10-6 V1 GA-A-A-AG delivers a maximum vertical head of 87 m and accommodates working system pressures up to 16 bar.
What plumbing connection sizing and non return check valves are provided on this booster assembly?
Factory pipework configuration on the Hydro MPC-E 3 CRIE 10-6 incorporates DN80 stainless steel manifolds, complete with individual pump isolating valves and line non-return valves.
What factory warranty period backs this variable speed booster system?
Factory backing for the Hydro-MPC-E-3-CRIE-10-6 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
Under peak consumption conditions, what water volume does this packaged booster set deliver?
At full operational capacity, the Hydro MPC E 3 CRIE 10 6 provides up to 780 L/min total water throughput to satisfy heavy facility consumption requirements.
How are the parallel centrifugal pumps powered and speed regulated across variable flow demands?
Power for the 3 CRIE 10-6 (Hydro MPC-E) is delivered via three high-efficiency variable frequency drive MGE electric motors of 4 kW each, wired for a 3 x 400 V electrical supply with built-in speed regulation.
