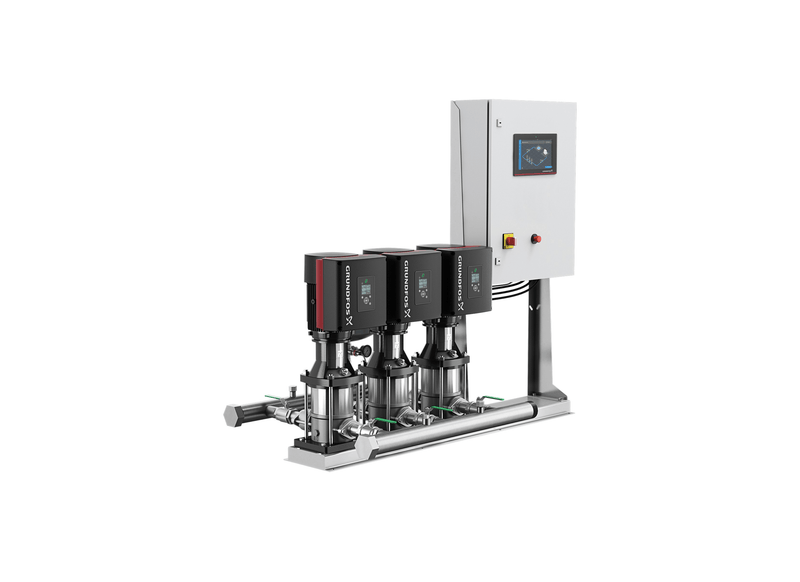

Grundfos Hydro MPC-E 3 x CRIE 15-1 Three Phase 3 x 1.5kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Plant room engineers seeking fully integrated variable-speed booster packages select the Grundfos Hydro MPC-E 3 x CRIE 15-1 Three Phase 3 x 1.5kW 304ss Booster System w/8L Tank and CU 352 Controller. Three Grundfos CRIE 15-1 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93637579 provides the complete tested package in a single order line.
The multi-stage centrifugal system maintains high-efficiency discharge up to 1420 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 19.6 metres of head. A Grundfos GENIECON PANEL on the common base frame provides system control; the GENIECON unit inside holds the exact hydraulic data of the pumps to stage operation precisely according to real-time curve demand.
Plant room installation is simplified by an integrated, forklift-compatible base frame. The set is fully pre-plumbed with two 100 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 400 V supply at 50 / 60 Hz with combined rated current of 9.3 A (3 x 3.1 A per pump). A 8L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Engineered for textile manufacturing mills, industrial dyehouses, and garment washers. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Peak volumetric clean water delivery flow up to 1420 L/min
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Integrated multi-pump array featuring three Grundfos CRIE 15-1 multistage pumps
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Combined rated current draw of 9.3 A (3 x 3.1 A per pump)
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Permissible liquid temperature range from 5°C to 60°C
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Electrical supply rating: 3 x 400 V at 50 / 60 Hz
- Maximum vertical delivery head up to 19.6 metres
- Factory-fitted 8L diaphragm pressure tank to suppress water hammer
- Pre-plumbed with two 100 mm manifold connections and isolating non-return valves
What's Included
- Grundfos Hydro MPC-E 3 CRIE 15-1 V1 GA-A-A-AG Factory-Tested Booster Skid
- Three x Grundfos CRIE 15-1 Multistage Pumps with Integrated Frequency Converters
- Grundfos GENIECON Panel Multi-Pump Control System
- 1 x Factory-Mounted 8L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 100 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 1420 L/Min |
| Max Head | 19 m |
| Power | 3 x 1.5 kW / 415v |
| Rated Current | 3 x 3.1 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid discharge rate does this parallel pump package supply across the distribution ringmain?
Supplying high-demand pipework networks, the Grundfos Hydro MPC-E 3 CRIE 15-1 V1 GA-A-A-AG (part number 93637579) discharges a maximum fluid flow rate of 1420 L/min.
What electrical motor technology drives the vertical multistage pumps in this booster assembly?
Motor propulsion powering the Hydro MPC-E 3 CRIE 15-1 features three 1.5 kW IE5 permanent-magnet MGE electric units configured for a 3 x 400 V electrical line.
What dynamic head and system working pressure rating does this multi-pump booster set maintain?
Elevation lift capacity on the Hydro-MPC-E-3-CRIE-15-1 develops up to 19.6 m total dynamic head backed by an 16 bar rated pressure threshold.
How are the parallel pumps plumbed with isolating valves and non-return check valves?
Plumbed for rapid site installation, the Hydro MPC E 3 CRIE 15 1 includes DN 100 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
How is this variable speed booster system protected by factory warranty terms?
Manufacturer coverage on the 3 CRIE 15-1 (Hydro MPC-E) includes a genuine Grundfos two-year factory warranty backed by nationwide Australian technical support and spare parts.
