SKU: 93637584

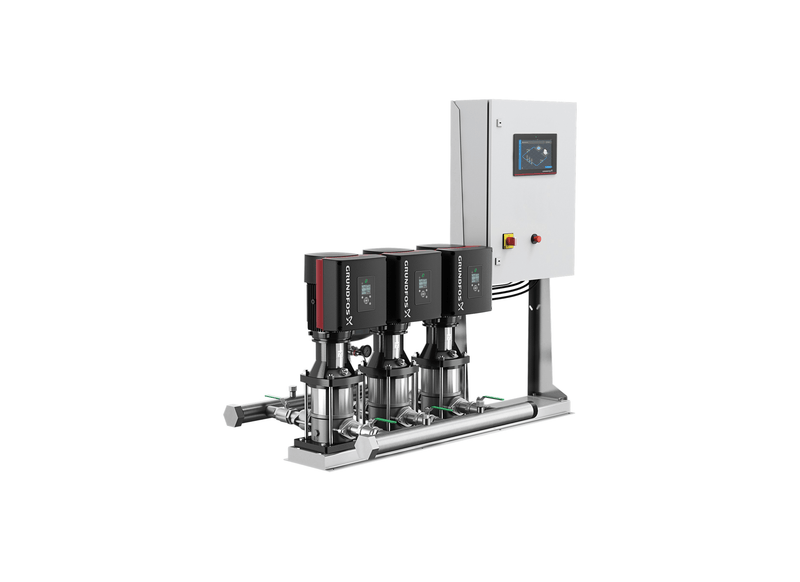

Grundfos Hydro MPC-E 3 x CRIE 15-2 Three Phase 3 x 3kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Commercial facility teams requiring automated duty rotation and pump redundancy specify the Grundfos Hydro MPC-E 3 x CRIE 15-2 Three Phase 3 x 3kW 304ss Booster System w/8L Tank and CU 352 Controller. Three Grundfos CRIE 15-2 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93637584 provides the complete tested package in a single order line.
Designed to eliminate system pressure dips, peak hydraulic delivery extends up to 1420 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 39.9 metres of head. A Grundfos GENIECON PANEL on the common base frame provides system control; the GENIECON unit inside holds the exact hydraulic data of the pumps to stage operation precisely according to real-time curve demand.
The fully integrated booster skid is mounted on a heavy-duty structural platform. The set is fully pre-plumbed with two 100 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 400 V supply at 50 / 60 Hz with combined rated current of 17.7 A (3 x 5.9 A per pump). A 8L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Perfect for large-scale secondary boarding schools, sports colleges, and dining halls. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Combined rated current draw of 17.7 A (3 x 5.9 A per pump)
- Maximum vertical delivery head up to 39.9 metres
- Peak volumetric clean water delivery flow up to 1420 L/min
- Factory-fitted 8L diaphragm pressure tank to suppress water hammer
- Permissible liquid temperature range from 5°C to 60°C
- Electrical supply rating: 3 x 400 V at 50 / 60 Hz
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Pre-plumbed with two 100 mm manifold connections and isolating non-return valves
- Integrated multi-pump array featuring three Grundfos CRIE 15-2 multistage pumps
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Industrial IP55 dust and moisture ingress protection on all pump drives
What's Included
- Grundfos Hydro MPC-E 3 CRIE 15-2 V1 GA-A-A-AG Factory-Tested Booster Skid
- Three x Grundfos CRIE 15-2 Multistage Pumps with Integrated Frequency Converters
- Grundfos GENIECON Panel Multi-Pump Control System
- 1 x Factory-Mounted 8L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 100 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 1420 L/Min |
| Max Head | 39 m |
| Power | 3 x 3 kW / 415v |
| Rated Current | 3 x 5.9 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which variable speed motor technology provides mechanical power to the pumps on this skid?
Mechanical propulsion across the Grundfos Hydro MPC-E 3 CRIE 15-2 V1 GA-A-A-AG (part number 93637584) utilises three 3 kW IE5 permanent-magnet MGE electric motors running on a 3 x 400 V mains feed.
Under peak elevation requirements, what total dynamic head does this booster set achieve?
Vertical discharge capability on the Hydro MPC-E 3 CRIE 15-2 supplies up to 39.9 m dynamic elevation head while maintaining 16 bar pressure tolerance.
What manifold port diameters and check valve fittings connect the pumps on this booster assembly?
Piping infrastructure across the Hydro-MPC-E-3-CRIE-15-2 supplies factory-fitted DN 100 stainless steel suction and discharge headers with line check valves and isolating valves.
What manufacturer warranty backing supports this packaged variable speed pump set?
Protection on the Hydro MPC E 3 CRIE 15 2 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
Which water throughput capacity does this multi-pump booster set maintain during maximum facility draw?
When all pumps run simultaneously, the 3 CRIE 15-2 (Hydro MPC-E) maintains a total delivery throughput of up to 1420 L/min.
