SKU: 93637589

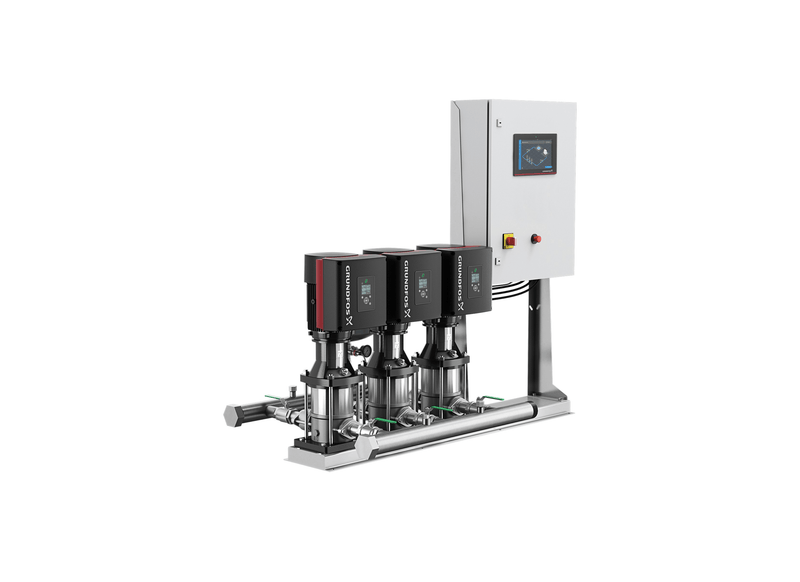

Grundfos Hydro MPC-E 3 x CRIE 15-3 Three Phase 3 x 4kW 304ss Booster System w/18L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Providing constant pressure across extensive commercial reticulation loops, the Grundfos Hydro MPC-E 3 x CRIE 15-3 Three Phase 3 x 4kW 304ss Booster System w/18L Tank and CU 352 Controller optimizes energy consumption. Three Grundfos CRIE 15-3 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93637589 provides the complete tested package in a single order line.
Engineered for multi-storey vertical distribution, fluid handling capacity peaks at 1420 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 60.9 metres of head. A Grundfos GENIECON PANEL on the common base frame provides system control; the GENIECON unit inside holds the exact hydraulic data of the pumps to stage operation precisely according to real-time curve demand.
Mechanical integrity is assured through a vibration-damped, laser-cut mounting base. The set is fully pre-plumbed with two 100 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 415 V supply at 50 / 60 Hz with combined rated current of 22.9 A (3 x 7.6 A per pump). A 18L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Recommended for dairy farms, milking shed wash-down systems, and milk-room amenities. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Permissible liquid temperature range from 5°C to 60°C
- Combined rated current draw of 22.9 A (3 x 7.6 A per pump)
- Peak volumetric clean water delivery flow up to 1420 L/min
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Pre-plumbed with two 100 mm manifold connections and isolating non-return valves
- Electrical supply rating: 3 x 415 V at 50 / 60 Hz
- Factory-fitted 18L diaphragm pressure tank to suppress water hammer
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Maximum vertical delivery head up to 60.9 metres
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Integrated multi-pump array featuring three Grundfos CRIE 15-3 multistage pumps
What's Included
- Grundfos Hydro MPC-E 3 CRIE 15-3 V1 GA-A-A-AG Factory-Tested Booster Skid
- Three x Grundfos CRIE 15-3 Multistage Pumps with Integrated Frequency Converters
- Grundfos GENIECON Panel Multi-Pump Control System
- 1 x Factory-Mounted 18L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 100 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 1420 L/Min |
| Max Head | 60 m |
| Power | 3 x 4 kW / 415v |
| Rated Current | 3 x 7.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much elevation lift and maximum discharge pressure can this multistage booster unit maintain?
Delivering high-elevation lift, the Grundfos Hydro MPC-E 3 CRIE 15-3 V1 GA-A-A-AG (part number 93637589) maintains up to 60.9 m dynamic head with an allowable working pressure of 16 bar.
Which suction and discharge pipe connections and isolating valves are fitted to this package?
Factory manifold integration on the Hydro MPC-E 3 CRIE 15-3 incorporates DN 100 stainless steel suction and discharge pipework with individual check valves and isolating valves.
What factory warranty protection is provided for this multi-pump booster package?
Australian technical protection for the Hydro-MPC-E-3-CRIE-15-3 includes a genuine Grundfos two-year manufacturer warranty supported by factory-trained technicians and spare components.
Under peak operational conditions, what fluid volume does this variable speed booster package provide?
Under maximum water demand, the Hydro MPC E 3 CRIE 15 3 delivers a peak displacement rate of 1420 L/min across parallel centrifugal stages.
What motor technology and frequency drive system provides propulsion for this booster package?
Variable speed propulsion on the 3 CRIE 15-3 (Hydro MPC-E) utilizes three 4 kW IE5 permanent-magnet MGE electric motors connected to a 3 x 415 V power line.
