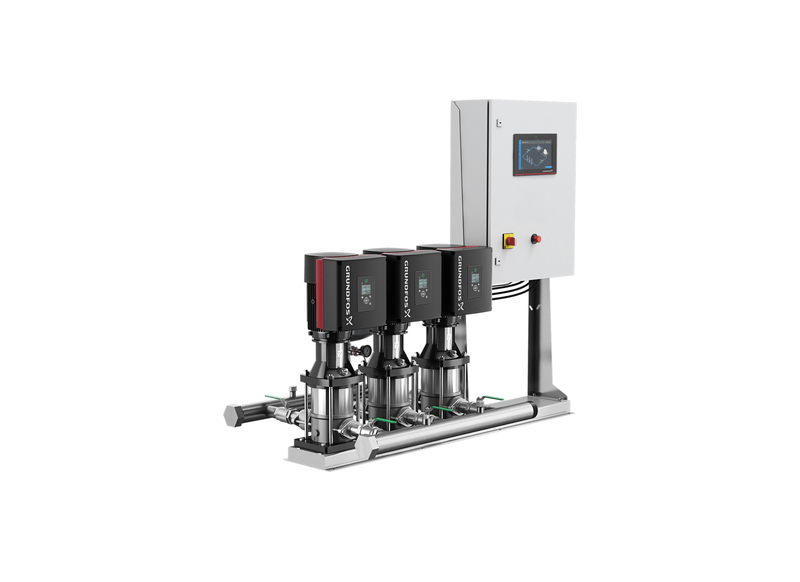

Grundfos Hydro MPC-E 3 x CRIE 15-5 Three Phase 3 x 7.5kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
To prevent line pressure sags during heavy commercial draw-off periods, contractors install the Grundfos Hydro MPC-E 3 x CRIE 15-5 Three Phase 3 x 7.5kW 304ss Booster System w/8L Tank and CU 352 Controller. Three Grundfos CRIE 15-5 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93637599 provides the complete tested package in a single order line.
Under varying plant load conditions, total discharge volume smoothly scales up to 1420 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 101.2 metres of head. A Grundfos GENIECON PANEL on the common base frame provides system control; the GENIECON unit inside holds the exact hydraulic data of the pumps to stage operation precisely according to real-time curve demand.
Designed for minimal acoustic transmission, the pumps rest on an isolated base frame. The set is fully pre-plumbed with two 100 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 400 V supply at 50 / 60 Hz with combined rated current of 41.7 A (3 x 13.9 A per pump). A 8L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Suited to luxury penthouse developments, high-end residential estates, and private clubs. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Integrated multi-pump array featuring three Grundfos CRIE 15-5 multistage pumps
- Factory-fitted 8L diaphragm pressure tank to suppress water hammer
- Maximum vertical delivery head up to 101.2 metres
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Combined rated current draw of 41.7 A (3 x 13.9 A per pump)
- Peak volumetric clean water delivery flow up to 1420 L/min
- Pre-plumbed with two 100 mm manifold connections and isolating non-return valves
- Permissible liquid temperature range from 5°C to 60°C
- Electrical supply rating: 3 x 400 V at 50 / 60 Hz
- Dual pressure transmitters providing continuous line monitoring and fault failover
What's Included
- Grundfos Hydro MPC-E 3 CRIE 15-5 V1 GA-A-D-AG Factory-Tested Booster Skid
- Three x Grundfos CRIE 15-5 Multistage Pumps with Integrated Frequency Converters
- Grundfos GENIECON Panel Multi-Pump Control System
- 1 x Factory-Mounted 8L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 100 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 1420 L/Min |
| Max Head | 101 m |
| Power | 3 x 7.5 kW / 415v |
| Rated Current | 3 x 13.9 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which warranty protection and technical support covers this packaged booster assembly?
Complete skid backing for the Grundfos Hydro MPC-E 3 CRIE 15-5 V1 GA-A-D-AG (part number 93637599) includes an authentic Grundfos two-year manufacturer warranty covering the motors, wet ends, and integrated controls.
What volumetric liquid delivery can this multi-pump package supply for building water distribution?
Under maximum plant draw, the Hydro MPC-E 3 CRIE 15-5 supplies up to 1420 L/min of clean water through parallel multistage stages.
How are the pump wet ends powered and electronically controlled during variable demand hours?
Electrical propulsion across the Hydro-MPC-E-3-CRIE-15-5 utilizes three 7.5 kW IE5 permanent-magnet MGE electric motors wired for 3 x 400 V supply.
What vertical discharge head and system pressure rating does this packaged booster unit generate?
Under peak line requirements, the Hydro MPC E 3 CRIE 15 5 delivers a maximum vertical head of 101.2 m and accommodates system pressures up to 16 bar.
Which pipe connection fittings and check valves are assembled onto this packaged booster skid?
Pre-assembled manifold pipework on the 3 CRIE 15-5 (Hydro MPC-E) includes DN 100 stainless steel suction and discharge headers with isolating valves and non-return valves.
