SKU: 93637610

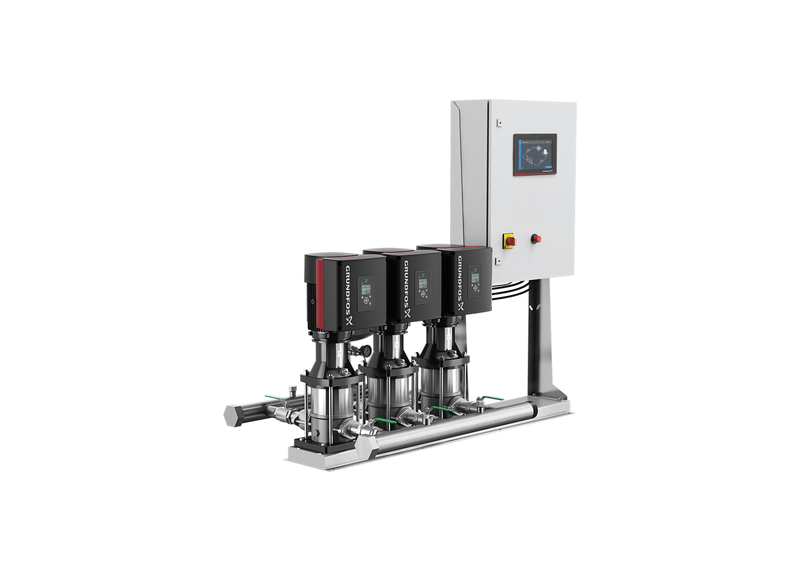

Grundfos Hydro MPC-E 3 x CRIE 20-1 Three Phase 3 x 2.2kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Engineered to meet the highest Australasian commercial plumbing standards, the Grundfos Hydro MPC-E 3 x CRIE 20-1 Three Phase 3 x 2.2kW 304ss Booster System w/8L Tank and CU 352 Controller delivers reliable water delivery. Three Grundfos CRIE 20-1 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93637610 provides the complete tested package in a single order line.
The heavy-duty multistage assemblies comfortably handle peak line flows up to 1750 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 20.9 metres of head. A Grundfos GENIECON PANEL on the common base frame provides system control; the GENIECON unit inside holds the exact hydraulic data of the pumps to stage operation precisely according to real-time curve demand.
Engineered for harsh commercial duties, the package features an ultra-sturdy base. The set is fully pre-plumbed with two 100 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 400 V supply at 50 / 60 Hz with combined rated current of 12.9 A (3 x 4.3 A per pump). A 8L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Tailored for public transport depots, tram maintenance centres, and passenger concourses. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Permissible liquid temperature range from 5°C to 60°C
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Maximum vertical delivery head up to 20.9 metres
- Combined rated current draw of 12.9 A (3 x 4.3 A per pump)
- Electrical supply rating: 3 x 400 V at 50 / 60 Hz
- Peak volumetric clean water delivery flow up to 1750 L/min
- Pre-plumbed with two 100 mm manifold connections and isolating non-return valves
- Integrated multi-pump array featuring three Grundfos CRIE 20-1 multistage pumps
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Factory-fitted 8L diaphragm pressure tank to suppress water hammer
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
What's Included
- Grundfos Hydro MPC-E 3 CRIE 20-1 V1 GA-A-A-AG Factory-Tested Booster Skid
- Three x Grundfos CRIE 20-1 Multistage Pumps with Integrated Frequency Converters
- Grundfos GENIECON Panel Multi-Pump Control System
- 1 x Factory-Mounted 8L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 100 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 1750 L/Min |
| Max Head | 20 m |
| Power | 3 x 2.2 kW / 415v |
| Rated Current | 3 x 4.3 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electric motor power and supply voltage powers each pump in this packaged booster set?
Variable frequency drive electronics on the Grundfos Hydro MPC-E 3 CRIE 20-1 V1 GA-A-A-AG (part number 93637610) control three IE5 permanent-magnet MGE electric motors of 2.2 kW each from a 3 x 400 V power supply.
Which system working pressure and maximum vertical head does this multistage booster unit produce?
Header line pressure created by the Hydro MPC-E 3 CRIE 20-1 delivers up to 20.9 m total dynamic head across pipework rated up to 16 bar.
How are the parallel centrifugal pumps connected to common suction and discharge manifolds?
Interconnecting fluid headers on the Hydro-MPC-E-3-CRIE-20-1 incorporate DN 100 stainless steel suction and discharge pipework with built-in isolating valves and non-return valves.
How is this multistage booster skid protected under manufacturer warranty terms?
The complete factory package of the Hydro MPC E 3 CRIE 20 1 is supported by a Grundfos two-year manufacturer warranty encompassing the base skid, motors, and wet ends.
How much discharge water flow does this variable speed booster unit supply across the distribution ringmain?
Discharge performance allows the 3 CRIE 20-1 (Hydro MPC-E) to supply up to 1750 L/min of water across distribution ringmains.
