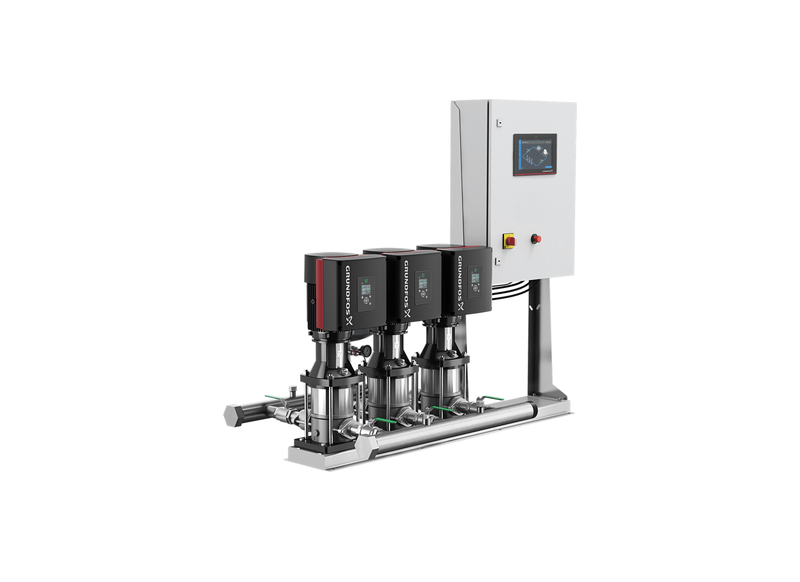

Grundfos Hydro MPC-E 3 x CRIE 20-2 Three Phase 3 x 4kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Large-scale commercial developments with multi-tier plumbing networks operate the Grundfos Hydro MPC-E 3 x CRIE 20-2 Three Phase 3 x 4kW 304ss Booster System w/8L Tank and CU 352 Controller. Three Grundfos CRIE 20-2 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93637615 provides the complete tested package in a single order line.
Configured for demanding industrial and commercial duty, output volume attains 1750 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 41.7 metres of head. A Grundfos GENIECON PANEL on the common base frame provides system control; the GENIECON unit inside holds the exact hydraulic data of the pumps to stage operation precisely according to real-time curve demand.
The complete pumping assembly is built on a torsionally balanced steel base frame. The set is fully pre-plumbed with two 100 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 400 V supply at 50 / 60 Hz with combined rated current of 22.9 A (3 x 7.6 A per pump). A 8L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Built for meat processing works, poultry abattoirs, and seafood packaging factories. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Peak volumetric clean water delivery flow up to 1750 L/min
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Permissible liquid temperature range from 5°C to 60°C
- Pre-plumbed with two 100 mm manifold connections and isolating non-return valves
- Factory-fitted 8L diaphragm pressure tank to suppress water hammer
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Combined rated current draw of 22.9 A (3 x 7.6 A per pump)
- Electrical supply rating: 3 x 400 V at 50 / 60 Hz
- Integrated multi-pump array featuring three Grundfos CRIE 20-2 multistage pumps
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Maximum vertical delivery head up to 41.7 metres
What's Included
- Grundfos Hydro MPC-E 3 CRIE 20-2 V1 GA-A-A-AG Factory-Tested Booster Skid
- Three x Grundfos CRIE 20-2 Multistage Pumps with Integrated Frequency Converters
- Grundfos GENIECON Panel Multi-Pump Control System
- 1 x Factory-Mounted 8L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 100 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 1750 L/Min |
| Max Head | 41 m |
| Power | 3 x 4 kW / 415v |
| Rated Current | 3 x 7.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What total dynamic head and system working pressure does this packaged booster assembly deliver?
Peak vertical head generated by the Grundfos Hydro MPC-E 3 CRIE 20-2 V1 GA-A-A-AG (part number 93637615) reaches up to 41.7 m across distribution pipework under an 16 bar pressure envelope.
What manifold port sizing and plumbing hardware connects the centrifugal pumps on this skid?
Parallel skid pipework on the Hydro MPC-E 3 CRIE 20-2 features DN 100 stainless steel suction and discharge headers fitted with isolating valves and discharge non-return valves.
Under what manufacturer warranty terms is this packaged booster set backed?
Factory warranty backing on the Hydro-MPC-E-3-CRIE-20-2 provides an authentic Grundfos two-year manufacturer warranty protecting the complete parallel booster skid assembly.
What maximum water flow can this packaged multi-pump assembly supply during peak consumption hours?
At full operational capacity, the Hydro MPC E 3 CRIE 20 2 supplies up to 1750 L/min total liquid throughput into pressurised pipework.
How is mechanical drive power and electronic speed control configured on this booster unit?
Integrated frequency converters on the 3 CRIE 20-2 (Hydro MPC-E) modulate three IE5 permanent-magnet MGE electric motors rated at 4 kW each from a 3 x 400 V power supply.
