SKU: 93637523

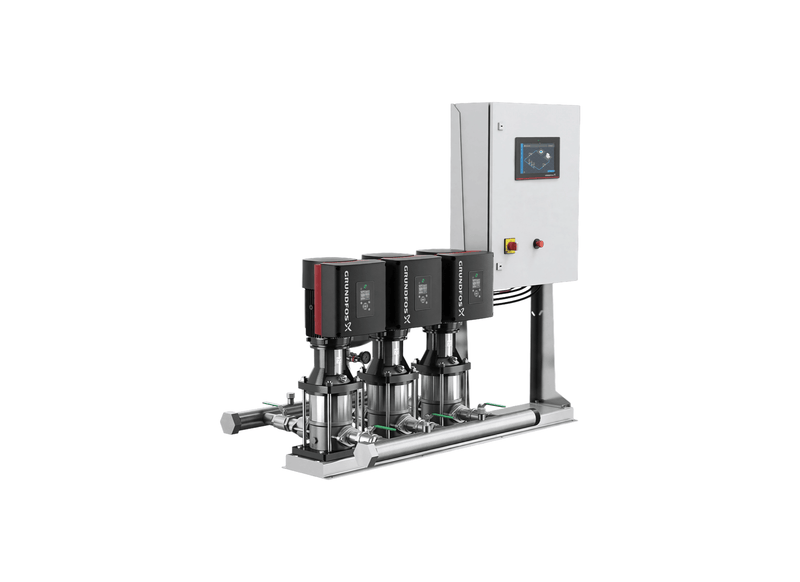

Grundfos Hydro MPC-E 3 x CRIE 5-4 Single Phase 3 x 1.1kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Sites such as day spas and compact medical centres running half a dozen outlets at once require consistent pressure regardless of demand fluctuation; the Hydro MPC-E 3 CRIE 5-4 achieves this with three CRIE 5-4 pumps operating in parallel. The complete system ships factory assembled and tested under part number 93637523.
The system supports flow rates up to 497 L/min. It can develop up to 38 metres of head for dependable pressure boosting. Control sits with the GENIECON multi-pump controller in its touch-equipped panel, adjusting each pump individually and rotating duty by load, run hours and faults.
The three-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 50 mm manifold connections, valves, sensors and a pressure gauge, plus an 8L diaphragm tank. Electrical supply is 3 x 230 V at 50 Hz with a rated current of 6.7 A. The motors have IP54 protection and the system is rated to 16 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C.
Typical duty sits with high-rise developments, water supply networks and commercial buildings. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Rated 1.1 kW (P2) on every main pump in the frame.
- Control decisions come from real pump curves, not generic models, via the GENIECON UNIT.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Frequency converters on the motors pair with permanent magnet motors for efficient part-load operation.
- The system pairs three CRIE 5-4 pumps in parallel duty, controlled as a single coordinated system.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- The stainless steel manifold assembly is supplied with two 50 mm manifold connections.
- A suction-side pressure sensor guards the pumps against dry running.
- The touch-panel GENIECON interface shows system status and allows direct setpoint changes on the door.
- An integrated 8L diaphragm tank carries small draw-offs and limits pump cycling.
What's Included
- 3 x Grundfos CRIE 5-4 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- GENIECON PANEL with touch display
- GENIECON multi-pump control unit
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring (dry-run protection)
- 8L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 497 L/Min |
| Max Head | 38 m |
| Power | 3 x 1.1 kW / 240v |
| Rated Current | 6.7 Amps |
| Suitable For | Commercial Water Supply, Irrigation and Transfer Duty |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What plumbing manifold connections and valve equipment are factory mounted on this assembly?
Header plumbing on the Grundfos Hydro MPC-E 3 CRIE 5-4 VN GA-A-A-AG provides R 2" stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
Which manufacturer warranty terms protect this packaged variable frequency booster set?
Protection on the Hydro MPC-E 3 CRIE 5-4 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
How much discharge water volume can this parallel booster assembly supply during peak periods?
Under maximum network draw, the Hydro-MPC-E-3-CRIE-5-4 supplies a peak fluid flow rate of up to 497 L/min across its variable speed centrifugal stages.
How are the multistage pumps driven and electronically regulated across fluctuating demand?
Propulsion across the Hydro MPC E 3 CRIE 5 4 is supplied by three variable frequency drive MGE electric motors rated at 1.1 kW each, operating on a 3 x 230 V electrical supply with integrated frequency converters for precise pressure control.
What maximum discharge head and system pressure does this parallel centrifugal skid maintain?
For vertical pressure boosting, the 3 CRIE 5-4 (Hydro MPC-E) produces up to 38 m total elevation head with a 16 bar maximum working pressure envelope.
