SKU: 93637796

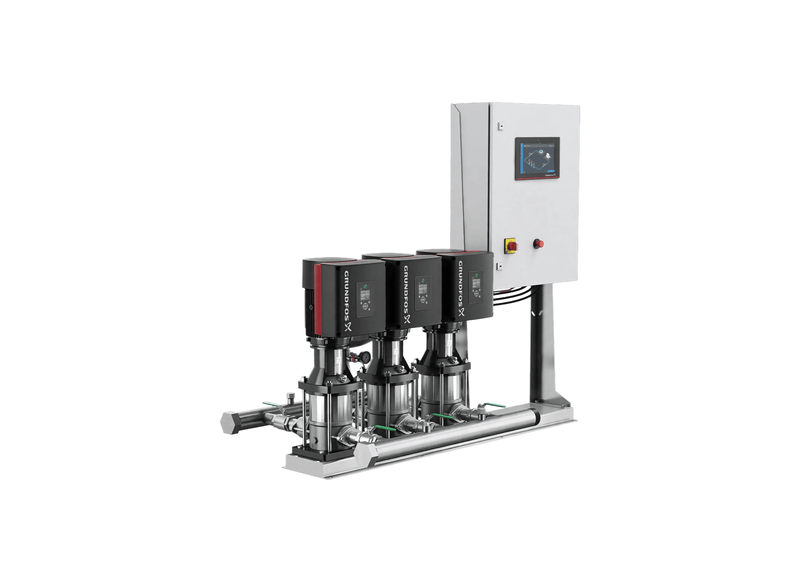

Grundfos Hydro MPC-E 3 x CRNE 5-9 Three Phase 3 x 2.2kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Small sites where a duty-point review calls for reserve pump capacity rely on booster systems with no tolerance for pressure variation, and the Hydro MPC-E 3 CRNE 5-9 is engineered for exactly that duty. Quote part number 93637796 to have it arrive pre-configured and ready for the plant room.
This set provides up to 504 L/min of flow capacity. Variable-speed operation can develop up to 89 metres of head where required. A Grundfos GENIECON PANEL on the common base frame provides the system control; the GENIECON UNIT within it holds the exact hydraulic and electrical data of the pumps, so staging and changeover decisions are based on the pumps' actual curves.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 50 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus an 8L diaphragm tank. It is designed for 3 x 400 V power at 50 Hz with a rated current of 12.9 A, with IP54 motor protection and a 16 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C.
Its home ground covers water supply networks, industry and irrigation schemes. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- A suction-side pressure sensor guards the pumps against dry running.
- The stainless steel manifold assembly is supplied with two 50 mm manifold connections.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- At P2 each main pump is 2.2 kW, covering the duty without oversizing the frame.
- Variable speed comes from frequency converters matched to permanent magnet motors, keeping the booster set in its efficient range.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Three Grundfos CRNE 5-9 pumps share the boosting work in parallel.
- GENIECON PANEL control with touch display gives operating staff full staging visibility.
- Rated for 16 bar system pressure; motors carry IP54 protection.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- The set ships with an 8L precharged diaphragm tank for low-flow stability.
- Control decisions come from real pump curves, not generic models, via the GENIECON UNIT.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
What's Included
- 3 x Grundfos CRNE 5-9 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- GENIECON PANEL with touch display
- GENIECON multi-pump control unit
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring (dry-run protection)
- 8L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 504 L/Min |
| Max Head | 89 m |
| Power | 3 x 2.2 kW / 415v |
| Rated Current | 12.9 Amps |
| Suitable For | Commercial Water Supply, Corrosive Transfer Duty |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What manifold sizing and valve hardware connects the parallel pump wet ends on this set?
Header plumbing on the Grundfos Hydro MPC-E 3 CRNE 5-9 V1 GA-A-A-AG provides R 2" stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
What manufacturer warranty protection covers this Grundfos booster assembly?
Protection on the Hydro MPC-E 3 CRNE 5-9 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
Which water delivery capacity does this packaged multi pump unit provide under full operational demand?
Under maximum network draw, the Hydro-MPC-E-3-CRNE-5-9 supplies a peak fluid flow rate of up to 504 L/min across its variable speed centrifugal stages.
How does the integrated variable frequency drive regulate motor speed across changing flow rates?
Propulsion across the Hydro MPC E 3 CRNE 5 9 is supplied by three variable frequency drive MGE electric motors rated at 2.2 kW each, operating on a 3 x 400 V electrical supply with integrated frequency converters for precise pressure control.
Under full operational pressure, what dynamic head does this parallel booster assembly deliver?
For vertical pressure boosting, the 3 CRNE 5-9 (Hydro MPC-E) produces up to 89 m total elevation head with a 16 bar maximum working pressure envelope.
