SKU: 99657289

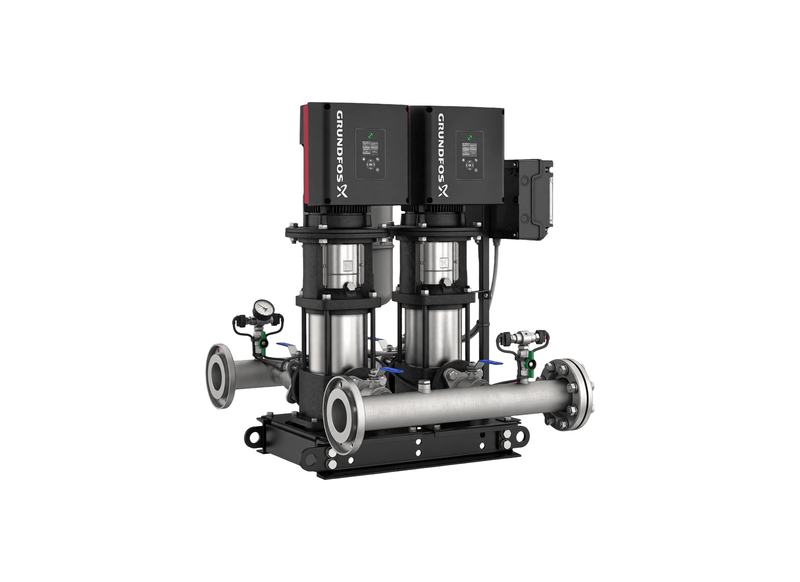

Grundfos Hydro Multi-E 2 x CRE 15-1 Three Phase 2 x 1.1kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
In gymnasiums, aquatic centres and student housing running wall-to-wall showers, the simultaneous demand of the morning peak places heavy loads on the supply; the Hydro Multi-E 2 CRE 15-1 answers with two CRE 15-1 pumps operating in parallel. Specify part number 99657289 and the whole set lands tested, assembled and ready for pipework.
Flow capacity reaches 864 L/min. Up to 19 metres of head is available to maintain pressure as demand changes. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 80 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 4.74 A. The motors have IP54 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Applications include mixed-use commercial buildings, hospitals and hotel plant rooms. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Stainless steel manifolds provide two 80 mm manifold connections ready for pipework.
- Rated 1.1 kW (P2) on every main pump in the frame.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Two Grundfos CRE 15-1 pumps share the boosting work in parallel.
- The system protects its pumps against dry running if the incoming supply is lost.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Rated for 10 bar system pressure; motors carry IP54 protection.
What's Included
- 2 x Grundfos CRE 15-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 864 L/Min |
| Max Head | 19 m |
| Power | 2 x 1.1 kW / 415v |
| Rated Current | 2 x 4.74 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical lift head and maximum working pressure rating does this booster set provide?
Under peak line requirements, the Grundfos Hydro Multi-E 2 CRE 15-1 U2 A-A-I-I-DU delivers a maximum vertical head of 19 m and accommodates working system pressures up to 10 bar.
How are the inlet and discharge connections configured across the parallel pump manifolding?
Factory pipework configuration on the Hydro Multi-E 2 CRE 15-1 incorporates DN 80 stainless steel manifolds, complete with individual pump isolating valves and line non-return valves.
Which factory warranty duration and support terms apply to this packaged booster skid?
Factory backing for the Hydro-Multi-E-2-CRE-15-1 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
What total water volume can this multi pump booster set discharge to pressurised distribution mains?
At full operational capacity, the Hydro Multi E 2 CRE 15 1 provides up to 864 L/min total water throughput to satisfy heavy facility consumption requirements.
Which electric motor configuration and voltage specification powers this packaged booster set?
Power for the 2 CRE 15-1 (Hydro Multi-E) is delivered via two high-efficiency IE5 permanent-magnet MGE electric motors of 1.1 kW each, wired for a 3 x 380-415 V electrical supply with built-in speed regulation.
