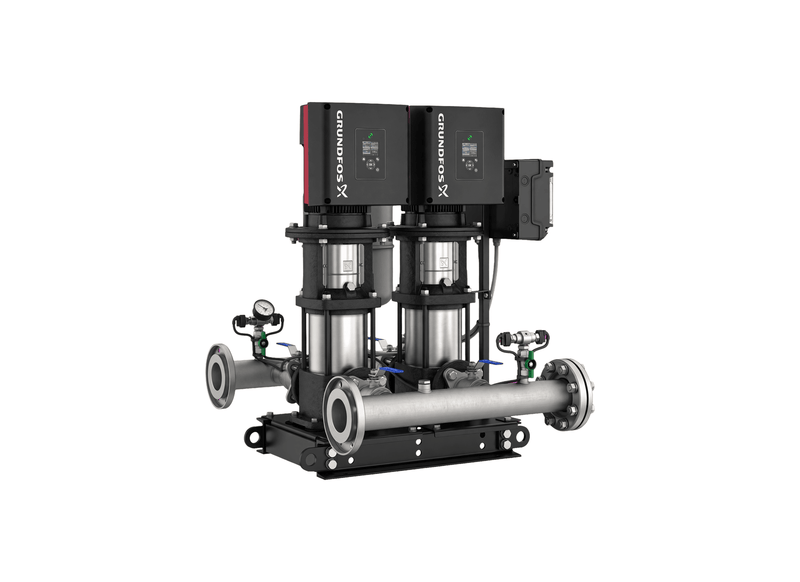

Grundfos Hydro Multi-E 2 x CRE 15-8 Three Phase 2 x 7.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
For gymnasiums, aquatic centres and student housing running wall-to-wall showers, a factory-assembled Hydro Multi-E 2 CRE 15-8 package provides a well-matched solution, with two CRE 15-8 pumps staged against the demand curve. Quote part number 99614462 to have it arrive pre-configured and ready for the plant room.
The system supports flow rates up to 843 L/min. It can develop up to 158 metres of head for dependable pressure boosting. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 80 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 30 A. The motors have IP54 protection and the system is rated to 16 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Applications include mixed-use commercial buildings, schools and universities and aged-care complexes. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- The stainless steel manifold assembly is supplied with two 80 mm manifold connections.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- At P2 each main pump is 7.5 kW, covering the duty without oversizing the frame.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- The system pairs two CRE 15-8 pumps in parallel duty, controlled as a single coordinated system.
- Rated for 16 bar system pressure; motors carry IP54 protection.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
What's Included
- 2 x Grundfos CRE 15-8 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 843 L/Min |
| Max Head | 158 m |
| Power | 2 x 7.5 kW / 415v |
| Rated Current | 2 x 30 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the parallel pump wet ends interconnected with suction and discharge manifolding?
Header plumbing on the Grundfos Hydro Multi-E 2 CRE 15-8 U2 A-A-I-I-DU provides DN 80 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
What factory warranty backing and service protection covers this booster set?
Protection on the Hydro Multi-E 2 CRE 15-8 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
Under high water usage periods, what displacement flow rate does this packaged booster set generate?
Under maximum network draw, the Hydro-Multi-E-2-CRE-15-8 supplies a peak fluid flow rate of up to 843 L/min across its variable speed centrifugal stages.
Which motor drive technology and electrical power supply operates this packaged booster system?
Propulsion across the Hydro Multi E 2 CRE 15 8 is supplied by two IE5 permanent-magnet MGE electric motors rated at 7.5 kW each, operating on a 3 x 380-415 V electrical supply with integrated frequency converters for precise pressure control.
How much vertical head capability does this multi pump booster package provide for distribution?
For vertical pressure boosting, the 2 CRE 15-8 (Hydro Multi-E) produces up to 158 m total elevation head with a 16 bar maximum working pressure envelope.
