SKU: 93320242

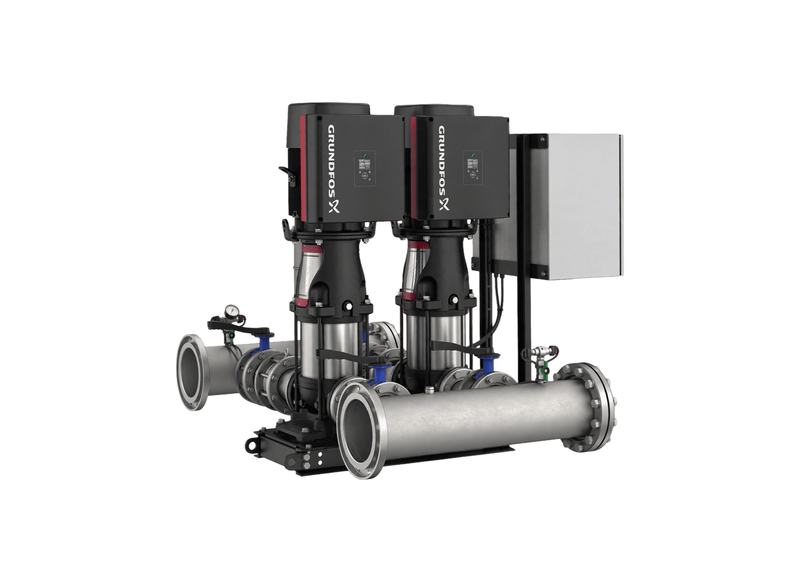

Grundfos Hydro Multi-E 2 x CRE 32-5-2 Three Phase 2 x 15kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Sites such as stadium amenities and convention centres that fill to the brim in short bursts require consistent pressure regardless of demand fluctuation; the Hydro Multi-E 2 CRE32-5-2 achieves this with two CRE 32-5 pumps operating in parallel. Specify part number 93320242 and the whole set lands tested, assembled and ready for pipework.
Flow capacity reaches 1634 L/min. Up to 131 metres of head is available to maintain pressure as demand changes. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 100 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 51.6 A, with IP54 motor protection and a 16 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Applications include mixed-use commercial buildings, industrial process supply and hotel plant rooms. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Two Grundfos CRE 32-5 pumps share the boosting work in parallel.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- The system protects its pumps against dry running if the incoming supply is lost.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Rated 15 kW (P2) on every main pump in the frame.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- The stainless steel manifold assembly is supplied with two 100 mm manifold connections.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
What's Included
- 2 x Grundfos CRE 32-5 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 1634 L/Min |
| Max Head | 131 m |
| Power | 2 x 15 kW / 415v |
| Rated Current | 2 x 51.6 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid discharge rate does this parallel pump package supply across the distribution ringmain?
Operating across its factory curve, the Grundfos Hydro Multi-E 2 CRE32-5-2 U2 A-A-I-I-D discharges up to 1634 L/min of clean water to maintain consistent line pressure during peak demand cycles.
What electrical motor technology drives the vertical multistage pumps in this booster assembly?
Each centrifugal stage of the Hydro Multi-E 2 CRE32-5-2 is driven by a 15 kW IE5 permanent-magnet MGE electric motor running on 3 x 380-415 V power, utilizing built-in variable speed drives to adjust output dynamically.
What dynamic head and system working pressure rating does this multi pump booster set maintain?
Elevating water across multi-level pipework, the Hydro-Multi-E-2-CRE32-5-2 maintains up to 131 m total dynamic head with an overall 16 bar maximum operating limit.
How are the parallel pump stages plumbed with isolating valves and non return check valves?
Plumbed for rapid site installation, the Hydro Multi E 2 CRE32 5 2 includes DN 100 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
How is this variable speed booster system protected by factory warranty terms?
Grundfos provides two-year manufacturer warranty coverage on the 2 CRE32-5-2 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
