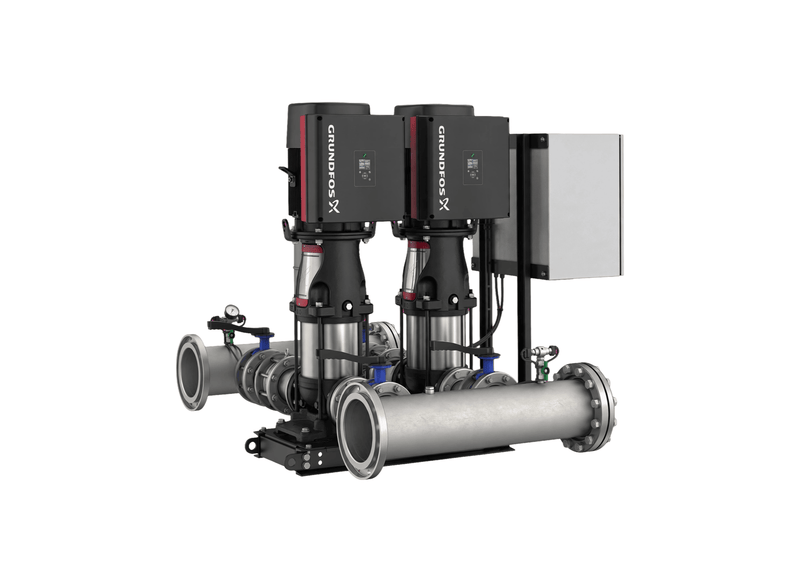

Grundfos Hydro Multi-E 2 x CRE 45-2 Three Phase 2 x 15kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Sites such as high-occupancy towers where every level opens its taps inside the same half hour require consistent pressure regardless of demand fluctuation; the Hydro Multi-E 2 CRE45-2 achieves this with two CRE 45-2 pumps operating in parallel. Part number 93328663 provides the complete tested package in a single order line.
The system supports flow rates up to 2384 L/min. It can develop up to 76 metres of head for dependable pressure boosting. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 150 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 51.6 A, with IP54 motor protection and a 10 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Applications include high-rise apartments, mixed-use commercial buildings and schools and universities. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- No external controller required: Multi-Master redundancy lets either pump assume the controlling role.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Each main pump is rated 15 kW (P2), so per-pump draw scales down as speed follows demand.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Stainless steel manifolds provide two 150 mm manifold connections ready for pipework.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Two Grundfos CRE 45-2 vertical multistage pumps run in parallel on one common base frame.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
What's Included
- 2 x Grundfos CRE 45-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 2384 L/Min |
| Max Head | 76 m |
| Power | 2 x 15 kW / 415v |
| Rated Current | 2 x 51.6 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which warranty protection and technical support covers this packaged booster assembly?
The complete factory package of the Grundfos Hydro Multi-E 2 CRE45-2 U2 A-A-I-I-D is supported by a Grundfos two-year manufacturer warranty encompassing the base skid, motors, and wet ends.
What volumetric liquid delivery can this multi pump package supply for building water distribution?
Meeting high volumetric requirements, the Hydro Multi-E 2 CRE45-2 achieves a maximum water delivery capacity of 2384 L/min through coordinated parallel pump operation.
How are the pump wet ends powered and electronically controlled during variable demand hours?
Mechanical drive on the Hydro-Multi-E-2-CRE45-2 features two inverter-controlled IE5 permanent-magnet MGE electric motors producing 15 kW per pump, powered by a 3 x 380-415 V connection for energy-optimised water delivery.
What vertical discharge head and system pressure rating does this packaged booster unit generate?
Discharge pressure performance allows the Hydro Multi E 2 CRE45 2 to achieve up to 76 m maximum dynamic head under a 10 bar rated system pressure.
Which pipe connection fittings and check valves are assembled onto this packaged booster skid?
Interconnecting pipework on the 2 CRE45-2 (Hydro Multi-E) features factory-fitted DN 150 stainless steel suction and discharge manifolds fitted with non-return check valves and isolation valves.
