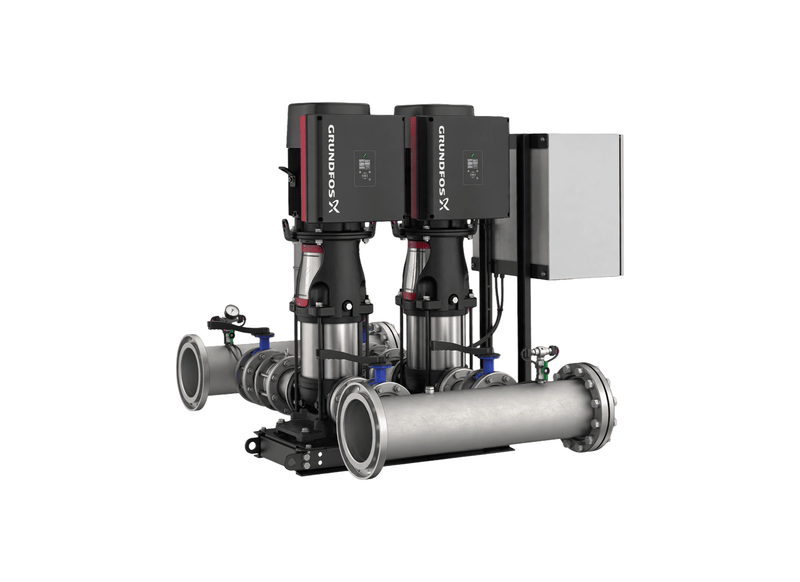

Grundfos Hydro Multi-E 2 x CRE 45-3 Three Phase 2 x 18.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
For apartment towers, hotel plant rooms and school wings with real morning demand spikes, a factory-assembled Hydro Multi-E 2 CRE45-3 package provides a well-matched solution, with two CRE 45-3 pumps staged against the demand curve. Specify part number 93320252 and the whole set lands tested, assembled and ready for pipework.
Flow capacity reaches 2367 L/min. Up to 113 metres of head is available to maintain pressure as demand changes. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Factory assembled on a common base, the set combines stainless steel pipework, two 150 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with a rated current of 64 A. Motors are protected to IP54, while maximum system pressure is 16 bar. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Typical duty sits with high-rise apartments, hotel plant rooms and hospitals. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Rated for 16 bar system pressure; motors carry IP54 protection.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The system protects its pumps against dry running if the incoming supply is lost.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- The stainless steel manifold assembly is supplied with two 150 mm manifold connections.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- The system pairs two CRE 45-3 pumps in parallel duty, controlled as a single coordinated system.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Each main pump is rated 18.5 kW (P2), so per-pump draw scales down as speed follows demand.
What's Included
- 2 x Grundfos CRE 45-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 2367 L/Min |
| Max Head | 113 m |
| Power | 2 x 18.5 kW / 415v |
| Rated Current | 2 x 64 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under peak consumption conditions, what water volume does this packaged booster set deliver?
Operating across its factory curve, the Grundfos Hydro Multi-E 2 CRE45-3 U2 A-A-I-I-D discharges up to 2367 L/min of clean water to maintain consistent line pressure during peak demand cycles.
How are the parallel centrifugal pumps powered and speed regulated across variable flow demands?
Each centrifugal stage of the Hydro Multi-E 2 CRE45-3 is driven by a 18.5 kW IE5 permanent-magnet MGE electric motor running on 3 x 380-415 V power, utilizing built-in variable speed drives to adjust output dynamically.
How much total dynamic elevation head does this parallel centrifugal booster assembly deliver?
Elevating water across multi-level pipework, the Hydro-Multi-E-2-CRE45-3 maintains up to 113 m total dynamic head with an overall 16 bar maximum operating limit.
Which manifold connection sizes and isolation valves are supplied on this packaged booster skid?
Plumbed for rapid site installation, the Hydro Multi E 2 CRE45 3 includes DN 150 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
What factory warranty period and support terms cover this multi pump booster unit?
Grundfos provides two-year manufacturer warranty coverage on the 2 CRE45-3 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
