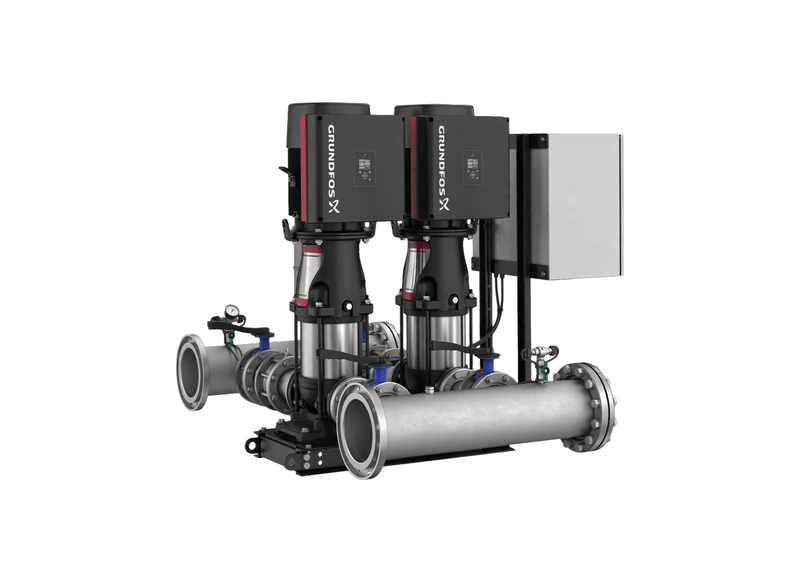

Grundfos Hydro Multi-E 2 x CRE 45-4-2 Three Phase 2 x 22kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Processing plants and multi-storey carparks whose boosters never truly idle get a constant-pressure answer in this Grundfos Hydro Multi-E 2 CRE45-4-2 set. One factory-tested package replaces a shelf of loose components; order part number 93320256 to put it on site.
It handles flows up to 2365 L/min across the system. The pumps can develop up to 136 metres of head when pressure demand increases. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Factory assembled on a common base, the set combines stainless steel pipework, two 150 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with a rated current of 75.4 A. Motors are protected to IP54, while maximum system pressure is 16 bar. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Typical duty sits with high-rise apartments, hospitals and schools and universities. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Stainless steel manifolds provide two 150 mm manifold connections ready for pipework.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- At P2 each main pump is 22 kW, covering the duty without oversizing the frame.
- Two Grundfos CRE 45-4 vertical multistage pumps run in parallel on one common base frame.
- No external controller required: Multi-Master redundancy lets either pump assume the controlling role.
- The system protects its pumps against dry running if the incoming supply is lost.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
What's Included
- 2 x Grundfos CRE 45-4 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 2365 L/Min |
| Max Head | 136 m |
| Power | 2 x 22 kW / 415v |
| Rated Current | 2 x 75.4 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electric motor power and supply voltage powers each pump in this packaged booster set?
Electronic speed regulation across the Grundfos Hydro Multi-E 2 CRE45-4-2 U2 A-A-I-I-D is provided by two IE5 permanent-magnet MGE electric motors rated at 22 kW apiece on 3 x 380-415 V power, modulating motor rpm according to demand.
Which system working pressure and maximum vertical head does this multi stage booster unit produce?
Hydraulic elevation capability on the Hydro Multi-E 2 CRE45-4-2 generates up to 136 m total dynamic head while supporting a maximum operating pressure rating of 16 bar.
How are the parallel centrifugal stages connected to common suction and discharge manifolds?
Common manifolding across the Hydro-Multi-E-2-CRE45-4-2 utilizes DN 150 stainless steel suction and discharge pipework with integrated non-return valves and isolating ball valves.
How is this multi stage booster skid protected under manufacturer warranty terms?
Investment protection for the Hydro Multi E 2 CRE45 4 2 features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
How much discharge water flow does this variable speed booster unit supply across the distribution ringmain?
For high-demand distribution pipework, the 2 CRE45-4-2 (Hydro Multi-E) delivers a peak water displacement rate of 2365 L/min across its parallel multistage pump assembly.
