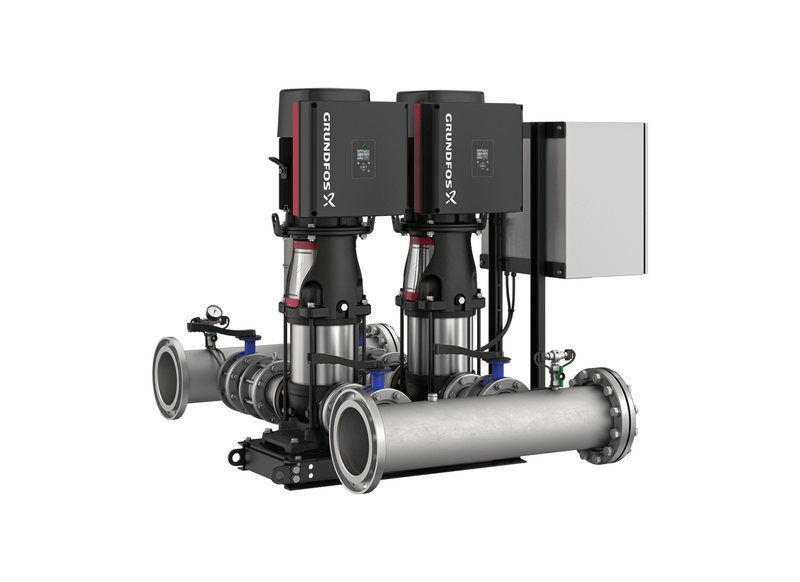

Grundfos Hydro Multi-E 2 x CRE 45-4 Three Phase 2 x 26kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Convention centres and exhibition halls subject to rapid amenity surge periods depend on the Hydro Multi-E 2 CRE 45-4. Staged parallel operation between two CRE 45-4 pumps maintains consistent line pressure without erratic cycling. Quote part number 93320254 to have the entire pre-commissioned assembly delivered to site.
The multistage assembly develops flow rates up to 2333 L/min under full draw. Up to 150.6 metres of shut-off head is generated to overcome vertical riser friction. Advanced Multi-Master firmware shares operating duties directly between pump heads, providing immediate fail-safe handover if an individual drive is isolated.
Factory aligned on a shared steel chassis, the set combines stainless steel pipework, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 87.6 A (2 x 43.8 A per pump). Motors carry IP54 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
Installation sites frequently encompass food production facilities, logistics distribution hubs and aquatic sports centres, where automated pump rotation protects service life. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- The system protects its pumps against dry running if the incoming supply is lost.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Two Grundfos CRE 45-4 pumps share the boosting work in parallel.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Rated 26 kW (P2) on every main pump in the frame.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
What's Included
- 2 x Grundfos CRE 45-4 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 2333 L/Min |
| Max Head | 150 m |
| Power | 2 x 26 kW / 415v |
| Rated Current | 2 x 43.8 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What factory warranty period backs this variable speed booster system?
Grundfos provides two-year manufacturer warranty coverage on the Grundfos Hydro Multi-E 2 CRE45-4 U2 A-A-I-I-D (part number 93320254), securing the complete multi-pump package, manifolds, and integrated electronics.
Under peak consumption conditions, what water volume does this packaged booster set deliver?
Hydraulic output from the Hydro Multi-E 2 CRE45-4 provides a peak volumetric transfer capacity of 2333 L/min during high consumption.
How are the parallel centrifugal pumps powered and speed regulated across variable flow demands?
High-efficiency motor packages on the Hydro-Multi-E-2-CRE45-4 incorporate two 26 kW IE5 permanent-magnet MGE electric drives wired for 3 x 380-415 V operation.
How much total dynamic elevation head does this parallel centrifugal booster assembly deliver?
Dynamic head performance from the Hydro Multi E 2 CRE45 4 attains a vertical elevation of up to 150.6 m within an 16 bar pressure rating.
Which manifold connection sizes and isolation valves are supplied on this packaged booster skid?
Factory header connections on the 2 CRE45-4 (Hydro Multi-E) provide DN 150 stainless steel suction and discharge manifolds with individual pump isolating valves and non-return check valves.
