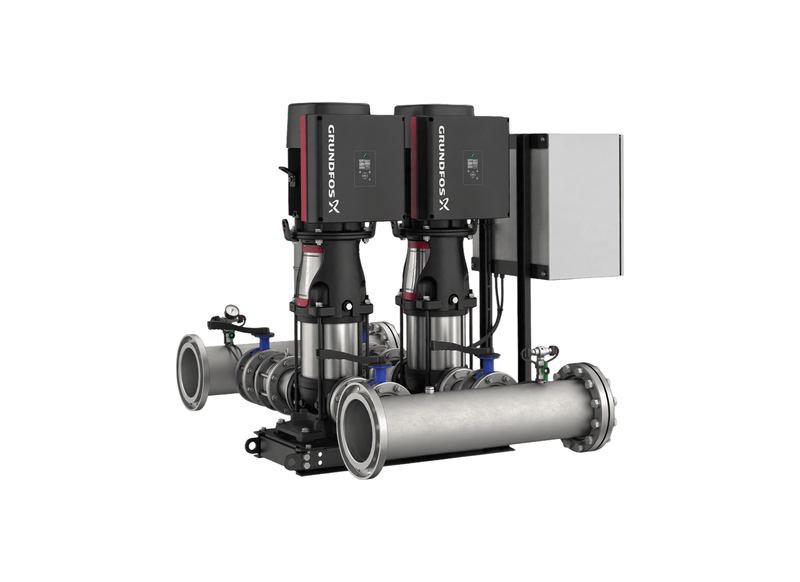

Grundfos Hydro Multi-E 2 x CRE 64-2-1 Three Phase 2 x 18.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
In stadium amenities and convention centres that fill to the brim in short bursts, the simultaneous demand of the morning peak places heavy loads on the supply; the Hydro Multi-E 2 CRE64-2-1 answers with two CRE 64-2 pumps operating in parallel. Part number 93320264 provides the complete tested package in a single order line.
This set provides up to 3474 L/min of flow capacity. Variable-speed operation can develop up to 74 metres of head where required. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 150 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 64 A, with IP54 motor protection and a 10 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Its home ground covers mixed-use commercial buildings, industrial process supply and hospitals. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- The system protects its pumps against dry running if the incoming supply is lost.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- The stainless steel manifold assembly is supplied with two 150 mm manifold connections.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Rated for 10 bar system pressure; motors carry IP54 protection.
- Each main pump is rated 18.5 kW (P2), so per-pump draw scales down as speed follows demand.
- Two Grundfos CRE 64-2 pumps share the boosting work in parallel.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
What's Included
- 2 x Grundfos CRE 64-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3474 L/Min |
| Max Head | 74 m |
| Power | 2 x 18.5 kW / 415v |
| Rated Current | 2 x 64 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is variable speed motor propulsion delivered across each pump wet end on this skid?
Electronic speed regulation across the Grundfos Hydro Multi-E 2 CRE64-2-1 U2 A-A-I-I-D is provided by two IE5 permanent-magnet MGE electric motors rated at 18.5 kW apiece on 3 x 380-415 V power, modulating motor rpm according to demand.
What elevation lift capacity and line pressure does this packaged booster assembly maintain?
Hydraulic elevation capability on the Hydro Multi-E 2 CRE64-2-1 generates up to 74 m total dynamic head while supporting a maximum operating pressure rating of 10 bar.
Which stainless steel manifold connections and valve hardware are provided on this booster set?
Common manifolding across the Hydro-Multi-E-2-CRE64-2-1 utilizes DN 150 stainless steel suction and discharge pipework with integrated non-return valves and isolating ball valves.
Which factory warranty coverage and service terms apply to this booster assembly?
Investment protection for the Hydro Multi E 2 CRE64 2 1 features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
What total water pumping volume can this packaged multi pump assembly achieve at peak system duty?
For high-demand distribution pipework, the 2 CRE64-2-1 (Hydro Multi-E) delivers a peak water displacement rate of 3474 L/min across its parallel multistage pump assembly.
