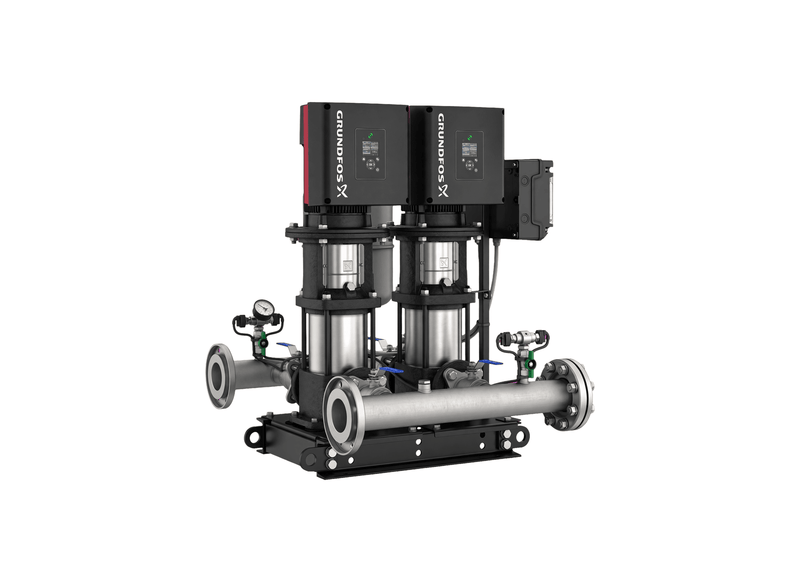

Grundfos Hydro Multi-E 2 x CRE 95-1 Three Phase 2 x 11kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Distribution depots and cold stores running continuous hose-down stations get a constant-pressure answer in this Grundfos Hydro Multi-E 2 CRE95-1 set. The complete system ships factory assembled and tested under part number 93328669.
It handles flows up to 4641 L/min across the system. The pumps can develop up to 43 metres of head when pressure demand increases. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 200 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 39.2 A. The motors have IP54 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Applications include hospitals, aged-care complexes and mixed-use commercial buildings. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- At P2 each main pump is 11 kW, covering the duty without oversizing the frame.
- Rated for 10 bar system pressure; motors carry IP54 protection.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- The stainless steel manifold assembly is supplied with two 200 mm manifold connections.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- The system pairs two CRE 95-1 pumps in parallel duty, controlled as a single coordinated system.
- No external controller required: Multi-Master redundancy lets either pump assume the controlling role.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
What's Included
- 2 x Grundfos CRE 95-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 4641 L/Min |
| Max Head | 43 m |
| Power | 2 x 11 kW / 415v |
| Rated Current | 2 x 39.2 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which fluid delivery volume does this parallel booster assembly displace during high demand hours?
Operating across its factory curve, the Grundfos Hydro Multi-E 2 CRE95-1 U2 A-A-I-I-DU discharges up to 4641 L/min of clean water to maintain consistent line pressure during peak demand cycles.
What motor propulsion and electronic speed control system drives this multi pump booster skid?
Each centrifugal stage of the Hydro Multi-E 2 CRE95-1 is driven by a 11 kW IE5 permanent-magnet MGE electric motor running on 3 x 380-415 V power, utilizing built-in variable speed drives to adjust output dynamically.
Under peak network pressure requirements, what dynamic head does this booster unit maintain?
Elevating water across multi-level pipework, the Hydro-Multi-E-2-CRE95-1 maintains up to 43 m total dynamic head with an overall 10 bar maximum operating limit.
How are the common suction and discharge headers arranged across the parallel pump set?
Plumbed for rapid site installation, the Hydro Multi E 2 CRE95 1 includes DN 200 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
What warranty coverage backs this complete factory assembled booster assembly?
Grundfos provides two-year manufacturer warranty coverage on the 2 CRE95-1 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
