SKU: 93328671

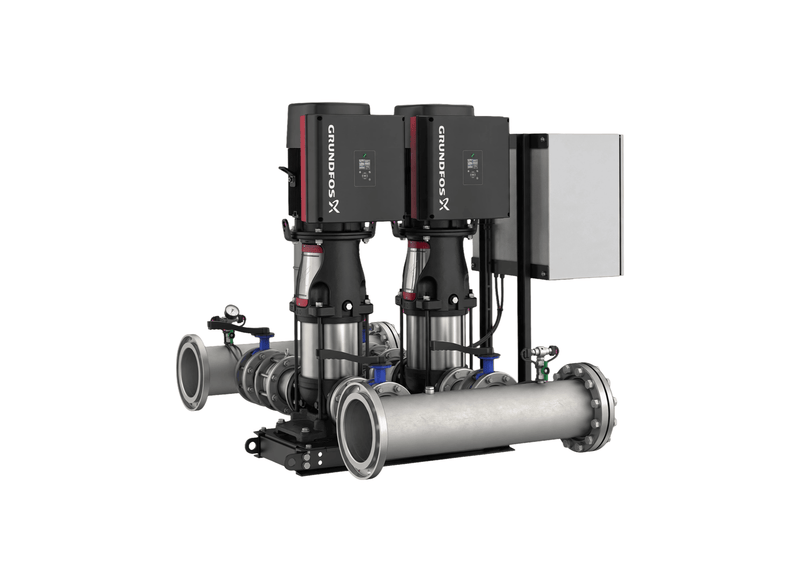

Grundfos Hydro Multi-E 2 x CRE 95-1 Three Phase 2 x 15kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Hydro Multi-E 2 CRE95-1 is a proven fit for processing plants and multi-storey carparks whose boosters never truly idle, with two Grundfos CRE 95-1 pumps staged automatically as demand varies. The complete system ships factory assembled and tested under part number 93328671.
It handles flows up to 5004 L/min across the system. The pumps can develop up to 45 metres of head when pressure demand increases. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 200 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 51.6 A, with IP54 motor protection and a 10 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Typical duty sits with hotel plant rooms, aged-care complexes and schools and universities. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Two Grundfos CRE 95-1 pumps share the boosting work in parallel.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Stainless steel manifolds provide two 200 mm manifold connections ready for pipework.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Each main pump is rated 15 kW (P2), so per-pump draw scales down as speed follows demand.
- Rated for 10 bar system pressure; motors carry IP54 protection.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
What's Included
- 2 x Grundfos CRE 95-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 5004 L/Min |
| Max Head | 45 m |
| Power | 2 x 15 kW / 415v |
| Rated Current | 2 x 51.6 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which permanent magnet or inverter electric motors power this parallel pump assembly?
Electronic speed regulation across the Grundfos Hydro Multi-E 2 CRE95-1 U2 A-A-I-I-D is provided by two IE5 permanent-magnet MGE electric motors rated at 15 kW apiece on 3 x 380-415 V power, modulating motor rpm according to demand.
How much total dynamic head does this multi pump booster package generate under peak demand?
Hydraulic elevation capability on the Hydro Multi-E 2 CRE95-1 generates up to 45 m total dynamic head while supporting a maximum operating pressure rating of 10 bar.
What plumbing manifold dimensions and isolating valves are factory assembled on this package?
Common manifolding across the Hydro-Multi-E-2-CRE95-1 utilizes DN 200 stainless steel suction and discharge pipework with integrated non-return valves and isolating ball valves.
What manufacturer warranty protection backs the complete packaged booster skid?
Investment protection for the Hydro Multi E 2 CRE95 1 features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
Under maximum draw periods, what fluid delivery volume does this parallel booster package maintain?
For high-demand distribution pipework, the 2 CRE95-1 (Hydro Multi-E) delivers a peak water displacement rate of 5004 L/min across its parallel multistage pump assembly.
