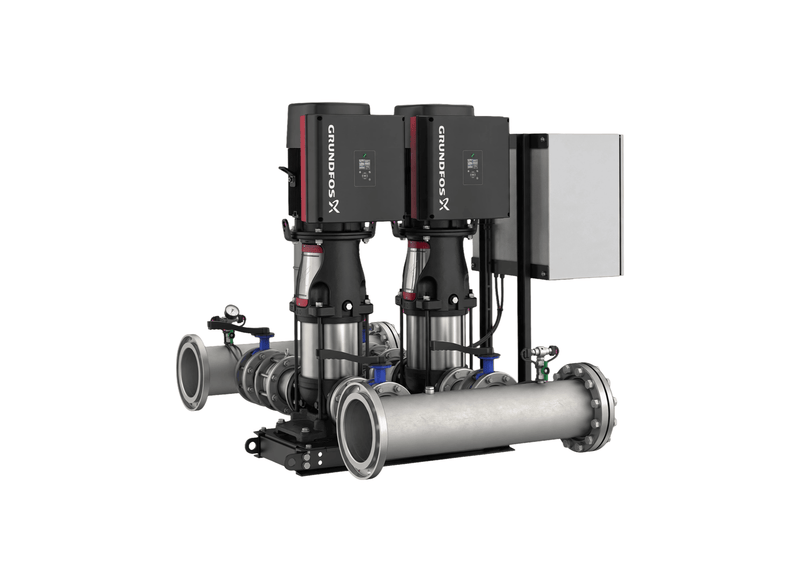

Grundfos Hydro Multi-E 2 x CRE 95-2-1 Three Phase 2 x 22kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Sites such as high-occupancy towers where every level opens its taps inside the same half hour require consistent pressure regardless of demand fluctuation; the Hydro Multi-E 2 CRE95-2-1 achieves this with two CRE 95-2 pumps operating in parallel. One factory-tested package replaces a shelf of loose components; order part number 93320278 to put it on site.
The system supports flow rates up to 5004 L/min. It can develop up to 80 metres of head for dependable pressure boosting. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 200 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 75.4 A, with IP54 motor protection and a 10 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Expect it on schools and universities and industrial process supply sites, plus mixed-use commercial buildings duties. It provides clean-water pressure boosting for both new plant rooms and refits.
Features
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- At P2 each main pump is 22 kW, covering the duty without oversizing the frame.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- The stainless steel manifold assembly is supplied with two 200 mm manifold connections.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- No external controller required: Multi-Master redundancy lets either pump assume the controlling role.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Two Grundfos CRE 95-2 pumps share the boosting work in parallel.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- The system protects its pumps against dry running if the incoming supply is lost.
What's Included
- 2 x Grundfos CRE 95-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 5004 L/Min |
| Max Head | 80 m |
| Power | 2 x 22 kW / 415v |
| Rated Current | 2 x 75.4 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the inlet and discharge connections configured across the parallel pump manifolding?
Header plumbing on the Grundfos Hydro Multi-E 2 CRE95-2-1 U2 A-A-I-I-D provides DN 200 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
Which factory warranty duration and support terms apply to this packaged booster skid?
Protection on the Hydro Multi-E 2 CRE95-2-1 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
What total water volume can this multi pump booster set discharge to pressurised distribution mains?
Under maximum network draw, the Hydro-Multi-E-2-CRE95-2-1 supplies a peak fluid flow rate of up to 5004 L/min across its variable speed centrifugal stages.
Which electric motor configuration and voltage specification powers this packaged booster set?
Propulsion across the Hydro Multi E 2 CRE95 2 1 is supplied by two IE5 permanent-magnet MGE electric motors rated at 22 kW each, operating on a 3 x 380-415 V electrical supply with integrated frequency converters for precise pressure control.
What dynamic elevation head and line pressure rating applies to this packaged booster assembly?
For vertical pressure boosting, the 2 CRE95-2-1 (Hydro Multi-E) produces up to 80 m total elevation head with a 10 bar maximum working pressure envelope.
