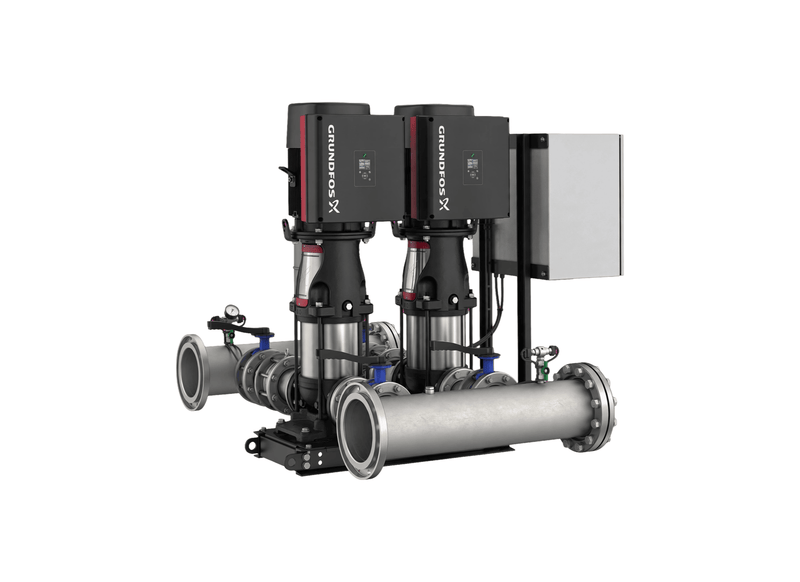

Grundfos Hydro Multi-E 2 x CRE 95-2-2 Three Phase 2 x 18.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
In processing plants and multi-storey carparks whose boosters never truly idle, the simultaneous demand of the morning peak places heavy loads on the supply; the Hydro Multi-E 2 CRE95-2-2 answers with two CRE 95-2 pumps operating in parallel. The complete system ships factory assembled and tested under part number 93320276.
It handles flows up to 5004 L/min across the system. The pumps can develop up to 71 metres of head when pressure demand increases. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 200 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 64 A, with IP54 motor protection and a 10 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Its home ground covers hotel plant rooms, industrial process supply and hospitals. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- The system protects its pumps against dry running if the incoming supply is lost.
- The stainless steel manifold assembly is supplied with two 200 mm manifold connections.
- Two Grundfos CRE 95-2 vertical multistage pumps run in parallel on one common base frame.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Rated 18.5 kW (P2) on every main pump in the frame.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
What's Included
- 2 x Grundfos CRE 95-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 5004 L/Min |
| Max Head | 71 m |
| Power | 2 x 18.5 kW / 415v |
| Rated Current | 2 x 64 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which maximum dynamic head does this parallel booster set achieve during full duty pumping?
Under peak line requirements, the Grundfos Hydro Multi-E 2 CRE95-2-2 U2 A-A-I-I-D delivers a maximum vertical head of 71 m and accommodates working system pressures up to 10 bar.
Which manifold connection sizes and fluid isolation valves are factory fitted on this booster unit?
Factory pipework configuration on the Hydro Multi-E 2 CRE95-2-2 incorporates DN 200 stainless steel manifolds, complete with individual pump isolating valves and line non-return valves.
Which factory warranty terms protect the pumps and integrated drive electronics?
Factory backing for the Hydro-Multi-E-2-CRE95-2-2 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
How much water delivery can this variable frequency booster system discharge into the header pipework?
At full operational capacity, the Hydro Multi E 2 CRE95 2 2 provides up to 5004 L/min total water throughput to satisfy heavy facility consumption requirements.
What electric motor propulsion package drives each parallel pump in this booster assembly?
Power for the 2 CRE95-2-2 (Hydro Multi-E) is delivered via two high-efficiency IE5 permanent-magnet MGE electric motors of 18.5 kW each, wired for a 3 x 380-415 V electrical supply with built-in speed regulation.
