Roll over image to zoom
SKU: 93320280

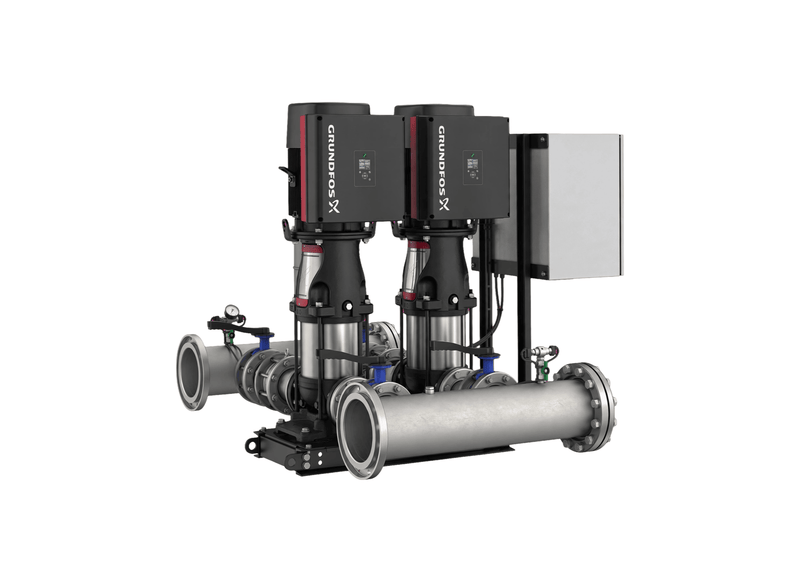

Grundfos Hydro Multi-E 2 x CRE 95-2 Three Phase 2 x 26kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Hydro Multi-E 2 CRE95-2 is a proven fit for high-occupancy towers where every level opens its taps inside the same half hour, with two Grundfos CRE 95-2 pumps staged automatically as demand varies. Part number 93320280 provides the complete tested package in a single order line.
It handles flows up to 4970 L/min across the system. The pumps can develop up to 89 metres of head when pressure demand increases. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 200 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 87.6 A. The motors have IP54 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Its home ground covers hospitals, hotel plant rooms and mixed-use commercial buildings. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Two Grundfos CRE 95-2 pumps share the boosting work in parallel.
- Rated for 10 bar system pressure; motors carry IP54 protection.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- The system protects its pumps against dry running if the incoming supply is lost.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- The stainless steel manifold assembly is supplied with two 200 mm manifold connections.
- At P2 each main pump is 26 kW, covering the duty without oversizing the frame.
What's Included
- 2 x Grundfos CRE 95-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 4970 L/Min |
| Max Head | 89 m |
| Power | 2 x 26 kW / 415v |
| Rated Current | 2 x 87.6 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which manufacturer warranty terms support this variable speed booster package?
The complete factory package of the Grundfos Hydro Multi-E 2 CRE95-2 U2 A-A-I-I-D is supported by a Grundfos two-year manufacturer warranty encompassing the base skid, motors, and wet ends.
What peak water delivery capacity does this multi pump booster assembly maintain across peak demand?
Meeting high volumetric requirements, the Hydro Multi-E 2 CRE95-2 achieves a maximum water delivery capacity of 4970 L/min through coordinated parallel pump operation.
How is mechanical power delivered and electronically regulated across this multi pump booster skid?
Mechanical drive on the Hydro-Multi-E-2-CRE95-2 features two inverter-controlled IE5 permanent-magnet MGE electric motors producing 26 kW per pump, powered by a 3 x 380-415 V connection for energy-optimised water delivery.
What dynamic elevation head does this variable frequency booster package achieve on the mains?
Discharge pressure performance allows the Hydro Multi E 2 CRE95 2 to achieve up to 89 m maximum dynamic head under a 10 bar rated system pressure.
Which manifold connection ports and isolating ball valves are factory fitted on this unit?
Interconnecting pipework on the 2 CRE95-2 (Hydro Multi-E) features factory-fitted DN 200 stainless steel suction and discharge manifolds fitted with non-return check valves and isolation valves.
