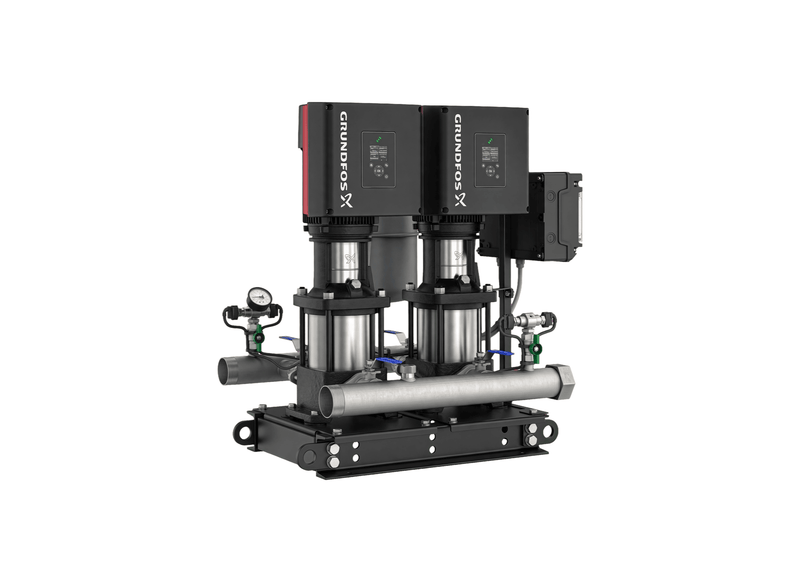

Grundfos Hydro Multi-E 2 x CRNE 10-2 Single Phase 2 x 1.1kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Sites such as mixed-use buildings where a single booster covers retail, offices and apartments require consistent pressure regardless of demand fluctuation; the Hydro Multi-E 2 CRNE 10-2 achieves this with two CRNE 10-2 pumps operating in parallel. Everything is ordered under the single part number 99752278.
This set provides up to 504 L/min of flow capacity. Variable-speed operation can develop up to 28 metres of head where required. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 50 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 1 x 200-240 V at 50 / 60 Hz with a rated current of 12.9 A. The motors have IP55 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Applications include aged-care complexes, hotel plant rooms and industrial process supply. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- Two Grundfos CRNE 10-2 pumps share the boosting work in parallel.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Rated for 10 bar system pressure; motors carry IP55 protection.
- The system protects its pumps against dry running if the incoming supply is lost.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Each main pump is rated 1.1 kW (P2), so per-pump draw scales down as speed follows demand.
- Stainless steel manifolds provide two 50 mm manifold connections ready for pipework.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
What's Included
- 2 x Grundfos CRNE 10-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 504 L/Min |
| Max Head | 28 m |
| Power | 2 x 1.1 kW / 240v |
| Rated Current | 2 x 12.9 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What manufacturer warranty period covers the pumps and electronic drive package?
The complete factory package of the Grundfos Hydro Multi-E 2 CRNE 10-2 U8 A-A-I-I-DU is supported by a Grundfos two-year manufacturer warranty encompassing the base skid, motors, and wet ends.
Which maximum volumetric delivery does this packaged booster system provide for distribution headers?
Meeting high volumetric requirements, the Hydro Multi-E 2 CRNE 10-2 achieves a maximum water delivery capacity of 504 L/min through coordinated parallel pump operation.
How are the centrifugal pumps driven and inverter regulated across variable network demands?
Mechanical drive on the Hydro-Multi-E-2-CRNE-10-2 features two inverter-controlled IE5 permanent-magnet MGE electric motors producing 1.1 kW per pump, powered by a 1 x 200-240 V connection for energy-optimised water delivery.
Under full discharge duty, what maximum elevation head does this packaged booster skid maintain?
Discharge pressure performance allows the Hydro Multi E 2 CRNE 10 2 to achieve up to 28 m maximum dynamic head under a 10 bar rated system pressure.
Which suction and discharge pipe fittings are factory integrated on this packaged booster set?
Interconnecting pipework on the 2 CRNE 10-2 (Hydro Multi-E) features factory-fitted R 2 1/2 stainless steel suction and discharge manifolds fitted with non-return check valves and isolation valves.
