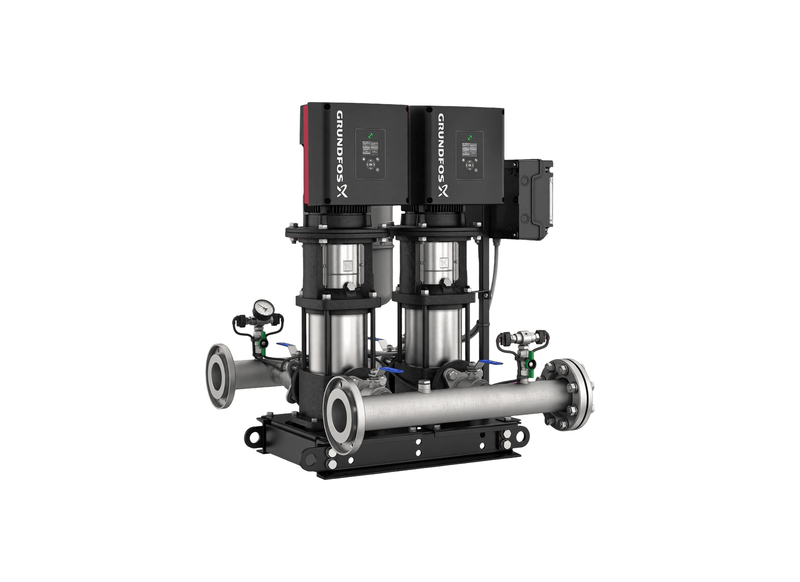

Grundfos Hydro Multi-E 2 x CRNE 20-3 Three Phase 2 x 4kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
For gymnasiums, aquatic centres and student housing running wall-to-wall showers, a factory-assembled Hydro Multi-E 2 CRNE 20-3 package provides a well-matched solution, with two CRNE 20-3 pumps staged against the demand curve. One factory-tested package replaces a shelf of loose components; order part number 99752365 to put it on site.
Flow capacity reaches 1063 L/min. Up to 61 metres of head is available to maintain pressure as demand changes. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Factory assembled on a common base, the set combines stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with a rated current of 16.2 A. Motors are protected to IP55, while maximum system pressure is 10 bar. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Its home ground covers mixed-use commercial buildings, schools and universities and hotel plant rooms. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- Rated for 10 bar system pressure; motors carry IP55 protection.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Rated 4 kW (P2) on every main pump in the frame.
- Stainless steel manifolds provide two 80 mm manifold connections ready for pipework.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Two Grundfos CRNE 20-3 pumps share the boosting work in parallel.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
What's Included
- 2 x Grundfos CRNE 20-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 1063 L/Min |
| Max Head | 61 m |
| Power | 2 x 4 kW / 415v |
| Rated Current | 2 x 16.2 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much discharge volume can this vertical multistage booster assembly provide to the facility?
Operating across its factory curve, the Grundfos Hydro Multi-E 2 CRNE 20-3 U2 A-A-I-I-DU discharges up to 1063 L/min of clean water to maintain consistent line pressure during peak demand cycles.
What electrical drive system and motor rating powers each pump within this packaged booster unit?
Each centrifugal stage of the Hydro Multi-E 2 CRNE 20-3 is driven by a 4 kW IE5 permanent-magnet MGE electric motor running on 3 x 380-415 V power, utilizing built-in variable speed drives to adjust output dynamically.
Which maximum system working pressure and vertical lift does this booster assembly deliver?
Elevating water across multi-level pipework, the Hydro-Multi-E-2-CRNE-20-3 maintains up to 61 m total dynamic head with an overall 10 bar maximum operating limit.
How are the suction and discharge pipe headers valved and isolated across this booster package?
Plumbed for rapid site installation, the Hydro Multi E 2 CRNE 20 3 includes DN 80 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
Which factory warranty terms and support provisions apply to this packaged booster set?
Grundfos provides two-year manufacturer warranty coverage on the 2 CRNE 20-3 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
