SKU: 93368425

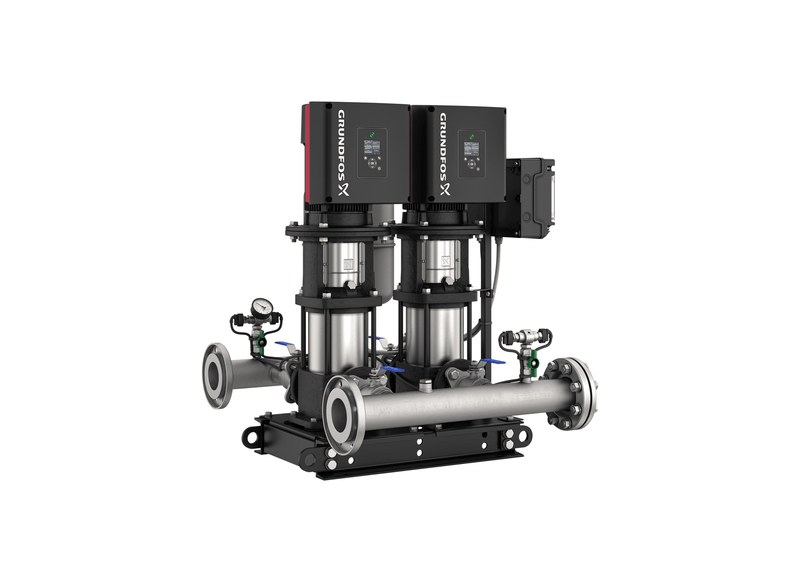

Grundfos Hydro Multi-E 2 x CRNE 45-2-2 Three Phase 2 x 7.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Airport terminal concourses managing non-stop passenger restroom flows rely on the Hydro Multi-E 2 CRNE 45-2-2. Two Grundfos CRNE 45-2-2 multistage pumps work in unison on the base frame, modulating rotational speed to follow the facility draw curve. Everything is ordered under the single manufacturer part number 93368425.
Under peak amenity loading, total throughput reaches up to 2333 L/min. The vertical stage assembly can build up to 59.8 metres of head for steep elevations. Integrated Multi-Master intelligence coordinates the pumps without requiring an external control panel, ensuring automatic role swapping and uninterrupted pressure stabilization.
Delivered factory-tested on an integrated chassis, the system includes stainless steel manifolds, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 51.6 A (2 x 25.8 A per pump). Motors carry IP54 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
The booster system is well adapted to mixed-use commercial buildings, corporate office towers and shopping centres, managing varying daily occupancy levels. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Two Grundfos CRNE 45-2-2 pumps share the boosting work in parallel.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- The system protects its pumps against dry running if the incoming supply is lost.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
- Each main pump is rated 7.5 kW (P2), so per-pump draw scales down as speed follows demand.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
What's Included
- 2 x Grundfos CRNE 45-2-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 2333 L/Min |
| Max Head | 59 m |
| Power | 2 x 7.5 kW / 415v |
| Rated Current | 2 x 25.8 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much total dynamic elevation head does this vertical multistage booster unit achieve?
Elevating water across multi-level pipework, the Grundfos Hydro Multi-E 2 CRNE45-2-2 U2 A-A-I-I-DU (part number 93368425) maintains up to 59.8 m total dynamic head with an overall 10 bar operating limit.
What stainless steel manifold sizing and valve equipment is factory assembled on this skid?
Hydraulic header plumbing across the Hydro Multi-E 2 CRNE45-2-2 incorporates DN 150 stainless steel suction and discharge manifolds with built-in non-return valves and isolating valves.
What manufacturer warranty terms protect this multi-pump booster skid assembly?
Long-term operational backing for the Hydro-Multi-E-2-CRNE45-2-2 includes an authentic Grundfos two-year manufacturer warranty covering the parallel pumps, manifolds, and skid frame.
Under maximum flow conditions, what water delivery volume can this parallel pump unit maintain?
Parallel pump operation enables the Hydro Multi E 2 CRNE45 2 2 to discharge a peak water volume of 2333 L/min into header pipework.
How is variable frequency motor propulsion delivered to each centrifugal wet end on this unit?
Propulsion across the 2 CRNE45-2-2 (Hydro Multi-E) is supplied by two IE5 permanent-magnet MGE electric motors rated at 7.5 kW each on a 3 x 380-415 V electrical supply.
